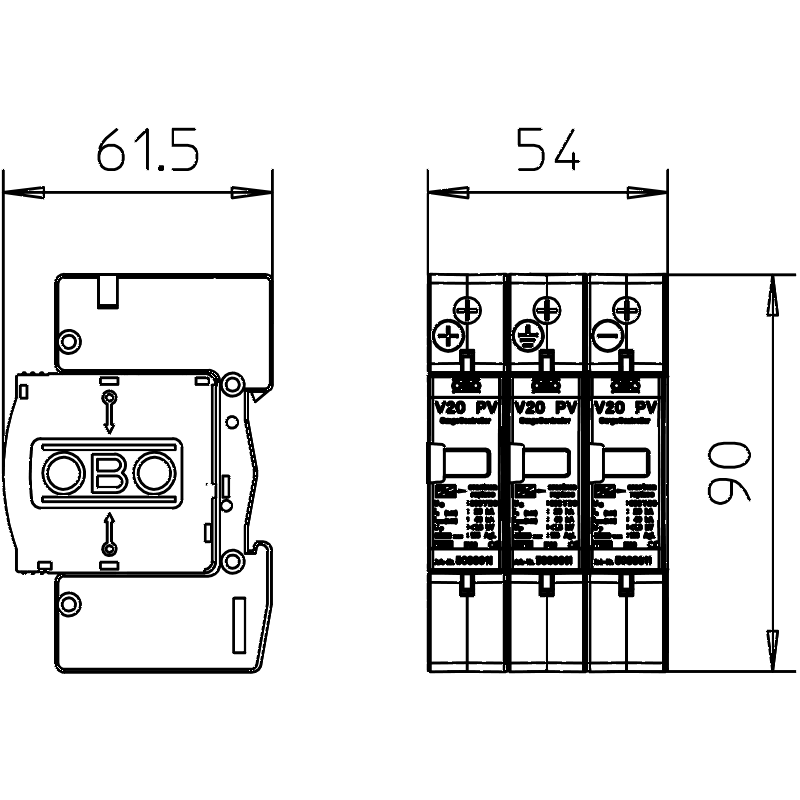

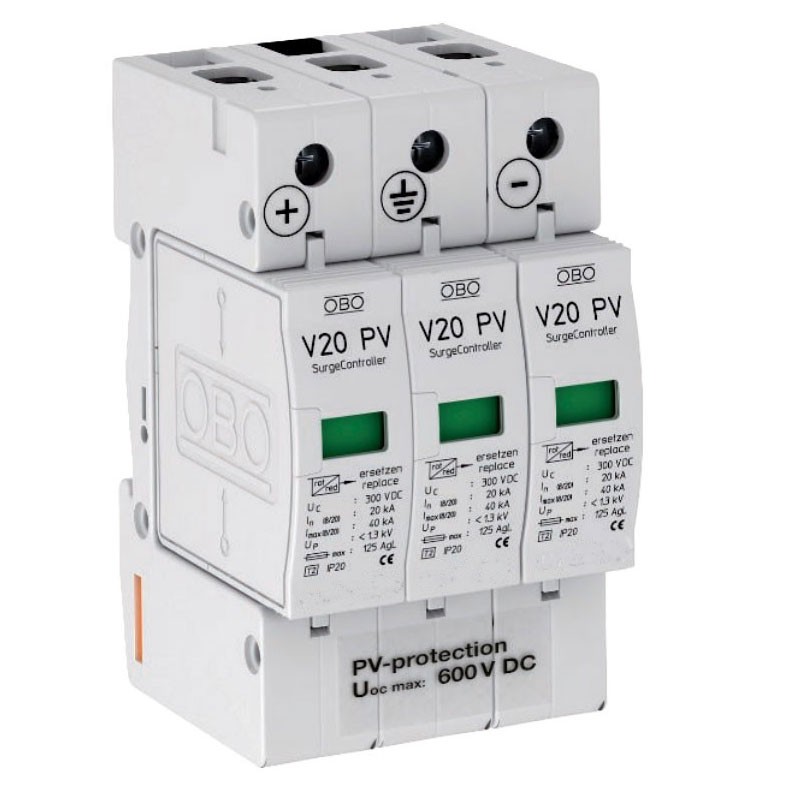

OBO Bettermann V20-C 3PH-600 3-pole type 2 600V DC arrester 5094605
OBO 5094605
4012195708872
OBO Bettermann type 2 surge arrester/limiter for PV photovoltaic systems, with the following characteristics:
- Test class according to EN 61643-11: Type 2
- SPD according to IEC 61643-11: class II
- Maximum continuous voltage DC: 600V
- U max DC: 600V
- Rated discharge current (8/20): 20 kA
- Rated maximum discharge current (8/20 μs): 40.00 kA
- Protection level: < 2.6 kV
- Response time: < 25 ns
- Maximum fuse power: 125 amps
- Temperature range: -40/+80°C
- 3 poles (for photovoltaic system)
- Mounting type: 35 mm DIN rail
Use: photovoltaic systems without or with separate isolated lightning rod
OBO Bettermann V20-C 3PH-600 3-pole type 2 600V DC arrester 5094605
€61.85
Tax included
€61.85
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 151
: 19
Pay in installments with Klarna
The surge arrester is a tool that can be mounted inside the electrical panel, thus upstream of the house system. Its use allows the electrical system on which it is installed to be protected.
The surge arrester will protect the entire system from surges, surges and spikes of electricity that may come from the power line operator, or from atmospheric phenomena such as lightning. These power anomalies can cause serious damage to devices connected to outlets.
A surge of electricity can cause the hardware of a pc to break, or short circuit the boards of smartphones, tablets, and home appliances. In the event that the flow of energy suddenly increases dramatically, human life may even be in danger due to electrocution.
To prevent this from happening, it is therefore advisable to install a surge arrester.
Surge arresters are divided into three classes:
In class 1 we find devices to be used in areas where adverse weather phenomena such as thunderstorms and lightning usually insist (for example, in mountains). In this case the arrester is mounted in the electrical panel and can withstand several surges without being damaged. Discharge occurs in 350 microseconds, so excess energy does not reach the system.
In class 2 are surge arresters that protect the system from surges and spikes that may be caused by maintenance work on the line by the operator.
In class 3, on the other hand, we find those devices that offer even greater protection: in this case, the surge arrester is installed directly at the electrical outlets in the home.
Other technical characteristics:
- Degree of protection: IP20
- Construction size: 3 TE
- TE separation unit (17.5 mm): 3
- Maximum cross-section of flexible conductor (fine wire): 25.00 mm²
- Maximum rigid conductor cross-section (solid/braid wire): 35.00 mm²
- Flexible connection cross-section: 2.50 - 25.00 mm²
- Rigid connection cross section: 2.50 - 35.00 mm²
- Multi-wire connection cross-section: 2.50 - 35.00 mm²
- Signaling on the luminaire: optical
Strengths:
- Complete unit with pluggable varistor limiter with separation unit
- Y-connection for plug-in according to VDE 0100-712 (EN 50539-12)
- Equipotentiality for overvoltage protection according to VDE 0100-443 (IEC 60364- 4-44)
- Current discharge capacity up to 40 kA (8/20) per pole
- Low DC protection level: < 2.6 KV (Uoc max = 600V DC)
- Limiter, pluggable with thermodynamic safety unit optical operation indicator
- Non-blowing encapsulated zinc oxide limiter-varisor for use in distribution boxes
There are no reviews
Data sheet
- Voltage: 600V
- Modules: 3
- Poles: 3P
- Maximum current: 20KA
- Version: 2
- Model: DC
- Circuit Protections: Surge protectors
