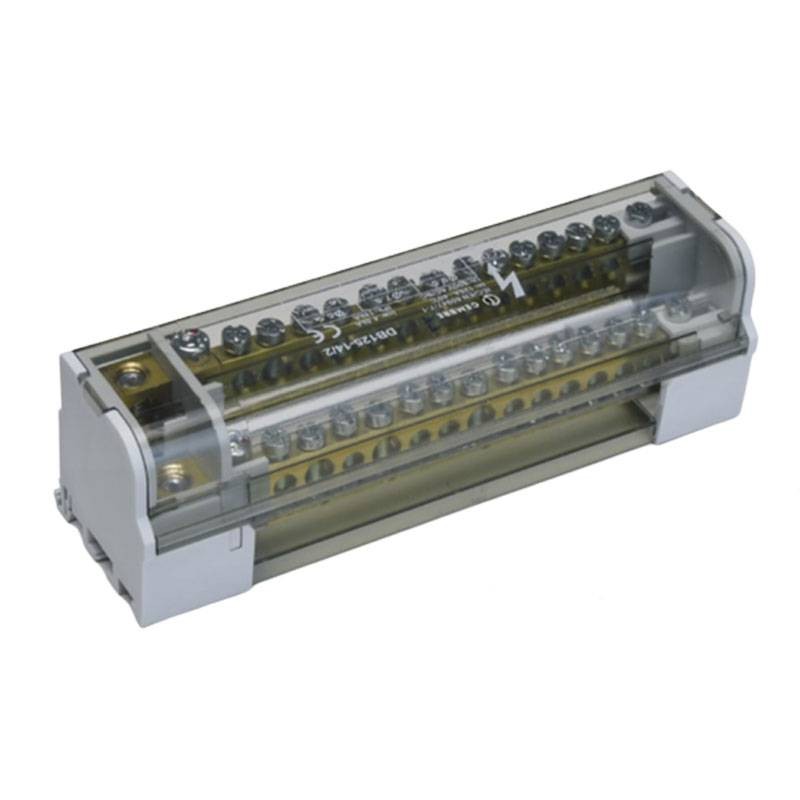

Cembre Bipolar Distributor 125A 2P 13-hole DB125-14/2C
CEM DB125-14/2C
8051316026095
Cembre bipolar divider with the following features:
- Number of inputs: 2
- Number of outputs: 13 (11+2)
- Nominal Section Input mm2: 10÷35 /10÷16
- Nominal Section Outputs mm: (11) 2.5÷6 / 1.5÷6 - (2) 10÷25 / 6÷16
- Input tightening torque (Nm): 6~7
- Output tightening torque (Nm): 2-3
- Nominal Voltage: 500V
- Nominal Current: 125 Amperes
- Nominal Allowable Short Duration Current (Icw): 4.5 kA
- Assumed Maximum Peak Current (Ipk): 18 kA
Cembre Bipolar Distributor 125A 2P 13-hole DB125-14/2C
€9.27
Tax included
€9.27
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 21
: 1
Pay in installments with Klarna
The wide range of connectable cross-sections and small dimensions make DBLOCK dividers ideal for wiring in control and distribution boards on 35 mm DIN rails or on panels using screws.
The inputs and outputs distribute conductors evenly and neatly, making wiring and any subsequent work on all phases easier. Wiring is further facilitated by the input holes with conical invitation. The terminals ensure excellent stability of the connection over time.
Features:
- PA6.6 body and PC cover.
- Self-extinguishing grade (UL 94): V-0
- Brass conductor rods
- Galvanized steel screws with slotted head and Philips
- Independent poles with transparent PC separator between poles
- Lid can be opened
- Built-in 35 mm DIN rail mount
- Input holes with conical invitation for easy introduction of conductors
- CE, UKCA and RoHS certifications
- Tested according to EN 60947-7-1 standard
- Dimensions: 50x130xh50 mm
Data sheet
- Type: Distributors
- Voltage: 500V
- Poles: 2P
- Amps: 125A
