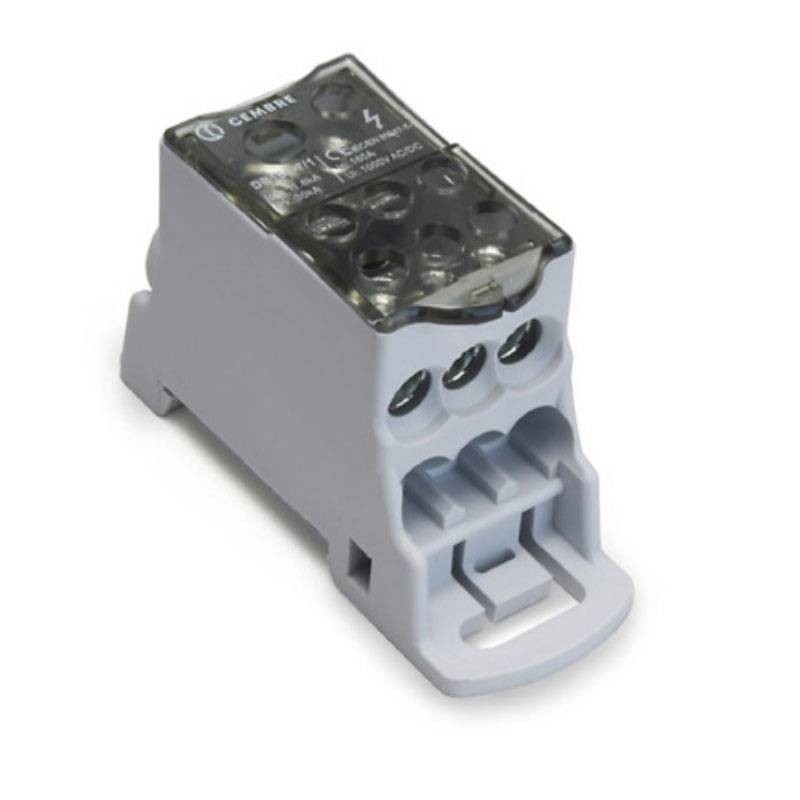

Cembre Unipolar Distributor 160A 8V IP20 DB160-7/1N
CEM DB160-7/1N
8051316038098
Cembre Unipolar distributor with the following characteristics:
- Rated Section Input mm2: 10÷70
- Rated Output Section mm: (6) 2.5÷16 - (1) 6÷16
- Input tightening torque (Nm): 8.5
- Output tightening torque (Nm): 3.5
- Rated Voltage: 1000V
- Rated Current: 160 Amperes
- Rated allowable short-time withstand current (Icw): 11.8kA
- Rated maximum peak current (Ipk): 30 kA
Cembre Unipolar Distributor 160A 8V IP20 DB160-7/1N
€20.26
Tax included
€20.26
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 7
: 1
Pay in installments with Klarna
The wide range of connectable cross-sections and small dimensions make DBLOCK dividers ideal for wiring in control and distribution boards on 35 mm DIN rails or on panels using screws.
The inputs and outputs distribute conductors evenly and neatly, making wiring and any subsequent work on all phases easier. Wiring is further facilitated by the input holes with conical invitation. The terminals ensure excellent stability of the connection over time.
Features:
- PA6.6 body and PC cover.
- Self-extinguishing grade (UL 94): V-0
- Tin-plated brass body
- Galvanized steel screws with hexagon socket head
- Lid can be opened
- Built-in 35 mm DIN rail mount
- Slots for fixing on panels using screws
- Input holes with tapered invitation for easy introduction of conductors
- Certifications CE, RoHS, UKCA, UL
- Tested according to EN 60947-7-1 standard
- IP20 degree of protection
- Dimensions: 77x29xh46 mm
There are no reviews
Data sheet
- Type: Distributors
- Voltage: 1000V
- Poles: 1P
- Degree of protection: IP20
- Amps: 160A
