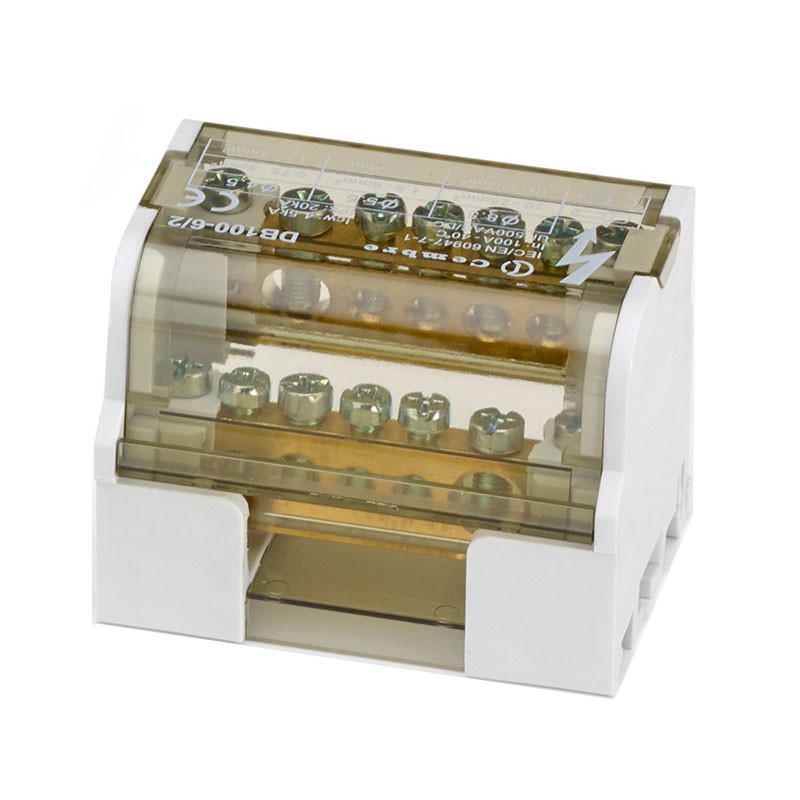

Cembre Bipolar distributor 100A 2 Poles 6 Holes DB100-6/2
CEM DB100-6/2
8051316010414
Cembre 100A 2 Poles Bipolar distributor with 1 input and 6 outputs (3+3).
Cembre Bipolar distributor 100A 2 Poles 6 Holes DB100-6/2
€7.16
Tax included
€7.16
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 49
: 4
Pay in installments with Klarna
The wide range of connectable sections and the small dimensions make DBLOCK dividers ideal for wiring in control and distribution boards on 35 mm DIN rails or on panels using screws.
The inputs and outputs distribute the conductors evenly and tidily, making wiring and any subsequent work on all phases easier. Wiring is further facilitated by the input holes with conical invitation. The terminals guarantee excellent stability of the connection over time.
Nominal section mm2 input: 10-25
Nominal Section mm2 outputs rigid (3)1,5-4 - (3) 2,5-6 / flexible (3) 0,75-4 (3) 1,5-6.
Characteristics:
- Rated voltage 500 V
- Rated current (In) 100 A
- Rated current (Icw) 4,5 kA
- Maximum peak current (Ipk) 20 kA
- DIN connection yes
- Height 50 mm
- Length 50 mm
- Width 64 mm
- Weight 110 g
- Material (Body) Polyamide PA6.6
- Material (Cover) Polycarbonate
- Material (Screws) Zinc plated steel
- Material (Clamps) Brass
- Class UL94 V0.
Solita qualità Cembre. Morsettiera bipolare TOP.
scelta di proposito, quindi nulla da elogiare o penalizzare
Data sheet
- Type: Distributors
- Voltage: 500V
- Poles: 2P
- Amps: 100A
