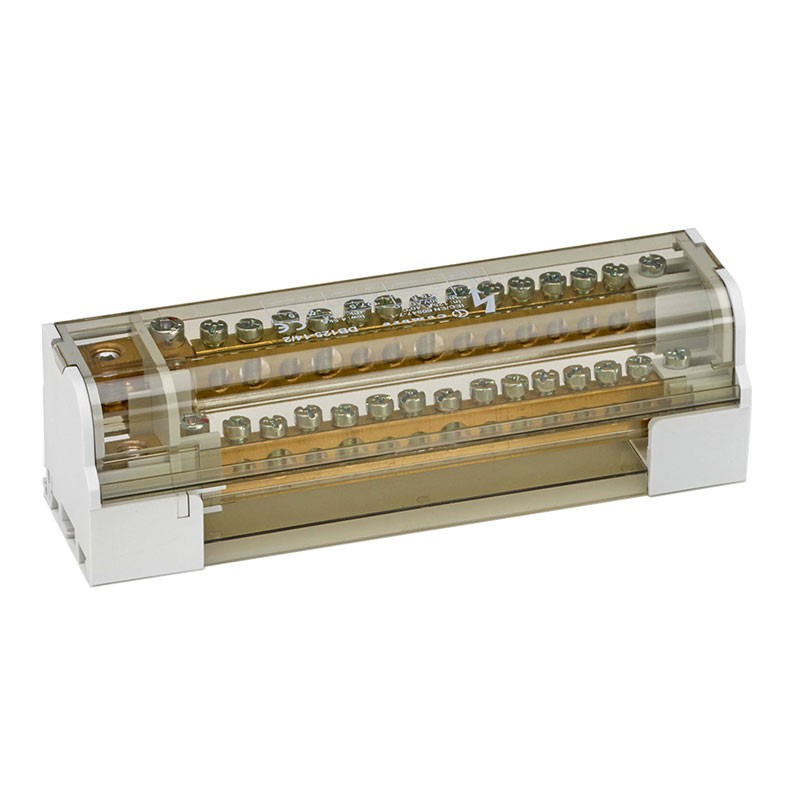

Cembre Bipolar distributor 125A 2 Poles 14 Holes DB125-14/2
CEM DB125-14/2
8051316010452
Cembre 125A 2 Poles Bipolar distributor with 1 input and 14 outputs (11+3).
Cembre Bipolar distributor 125A 2 Poles 14 Holes DB125-14/2
€10.68
Tax included
€10.68
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
Pay in installments with Klarna
The wide range of connectable sections and the small dimensions make DBLOCK dividers ideal for wiring in control and distribution boards on 35 mm DIN rails or on panels using screws.
The inputs and outputs distribute the conductors evenly and tidily, making wiring and any subsequent work on all phases easier. Wiring is further facilitated by the input holes with conical invitation. The terminals guarantee excellent stability of the connection over time.
Nominal section mm2 outputs: rigid (11) 2,5-6 - (3) 10-25
Flexible (11) 1,5-6 (3) 6-16.
Characteristics:
- Rated voltage 690 V
- Rated current (In) 125 A
- Rated current (Icw) 4,5 kA
- Maximum peak current (Ipk) 18 kA
- DIN connection yes
- Height 50 mm
- Length 162 mm
- Width 50 mm
- Weight 266 g
- Material (Body) Polyamide PA6.6
- Material (Cover) Polycarbonate
- Material (Screws) Zinc plated steel
- Material (Clamps) Brass
- Class UL94 V0.
Data sheet
- Type: Distributors
- Voltage: 690V
- Poles: 2P
- Amps: 125A
