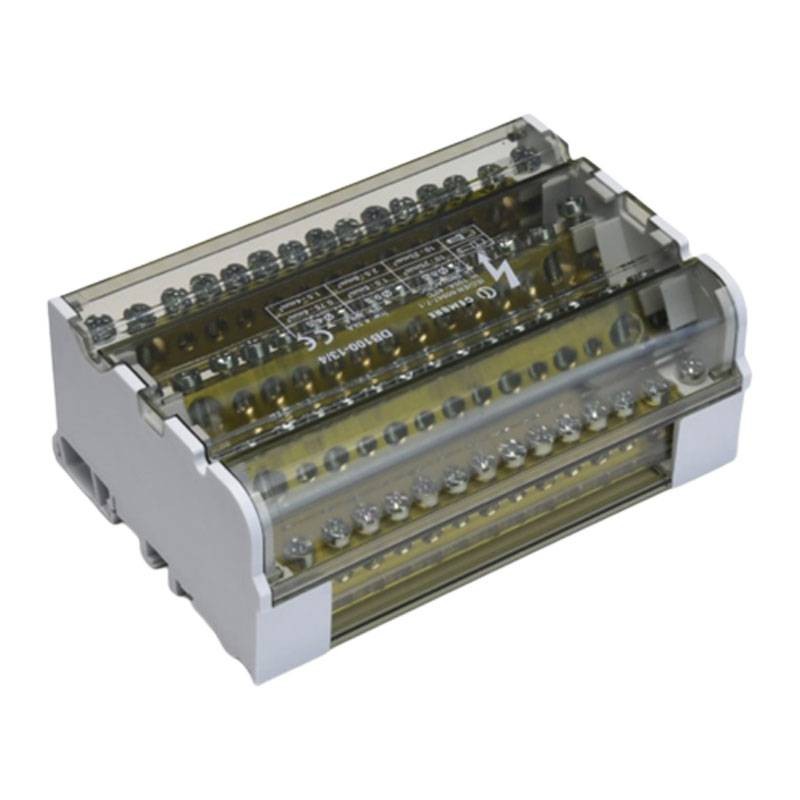

Cembre Tetrapolar Distributor 125A 4-pole 13-hole DB125-14/4C
CEM DB125-14/4C
8051316026255
Cembre Tetrapolar divider with the following features:
- Number of inputs: 2
- Number of outputs: 13 (11+2)
- Rated Section Rigid Input / Flex mm2: 10÷35/10÷16
- Rated Section Outputs Rigid / Flex mm: (11) 2.5÷6 / 1.5÷6 - (2) 10÷25 / 6÷16
- Tightening torque (Nm): 6~7
- Tightening Torque (Nm): 2~3
- Rated Voltage: 500V
- Rated Current: 125 Amperes
- Rated Allowable Short Duration Current (Icw): 4.5 kA
- Assumed Maximum Peak Current (Ipk): 20 kA
Cembre Tetrapolar Distributor 125A 4-pole 13-hole DB125-14/4C
€20.64
Tax included
€20.64
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 23
: 4
Pay in installments with Klarna
The wide range of connectable cross-sections and small dimensions make DBLOCK dividers ideal for wiring in control and distribution boards on 35 mm DIN rails or on panels using screws.
The inputs and outputs distribute conductors evenly and neatly, making wiring and any subsequent work on all phases easier. Wiring is further facilitated by the input holes with conical invitation. The terminals ensure excellent stability of the connection over time.
Features:
- Independent poles with transparent PC separator between poles
- Lid that can be opened
- Built-in 35 mm DIN rail mount
- Input holes with conical invitation for easy introduction of conductors
- PA6.6 body and PC cover
- Self-extinguishing grade (UL 94): V-0
- Brass conductor rods
- Galvanized steel screws with shear head and Philips
- CE, UKCA and RoHS certifications
- Tested according to EN 60947-7-1 standard
- Dimensions: 90x130xh50 mm
There are no reviews
Data sheet
- Type: Distributors
- Voltage: 500V
- Poles: 4P
- Amps: 125A
