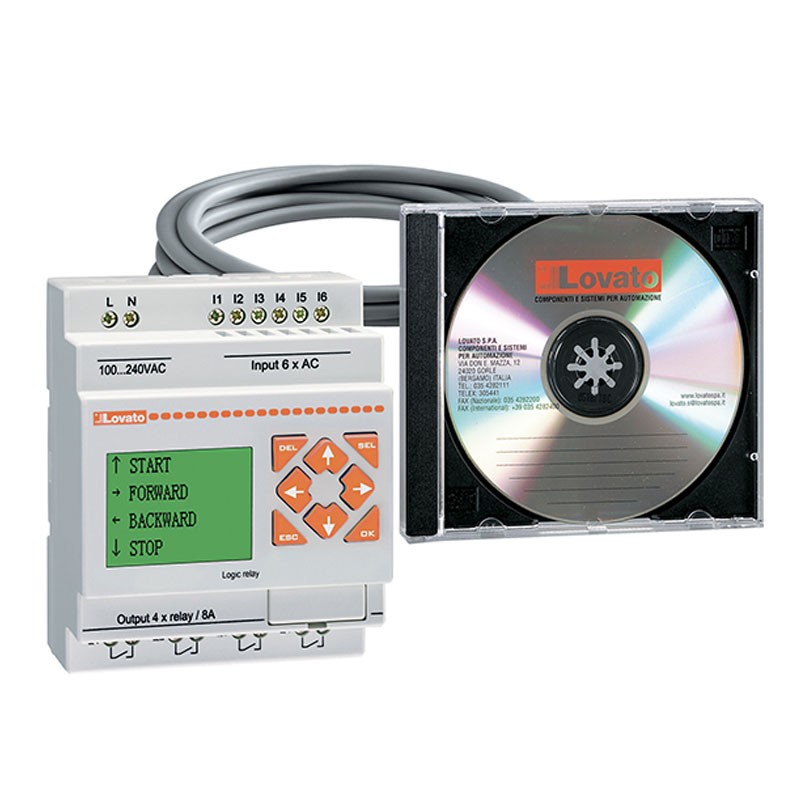

Lovato kit with LRD10R A240 base module software cable LRDKIT10RA240
LOV LRDKIT10RA240
8013975150856
Lovato starter kit, complete with LRD12RA240 base module, LRXSW software and LRXC03 cable, with the following features:
- Auxiliary rated. supply voltage: 100...240V AC
- Operating voltage range: 85...265V AC
- Operating frequency range Hz: 47...63
- Average current consumption: mA 100
- Max power consumption: 7.5W
- 6 digital inputs
- Screen: LCD display, 4 lines x 16 characters
- Terminal type: Screw
Lovato kit with LRD10R A240 base module software cable LRDKIT10RA240
€197.39
Tax included
€197.39
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Digital inputs:
- Rated voltage: 100-240V AC (50/60 Hz)
- Input signals: State 0 (OFF): <40V AC, State 1 (ON): >79V AC
Response time:
- 0 to 1 (OFF-ON) 50/45ms (Ue=120VAC); 22/18ms (Ue=240VAC)
- 1 to 0 (ON-OFF) 50/45ms (Ue=120VAC); 90/85ms (Ue=240VAC)
Digital outputs:
- Number of digital outputs: 4
- Gender: relay
Other technical features:
- Tightening torque for terminals: max Nm 0.6 Maximum Ibft 0.4
- Conductor section: AWG/Kcmil min 26 - max 14
- IEC: min mm² 0.14 - max mm² 2.5
- Operating temperature: -20/+55°C
- Storage temperature: -40/+70°C
- Relative humidity: 20...90% non-condensing
- Mounting: 35mm DIN rail or screw mounting (M4x20mm)
- Degree of protection IP20
- Dimensions (W x H x D) in mm 72 x 106 x 59.6
- Weight 424 grams
Data sheet
- Type: Complete kits
