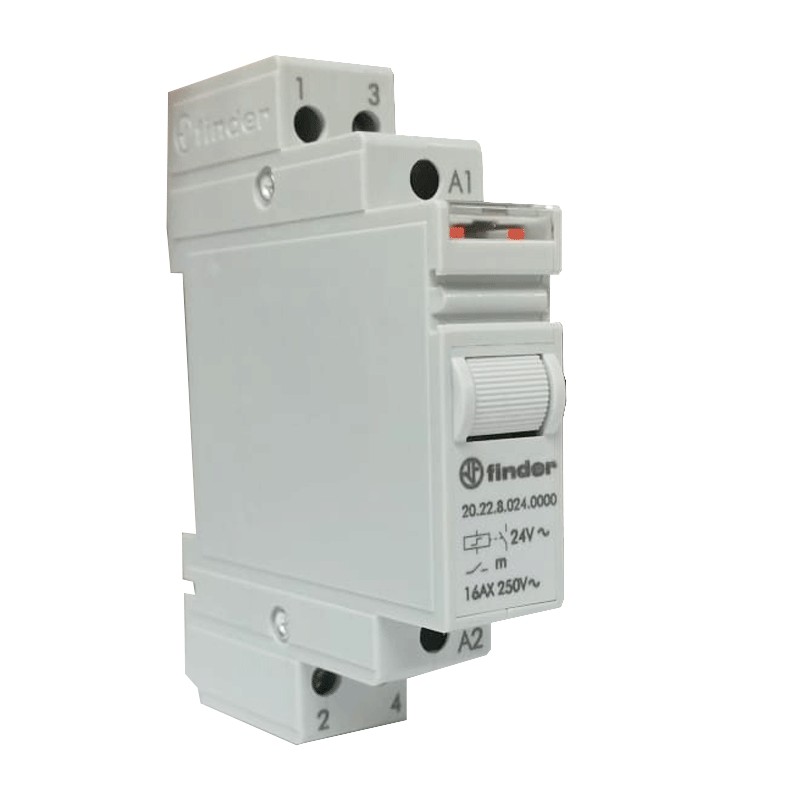

Finder two-pole 24V DIN connection impulse relay 20.22.8.024
FIN 202280240000
8012823236926
Pulse Relay Finder Type 20.22, with the following features:
- Double pole switch 2 NO 16A
- Supply voltage 8 - 12 - 24 - 48 - 110 - 120 - 230 - 240 in AC, in DC 12 - 24 - 48 - 110
- Nominal voltage/Max switching voltage 250/400V in AC
- Nominal AC/DC power VA (50 Hz) 6.5/5W
- Minimum switching load 1000 (10/10) mW (V/mA)
- Nominal current/Max instantaneous current 16/30A
- Rated load in AC1 4000VA
- Rated load on AC15 (230 V AC) 750VA
Finder two-pole 24V DIN connection impulse relay 20.22.8.024
€25.19
Tax included
€25.19
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 87
: 13
Pay in installments with Klarna
Modular impulse relays Type 20.22 with two-pole switch, for direct mounting on 35 mm busbar (EN 60715).
Features:
- Finder series
- With DIN connection
- Standard contact material AgSnO2
- Operating range (0.85...1.1)UN (50 Hz)/(0.9...1.1)UN (60 Hz) in AC, in DC (0.9...1.1)UN
- Mechanical endurance AC/DC cycles 300 - 103
- Electrical endurance at rated load in AC1 cycles 100 - 103
- Min./Max. control pulse duration 0.1 s/1 h (according to EN 60669)
- Insulation between coil and contacts (1.2/50 μs) 4 kV
- Ambient temperature: - 40°C...+ 40°C
- Degree of protection IP20
Lamp capacity
- incandescent/halogen 230V 2000W
- fluorescent with electronic ballast 1000W
- fluorescent with rephased electromagnetic ballast 750W
- CFL 400W
- LED 230V 400W
- halogen or BT LED with 400W electronic transformer
- halogen or BT LED with electromagnetic transformer 800W
Advantages:
- One module width 17.4 mm
- Test button and mechanical indicator
- 7 sequences available
- AC or DC coil
- Identification card
- Connection with illuminated pushbuttons possible via adapter 026.00
- Cadmium-free contacts
Data sheet
- Type: Relays
- Version: Pulse
- Installation: Din
