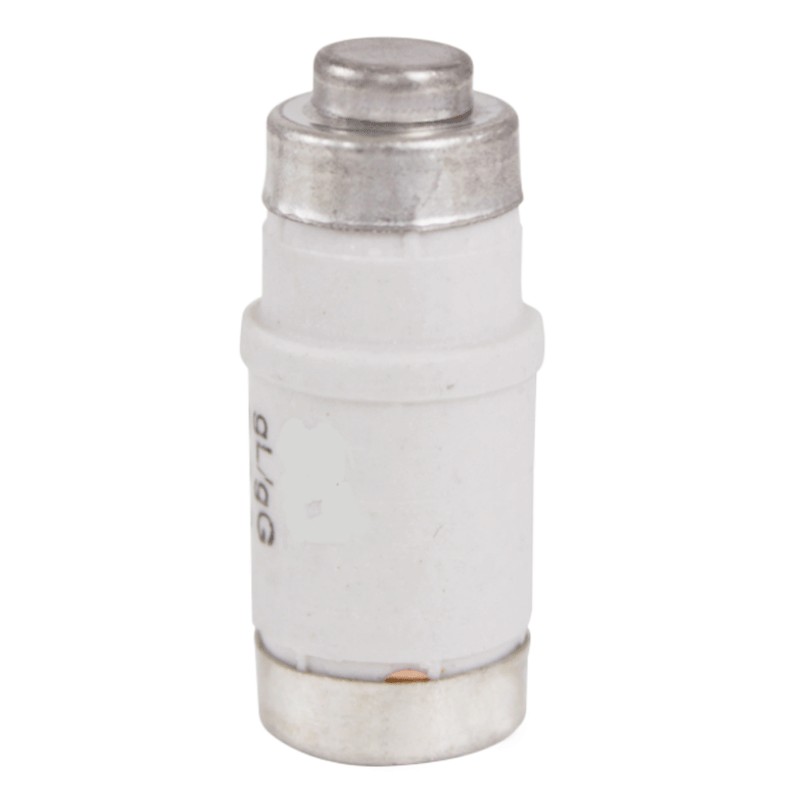

Noezed Italweber D02 fuse step E18 fast bend 35A 400V 1320035
ITW 1320035
8024873046776
Noezed Italweber fuse, with the following characteristics:
- Fuse type D03 (pitch E18)
- Fast curve tripping characteristic
- Rated current 35A
- Rated voltage 400Vac
- Interrupting power 50kA AC
- Dissipated power 3,80W

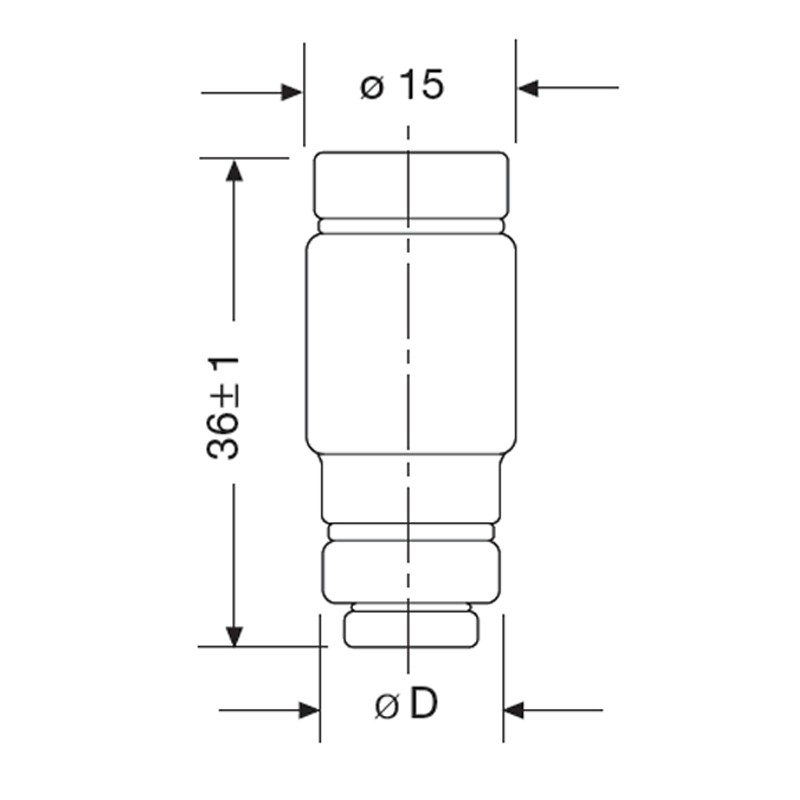

- Dimensions 15X36
Noezed Italweber D02 fuse step E18 fast bend 35A 400V 1320035
€1.54
Tax included
€1.54
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 988
: 40
Pay in installments with Klarna
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber series
- Fuse type D03 (step E18)
- Fast curve intervention characteristic
- Compliant with standards CEI 32-1, CEI 32-5, CEI 32-7, IEC 60269-1, IEC 60269-3, IEC 60269-4
- Rated current 35A
- Rated voltage 400Vac
- Steatite body
- Contacts in silvered copper
- Interrupting capacity 50kA AC
- Dissipated power 3,80W
- Dimensions 15X36
- Operating temperature -20°C / +80°C
Data sheet
- Type: Fuses (Diazed/Neozed)
- Size: 15X36
- Voltage: 400V
- Amps: 35A
- Material: Ceramic
