Diazed Italweber DIII fuse pitch E33 fast bend 35A 500V 1231035
ITW 1231035
8024873046615

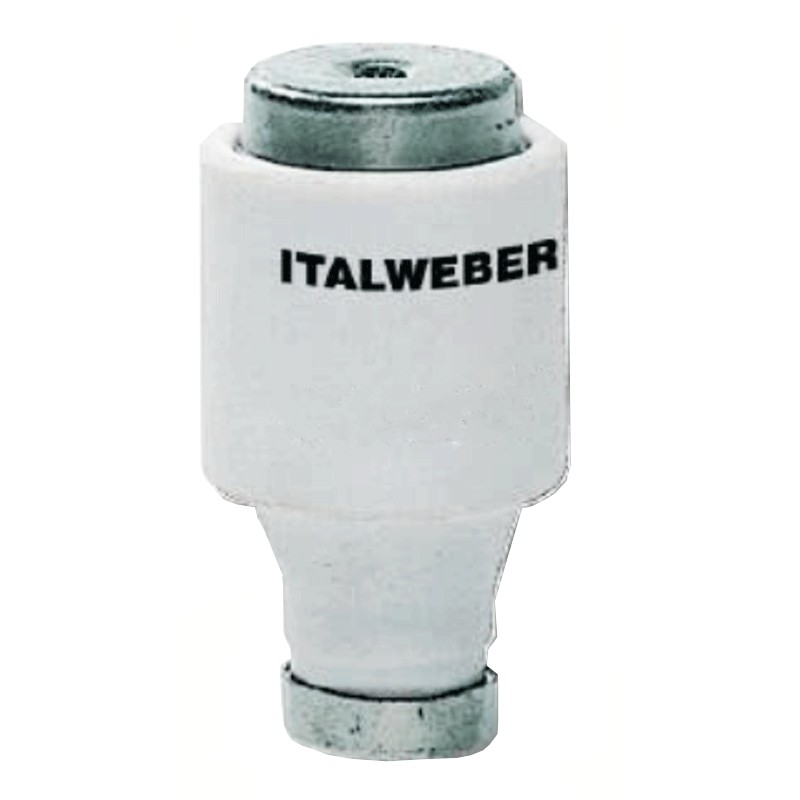

Diazed Italweber fuse, with the following characteristics:
- Fuse type DIII (pitch E33)
- Fast curve tripping characteristic
- Rated current 35A
- Rated voltage 500Vac
- Interrupting power 50kA AC
- Dissipated power 8,3W

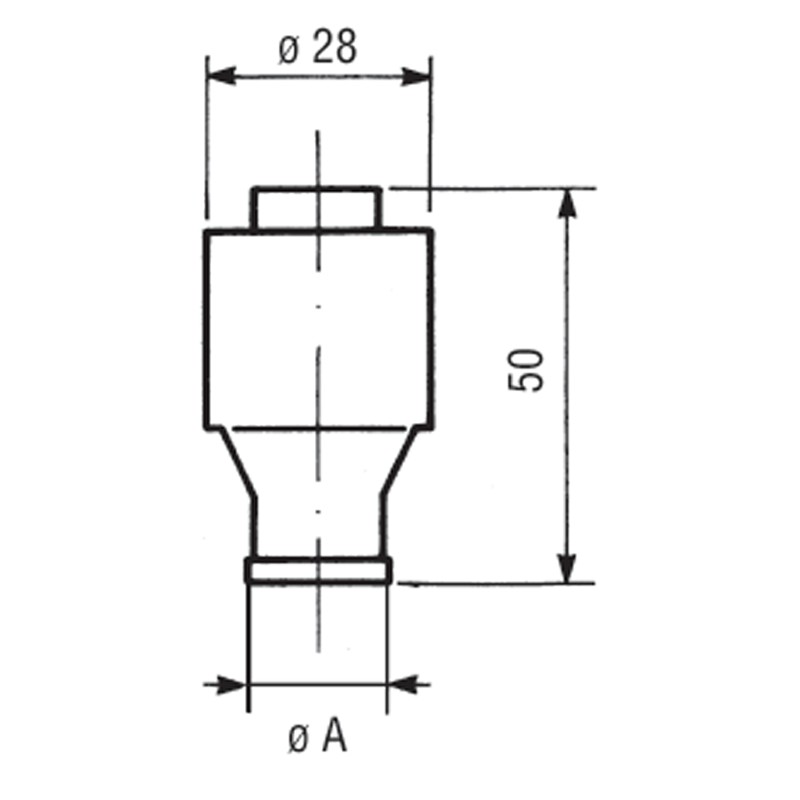

- Dimensions 28X50
Diazed Italweber DIII fuse pitch E33 fast bend 35A 500V 1231035
€1.44
Tax included
€1.44
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 164
: 23
Pay in installments with Klarna
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber series
- Fuse type DIII (pitch E33)
- Fast curve tripping characteristic
- Compliant with IEC standards CEI 32-1, CEI 32-5, IEC 60269-1, IEC 60269-3
- Rated current 35A
- Rated voltage 500Vac
- Steatite body
- Contacts in silvered copper
- Interrupting capacity 50kA AC
- Dissipated power 8,3W
- Dimensions 28X50
Data sheet
- Type: Fuses (Diazed/Neozed)
- Size: 28X50
- Voltage: 500V
- Amps: 35A
- Material: Ceramic
