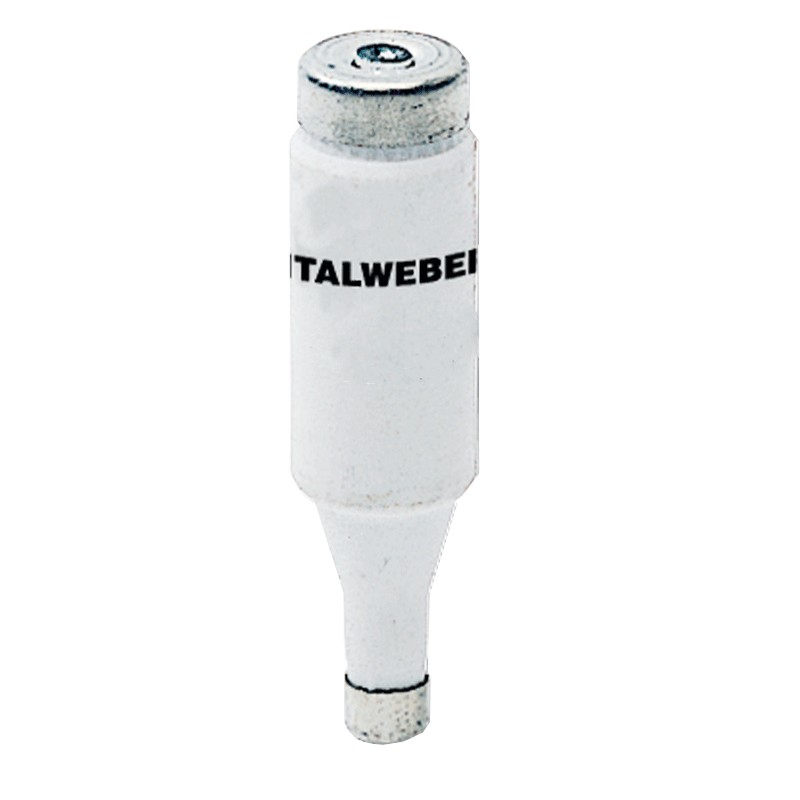

Diazed Italweber NDZ fuse step E16 quick curve 10A 500V 1211010
ITW 1211010
8024873046356
Diazed Italweber fuse, with the following characteristics:
- Fuse type Step E16 (NDZ)
- Rated current 10A
- Fast curve tripping characteristic
- Rated voltage 500 Vac
- Interrupting power 50kA
- Dissipated power 3.0 W
- Dimensions 13X50 mm
Diazed Italweber NDZ fuse step E16 quick curve 10A 500V 1211010
€0.89
Tax included
€0.89
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 101
: 9
Pay in installments with Klarna
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber Series
- Fuse type Pitch E16 (NDZ)
- Rated current 10A
- Fast curve tripping characteristic
- Compliant with standards CEI 32-1, CEI 32-5, IEC 60269-1, IEC 60269-3
- Rated voltage 500 Vac
- Breaking capacity 50kA
- Dissipated power 3.0 W
- Steatite body
- Contacts in silvered copper
- Dimensions 13X50 mm
Data sheet
- Type: Fuses (Diazed/Neozed)
- Size: 13X50
- Voltage: 500V
- Amps: 10A
- Material: Ceramic
