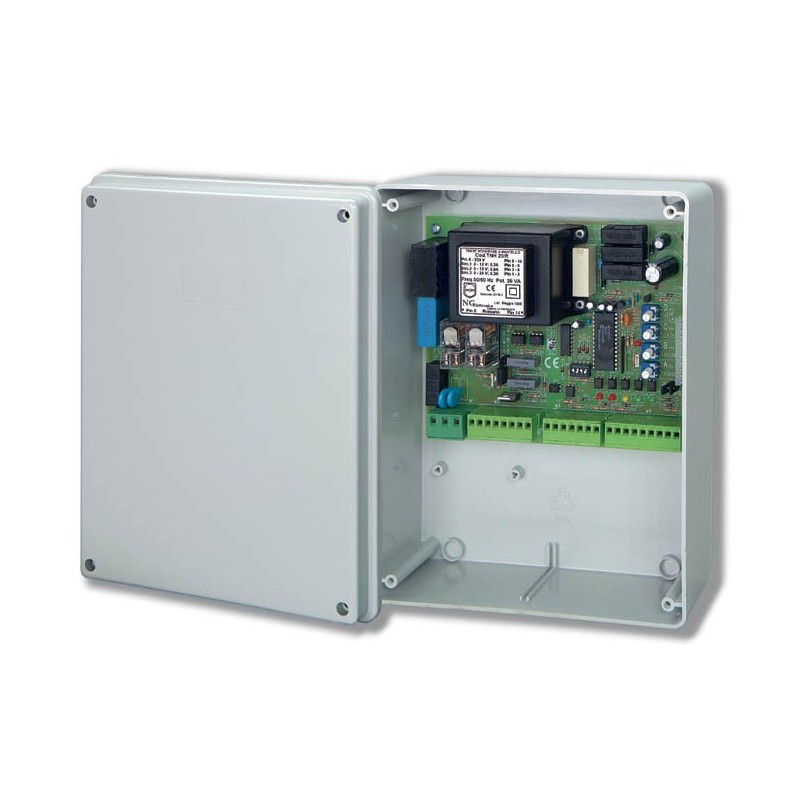

Hiltron control unit for 2 leaf motors 230V PCM20 power supply
C1A PCM20
8056450412445
Hiltron control unit for leaf motors.
Hiltron control unit for 2 leaf motors 230V PCM20 power supply
€116.01
Tax included
€116.01
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 12
: 2
Pay in installments with Klarna
PCM20 is an automation control unit for swing gates. It manages two gearmotors at 230Vac 700VA max each, type MB3DX (for right wing) and MB3SX (for left wing) produced by HILTRON. Management is by means of an electronic clutch, realised with a new generation microprocessor. It is equipped with a sophisticated electronic control circuit which constantly monitors the correct operation of the system and the connected equipment; in the event of anomalies, this circuit intervenes, blocking the operation of the control unit. The monitoring of the operation of the peripheral equipment connected to the control unit is also displayed by means of LEDs placed on the circuit. PCM20 complies with the EMC/2006/95/CE/ and EMC/2004/108/CE directives and therefore bears the CE marking.
Features:
- Supply voltage 230V~ ±10% 50Hz
- Consumption 10 watt
- Gearmotors 2 x 230V~ 50Hz 700VA max
- Peripheral output voltage 24V~ 0,5A max
- Operating temperature-20ºC +55ºC
- Operating logic: automatic / step by step
- Opening / closing time 7 ÷ 60"
- Pause time 8 ÷ 200"
- Leaf closing delay time 3 ÷ 25"
- Door opening delay time 2,5
Data sheet
- Type: Central command
