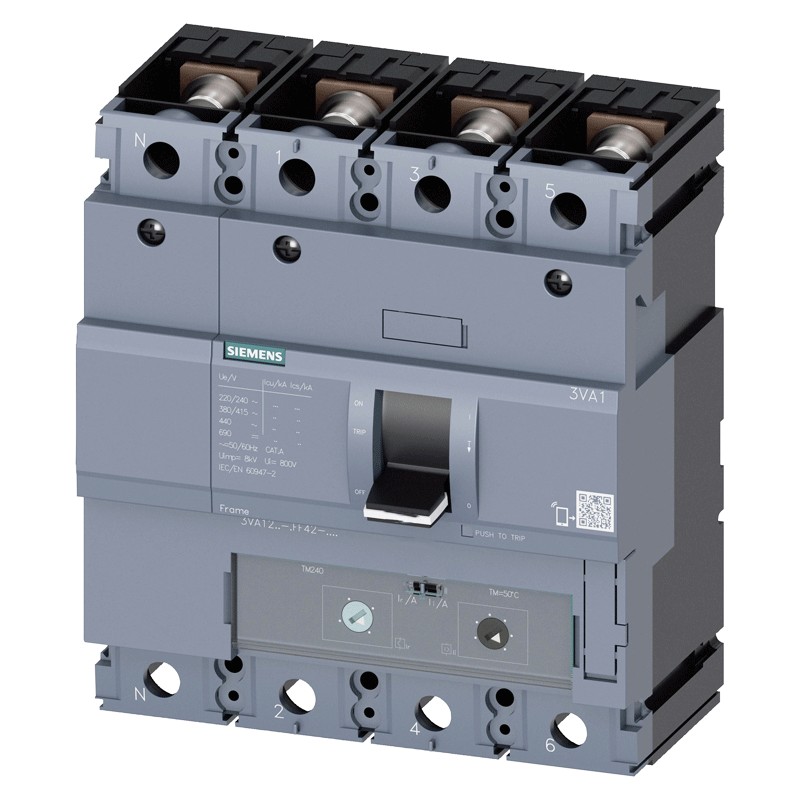

Siemens 3X250A+N/2 36KA TM240 3VA12254FF420AA0 moulded case circuit breaker
SIE 3VA12254FF420AA0
4042948815458
Siemens moulded case circuit breaker, series 3VA1, with the following characteristics:
- Rated insulation voltage 800 V
- Rated DC operating voltage 600 V
- Breaking capacity 36 kA
- Rated permanent current Iu 250A
- 4 poles
- Design of the TM240 overcurrent release unit
Siemens 3X250A+N/2 36KA TM240 3VA12254FF420AA0 moulded case circuit breaker
€704.15
Tax included
€704.15
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 106
: 5
Pay in installments with Klarna
The new 3VA moulded case circuit breakers guarantee high selectivity, extremely compact dimensions and high breaking capacities. The different dimensional sizes up to 1000 A and more than 500 accessory components allow to satisfy all possible configurations of any application.
Features:
- Siemens Series
- Rated insulation voltage 800 V
- Rated DC operating voltage 600 V
- Breaking capacity 36 kA
- Rated permanent current Iu 250A
- 4 poles
- Design of overcurrent release TM240
- Power loss at nominal current value with AC in hot state per pole 19 W
- Max power dissipation 57 W
- Mechanical service life (switching cycles) typ. 20,000
- Height 158 mm
- Width 140 mm Depth 70 mm
- Depth 70 mm
- Net weight 2,11 kg
- Degree of protection on front side IP40
- Type of conductor cross-sections that can be connected for flat busbar connection / min 13 x 1 mm
- Type of conductor cross-sections that can be connected for flat busbar connection / max 25 x 8 mm
- Degree of protection front side IP40
Ambient temperature
- During operation / min -25 °C
- During operation / max. 70 °C
- During storage / min -40 °C
- During storage / max. 80 °C
There are no reviews
Data sheet
- Type: Switches
- Poles: 4P
- Power: 36KA
- Amps: 250A
