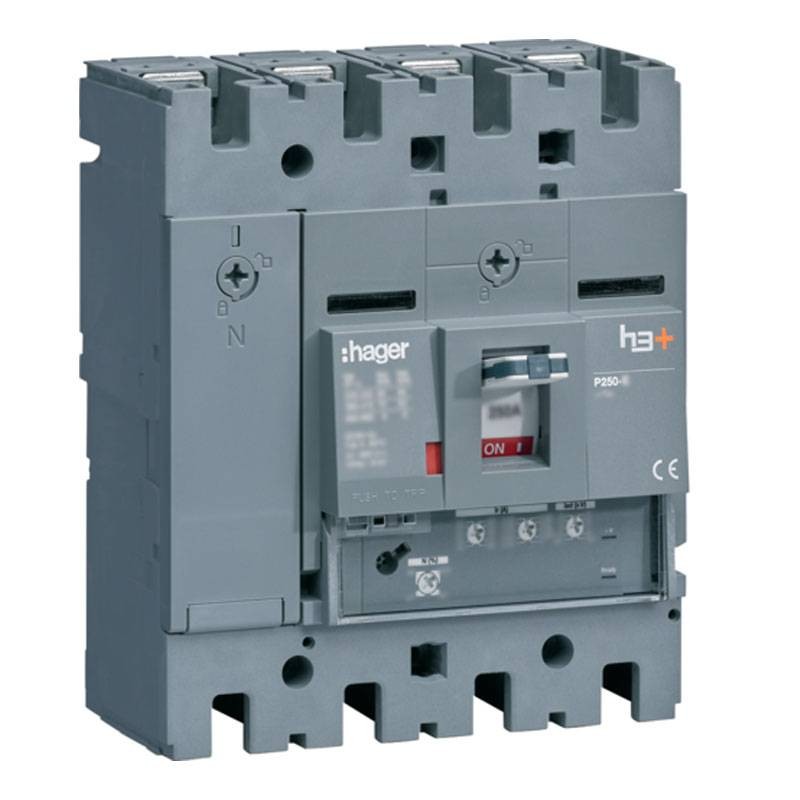

Hager h3 4P 250A 25KA neutral adjustable circuit breaker HHT251GR
HAG HHT251GR
3250613212483
Hager h3 adjustable neutral circuit breaker with the following features:
- Number of poles: 4P
- Rated current: 250 Amps
- Rated operating voltage: 220 - 690V
- Type of supply voltage: AC
- Breaking capacity: 25 kA
- Utilization category: A
- Enclosure degree of protection: IP4X
Hager h3 4P 250A 25KA neutral adjustable circuit breaker HHT251GR
€813.13
Tax included
€813.13
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Frequently bought together
Features:
- Control type: Lever
- Neutral position: left
- Fixing method: Screwed
- Box type: fixed built-in
- Product equipped with the protection unit
- Circuit breaker function
- Maintenance switch function
- With pole of Neutral sectioned
- Suitable for disconnection
- Can be accessorized with differential blocks
- Rated frequency: 50/60 Hz
- Rated insulation voltage: 800 V
- Rated fault holding current: 8 kV
- Total power dissipation: 45 W
- Power dissipation per pole: 15 W
- Tightening torque: 12Nm
- Suitable for installation in distribution board
- Suitable for ground mounting
- With optional voltage coil
- Calibration temperature: 50 °C
- Product depth: 97 mm
- Product height: 165 mm
- Product width: 140 mm
- Minimum distance between switch and lower metal part to ground: 50 mm
- Minimum distance between switch and left metal part on the ground: 50 mm
- Minimum distance between switch and right metal part on the ground: 50 mm
- Minimum distance between switch and upper metal part to ground: 50 mm
- Minimum distance between switch and active part: 150 mm
There are no reviews
Data sheet
- Type: Switches
- Poles: 4P
- Power: 25KA
- Amps: 250A
