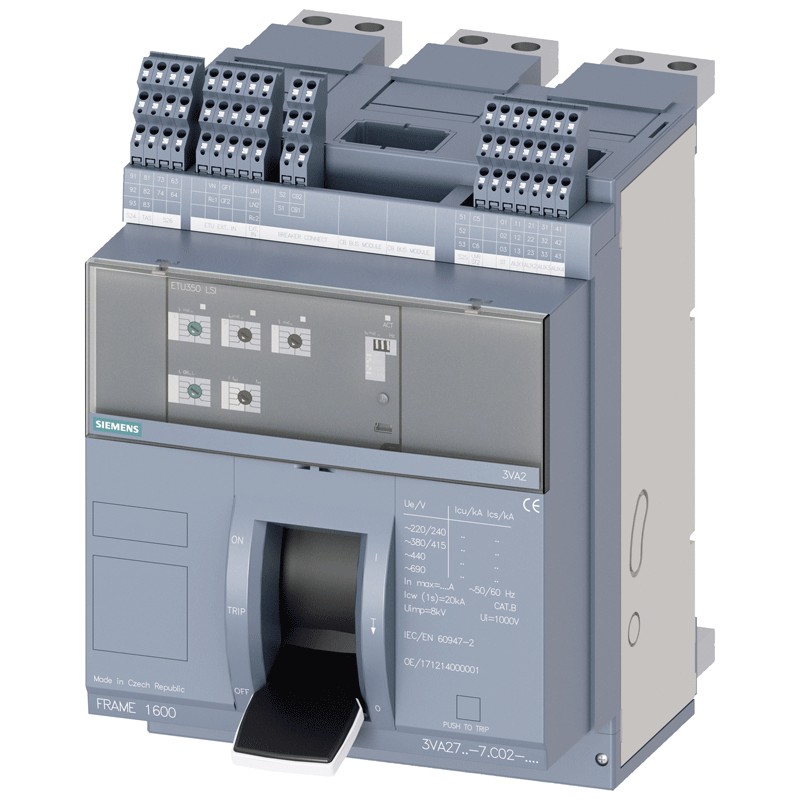

Siemens Sentron 4X1250A 55KA Molded Case Circuit Breaker 3VA27125AC120AA0

Siemens
Siemens
SIE 3VA27125AC120AA0

Siemens Sentron 4X1250A molded case circuit breaker, breaking capacity 55KA in fixed execution with Frame 1600 operating lever; 4AUX and S24 trip signaling contact block; Icu "M" Icu=55 kA with 415V, 3-pole ETU350, LSI, In=1250A.


Request info about this product

Siemens Sentron 4X1250A 55KA Molded Case Circuit Breaker 3VA27125AC120AA0

€4,358.37 Tax included
€4,358.37

Siemens Sentron 4X1250A 55KA Molded Case Circuit Breaker 3VA27125AC120AA0

€4,358.37
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 2
Altre disponibilità dal produttore
qty

Siemens Sentron 4X1250A 55KA Molded Case Circuit Breaker 3VA27125AC120AA0

€4,358.37

Buy it within and receive it from Wednesday, 12 November
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Features:

  • Product brand SENTRON
  • Product name Moulded case circuit breakers
  • Product execution MCCB
  • Switching element Lever control
  • Execution of the switching command manual control
  • Design of the overcurrent release device ETU350
  • Number of poles 3
  • Construction size of circuit breaker 1600A
  • Mechanical service life (switching cycles) / typ. 1000
  • Circuit breaker /nicht versorgt - Grundtyp 3VA2
  • Insulation voltage / nominal value 1 000 V
  • Operating voltage / at AC / at 50/60 Hz / nominal value 690 V
  • Degree of protection IP20
  • Protection function of overcurrent release LSI
  • Power loss: W / at current rating / at AC / in hot state / per pole 47W
  • Number of CO contacts / for auxiliary contacts 4
  • Dimensions height 296 mm - width 210 mm - depth 183 mm
  • Fixing type fixed recessed
  • Net weight 14 kg



Operating current

  • 40 °C / rated value 1 250 A
  • at 45 °C / rated value 1 250 A
  • at 50 °C / rated value 1 250 A
  • at 55 °C / rated value 1 184 A
  • at 60 °C / rated value 1 118 A
  • at 65 °C / rated value 1 049 A
  • at 70 °C / rated value 980 A
  • Permanent current / rated value 1250 A



Adjustable tripping value for current:

  • Current-dependent overload release / end value 1 250A
  • Of the instantaneous short-circuit release / min. value 1 875A
  • Instantaneous short-circuit release / max. 18 750A

There are no reviews

Data sheet

Type:
Switches
Poles:
3P
Power:
55KA
Degree of protection:
IP20
Amps:
1250A
