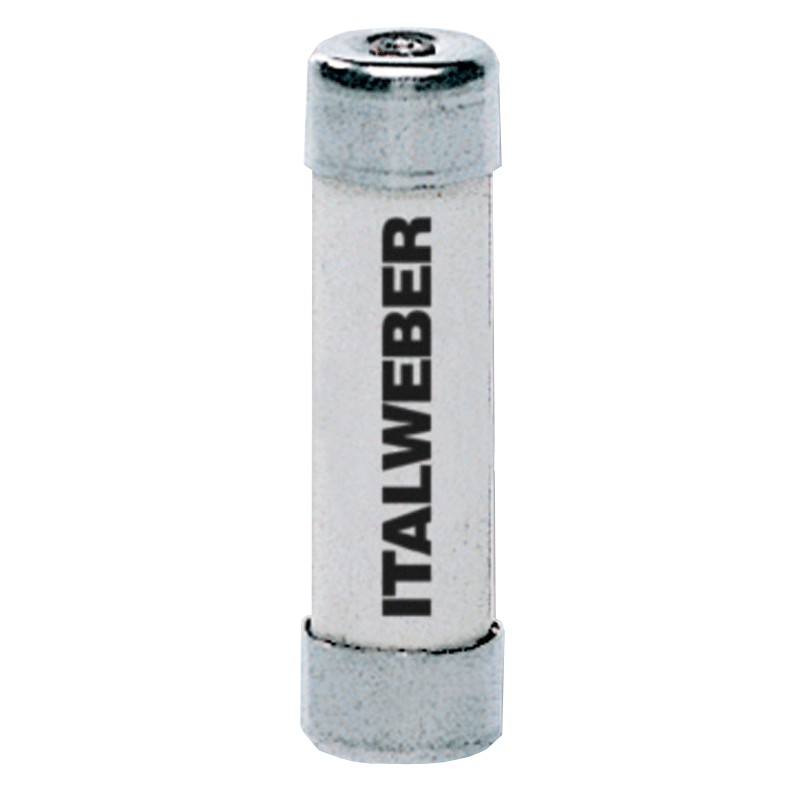

Italweber cylindrical fuse 8,5 x 31,5 mm gG 6A 400V 1100006
ITW 1100006
8024873046196
Italweber cylindrical fuse, with the following characteristics:
- Fuse gauge dimensions 8,5 x 31,5 mm
- Civil use series C0
- Intervention characteristic gG
- Nominal current 6A
- Rated voltage 400 Vac
- Breaking capacity 20kA
Italweber cylindrical fuse 8,5 x 31,5 mm gG 6A 400V 1100006
€1.46
Tax included
€1.46
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 762
: 216
Pay in installments with Klarna
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber Series
- Fuse gauge dimensions 8,5 x 31,5 mm
- Civil use series C0
- Tripping characteristic gG
- Compliant with IEC 60269-1, IEC 60269-3 standards
- Rated current 6A
- Rated voltage 400 Vac
- Steatite body
- Contacts in silvered copper
- Breaking capacity 20kA
There are no reviews
Data sheet
- Type: Cylinder fuses
- Size: 8.5X31.5
- Voltage: 400V
- Amps: 6A
- Material: Ceramic
