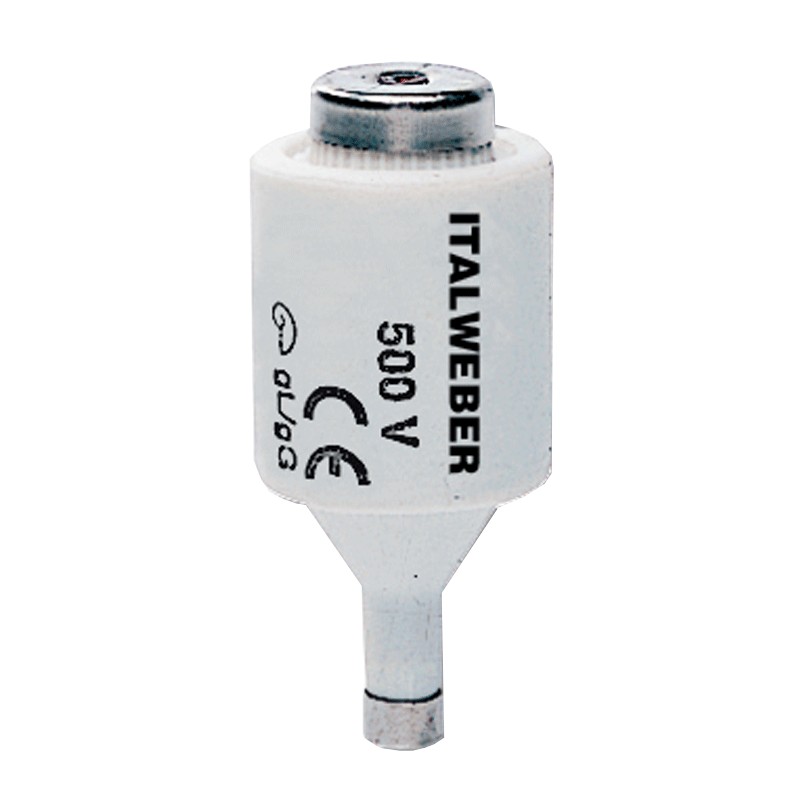

Diazed Italweber DII fuse step E27 quick curve 4A 500V 1221004
ITW 1221004
8024873046479
Diazed Italweber fuse, with the following characteristics:
- Fuse type DII (pitch E27)
- Fast curve tripping characteristic
- Rated current 4A
- Rated voltage 500Vac
- Interrupting power 50kA AC
- Dissipated power 2,8 W

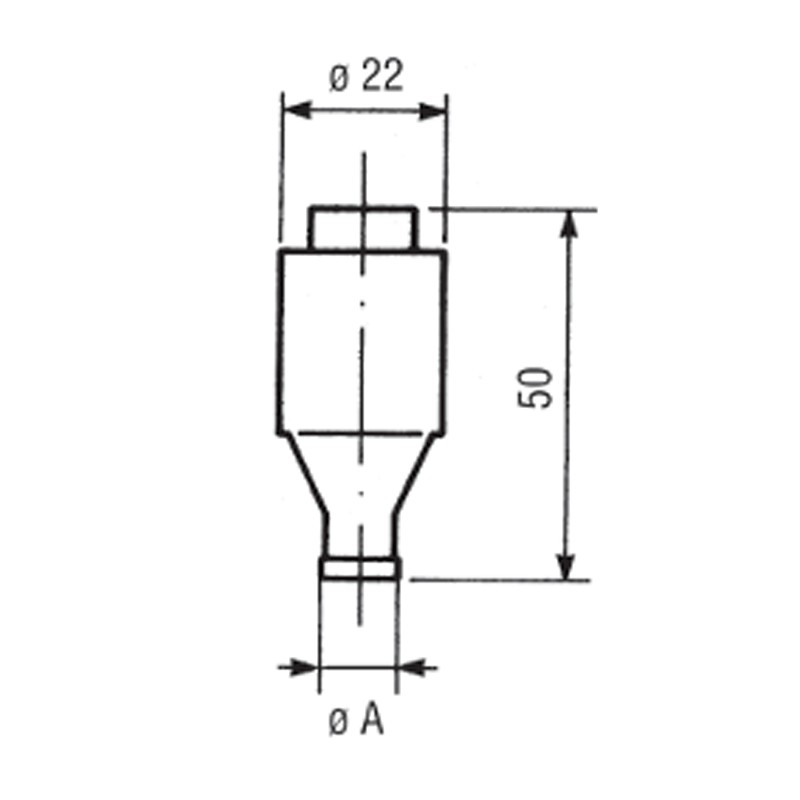

- Dimensions 22X50
Diazed Italweber DII fuse step E27 quick curve 4A 500V 1221004
€1.27
Tax included
€1.27
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 58
: 10
Pay in installments with Klarna
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber series
- Fuse type DII (pitch E27)
- Fast curve tripping characteristic
- Compliant with IEC standards CEI 32-1, CEI 32-5, IEC 60269-1, IEC 60269-3
- Rated current 4A
- Rated voltage 500Vac
- Steatite body
- Contacts in silvered copper
- Interrupting capacity 50kA AC
- Dissipated power 2.8 W
- Dimensions 22X50
There are no reviews
Data sheet
- Type: Fuses (Diazed/Neozed)
- Size: 22X50
- Voltage: 500V
- Amps: 4A
- Material: Ceramic
