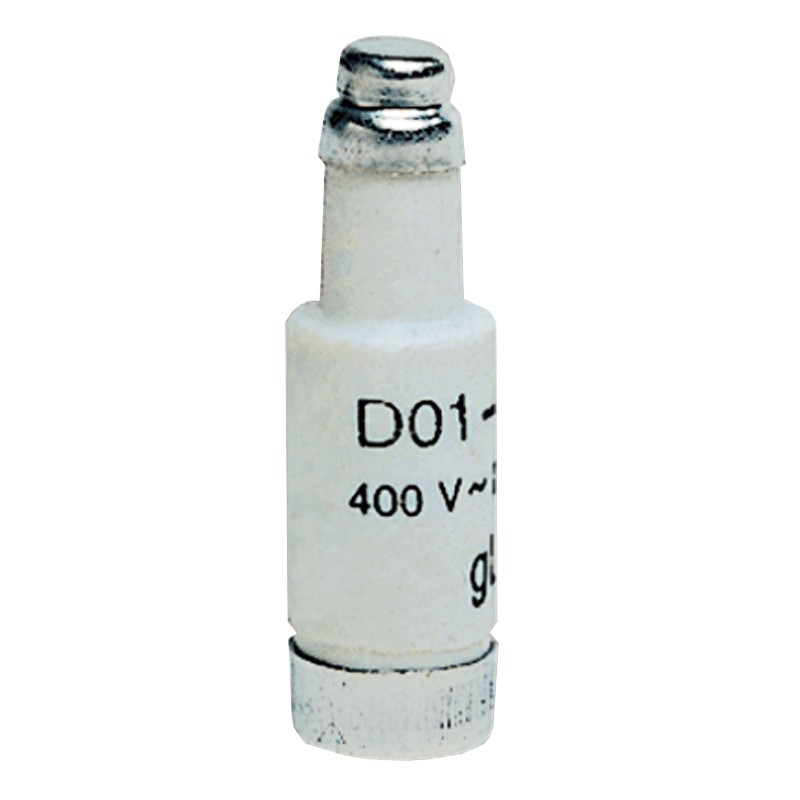

Noezed Italweber D01 fuse step E14 quick curve 6A 400V 1310006
ITW 1310006
8024873046721
Noezed Italweber fuse, with the following characteristics:
- Fuse type D01 (pitch E14)
- Fast curve tripping characteristic
- Nominal current 6A
- Rated voltage 400Vac
- Interrupting power 50kA AC
- Dissipated power 1,68W

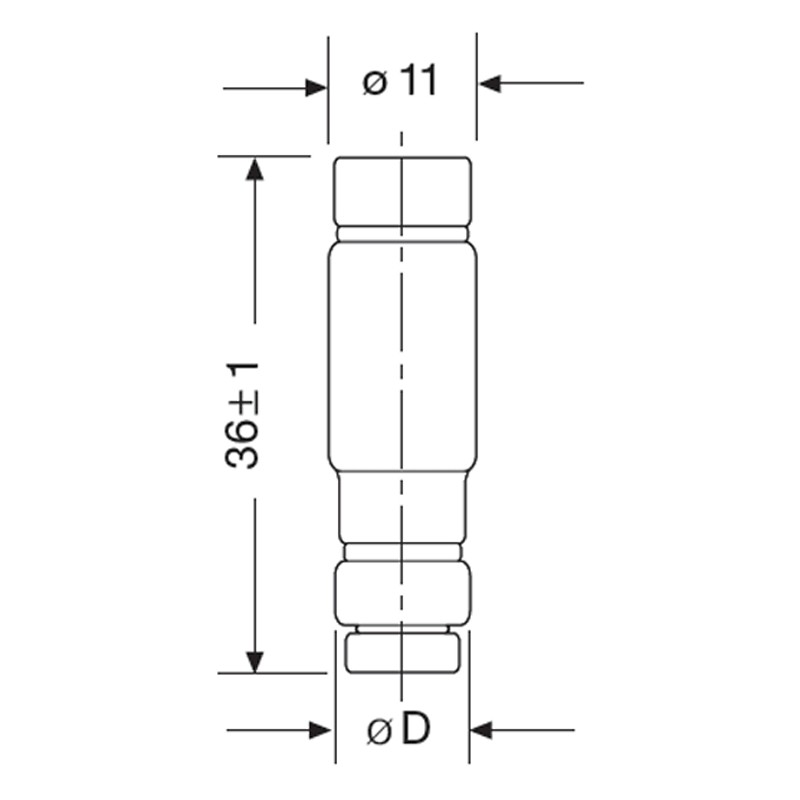

- Dimensions 36X11
Noezed Italweber D01 fuse step E14 quick curve 6A 400V 1310006
€1.34
Tax included
€1.34
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 119
: 14
Pay in installments with Klarna
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber series
- Fuse type D01 (pitch E14)
- Fast curve intervention characteristic
- Compliant with standards CEI 32-1, CEI 32-5, CEI 32-7, IEC 60269-1, IEC 60269-3, IEC 60269-4
- Rated current 6A
- Rated voltage 400Vac
- Steatite body
- Contacts in silvered copper
- Interrupting capacity 50kA AC
- Dissipated power 1,68W
- Dimensions 36X11
- Operating temperature -20°C / +80°C
There are no reviews
Data sheet
- Type: Fuses (Diazed/Neozed)
- Size: 11X36
- Voltage: 400V
- Amps: 6A
- Material: Ceramic
