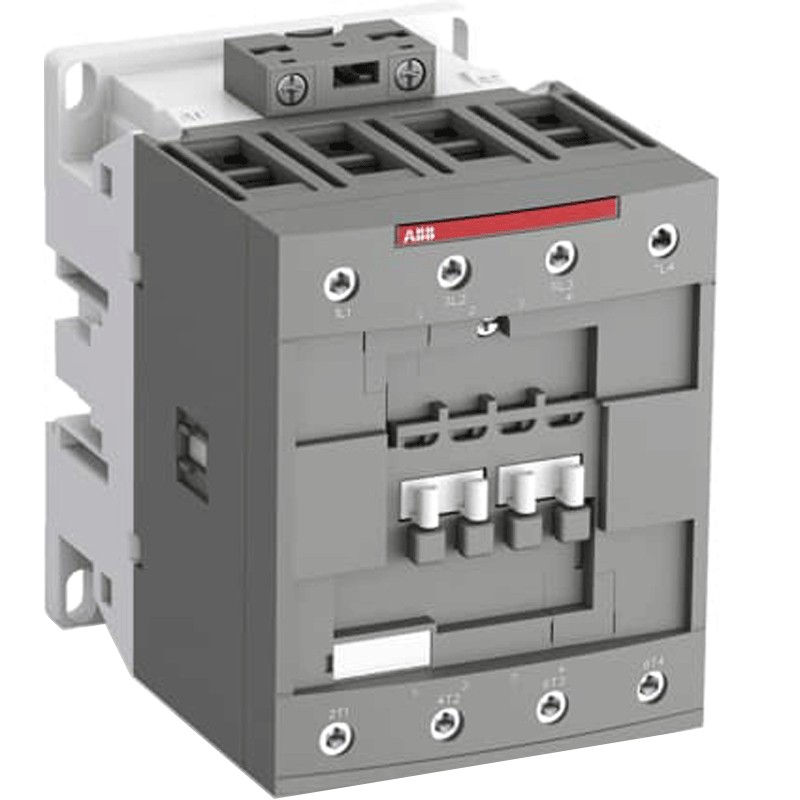

ABB 4-pole contactor 125A AC1 100-250V a.c./d.c. AF80400013
ABB AF80400013
3471523133730
Abb contactor, with the following characteristics
- Nominal operating voltage main circuit 1000 Vac
- Nominal voltage control circuit DC operation 100-250Vac
- 4 poles
- DIN connection (universal for any switchboard on the market)
- Main circuit rated frequency 50/60 Hz
- Operating current 125 amperes
ABB 4-pole contactor 125A AC1 100-250V a.c./d.c. AF80400013
€235.54
Tax included
€235.54
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 41
: 5
Pay in installments with Klarna
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Abb Series
- Nominal operating voltage main circuit 1000 Vac
- Rated voltage control circuit DC operation 100-250 Vac
- Operating current 125 amperes
- Main circuit rated frequency 50/60Hz
- 4 poles
- Number of NO main contacts 4
- Number of NC main contacts 0
- Number of NO auxiliary contacts 0
- Number of NC auxiliary contacts 0
- Screw terminals
- Degree of protection, coils IP20,main terminals IP10
- Product width 90 mm
- Product depth 116 mm
- Product height 125.5 mm
- Product net weight 1.44 Kg
Data sheet
- Type: Contactors
- Voltage: 100/250VAC
- Poles: 4P
- Amps: 125A
