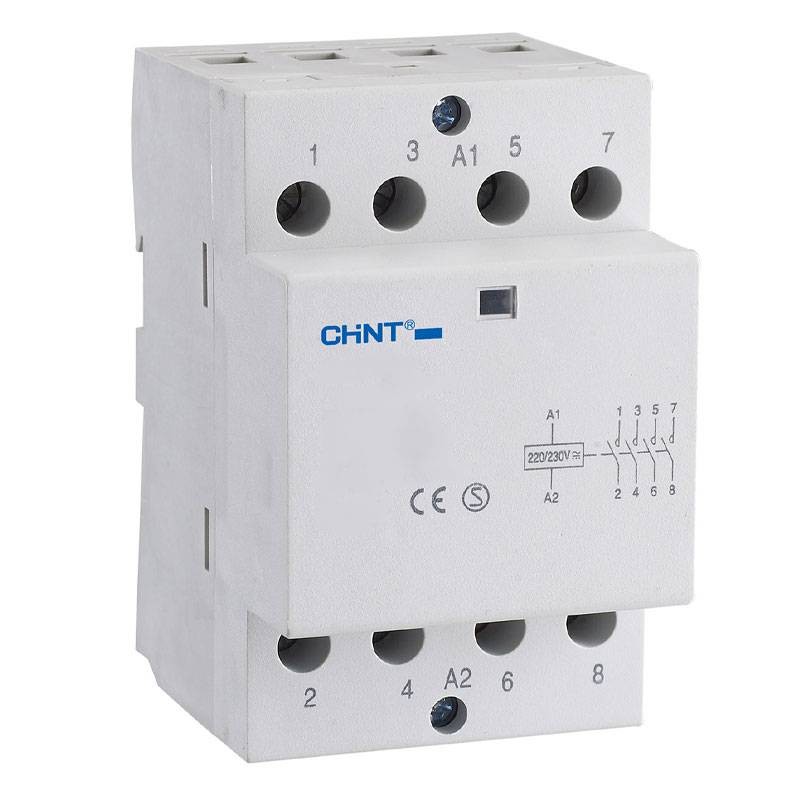

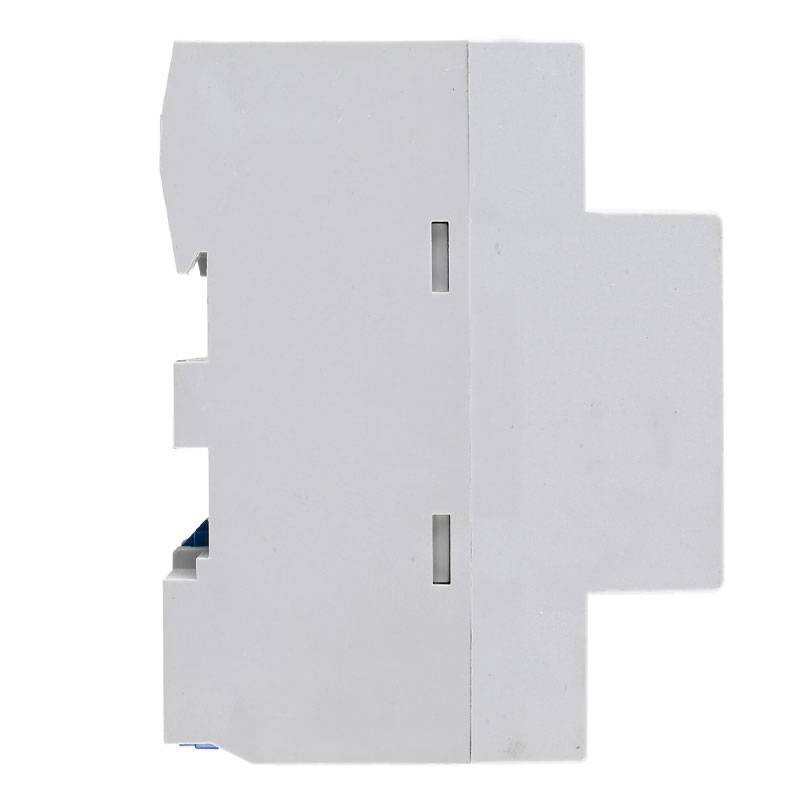

Chint Modular Contactor NCH8 40A 4NA 4P 230 Vac 3 Modules 256099
CHT 256099
6940092491055
Chint NCH8 modular contactor with the following characteristics:
- Rated voltage: 400 Vac
- Rated current: 40 Amperes
- Coil voltage in VAC 50/60 Hz: 230 Vac
- Number of poles: 4
- Number of NO main contacts: 4
- Number of modules: 3
- Degree of protection: IP20
Chint Modular Contactor NCH8 40A 4NA 4P 230 Vac 3 Modules 256099
€67.55
Tax included
€67.55
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
Pay in installments with Klarna
A contactor is a device for closing and opening electrical circuits, mostly high voltage circuits, by remote control.
IEC 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes contact channels between the system and the power structure. In short, a kind of switch to be used for all eventualities.
Features:
- Reference standard: IEC/EN 61095
- Rated current In AC3: 15 A
- Rated frequency: 50/60 Hz
- Isolation voltage: 500 Vac
- Power Dissipation: 8.6 W
- Dimensions: 85x54x65.5 mm (HxWxD)
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 400VAC
- Modules: 3
- Poles: 4P
- Degree of protection: IP20
- Amps: 40A
