Schneider TeSys LC1D Contactor 3P 80A AC3 110V AC LC1D80F7
SNR LC1D80F7
3389110440782

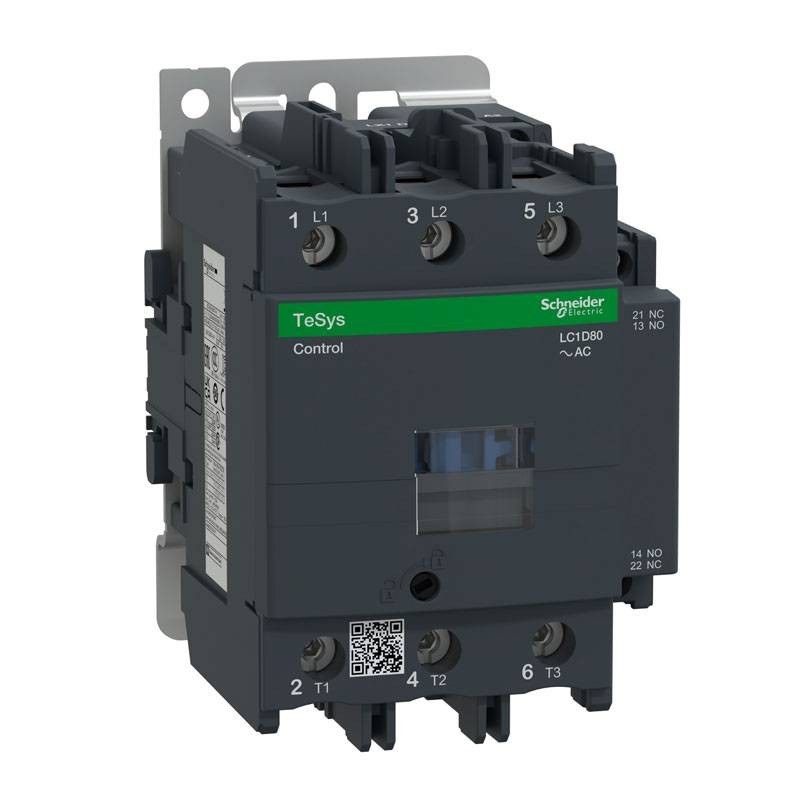

Schneider TeSys LC1D contactor with the following characteristics:
- Number of poles: 3
- Rated operating voltage Ue:<= 300 V DC 25...400 Hz Power circuit - <= 690 V "AC" Power circuit:
- Conventional thermal current in open air: 10 A at <60 °C for signaling circuit - 125 A at <60 °C for Power circuit
- Control circuit type: AC at "50/60 Hz"
- Auxiliary contact composition: 1 NO + 1 NC
- Minimum switching voltage: 17V for signaling circuit
- Minimum switching current: 5mA per signaling circuit
Schneider TeSys LC1D Contactor 3P 80A AC3 110V AC LC1D80F7
€289.18
Tax included
€289.18
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 7
: 2
Pay in installments with Klarna
Frequently bought together
Advantages:
- The LC1D80F7 is a 3-pole TeSys D contactor from Schneider Electric for motor applications up to 37 kW at 400V.
- It includes a 110V 50/60 Hz AC coil and integrated 1NO+1NC auxiliary contacts and can be used in safety applications due to the certified NC mirror contact
- Compact, DIN-rail-mounted, ensures high reliability and durability
- Available worldwide, it is certified to various standards (IEC, UL, CSA, CCC, EAC, for use in marine environments) and is Green Premium (RoHS/REACH) compliant
Rated use current:
- 125 A 60 °C) "AC" AC-1 for Power Circuit at <= 440 V
- 80 A 60 °C) "AC" AC-3 for Power circuit at <= 440 V
- 80 A 60 °C) AC-3e for Power circuit at <= 440 V
Motor power:
- 22 kW at 220...230 V "AC" "50/60 Hz" (AC-3)
- 37 kW at 380...400 V "AC" "50/60 Hz" (AC-3)
- 45 kW at 415 ...440 V "AC" "50/60 Hz" (AC-3)
- 55 kW at 500 V "AC" "50/60 Hz" (AC-3)
- 45 kW at 660...690 V "AC" "50/60 Hz" (AC-3)
- 45 kW at 1000 V "AC" "50/60 Hz" (AC-3)
- 15 kW at 400 V "AC" "50/60 Hz" (AC-4)
Motor power in hp:
- 7.5 hp at 120 V for 1 phase motors "AC" "50/60 Hz"
- 15 hp at 230/240 V for 1 phase motors "AC" "50/60 Hz"
- 30 hp at 200/208 V for 3 phase motors "AC" "50/60 Hz"
- 30 hp at 230/240 V for 3 phase motors "AC" "50/60 Hz"
- 60 hp at 460/480 V for 3 phase motors "AC" "50/60 Hz"
- 60 hp at 575/600 V for 3 phase motors "AC" "50/60 Hz"
Conventional thermal current in open air:
- 10 A at <60 °C per circuit signaling
- 125 A at <60 °C for power circuit
Rated closing power Irms:
- 140 A "AC" for signaling circuit complying with IEC 60947-5-1
- 250 A DC for signaling circuit complying with IEC 60947-5-1
- 1100 A at 440 V for power circuit complying with IEC 60947
Rated short-time allowable current:
- 640 A at <40 °C - 10 s for Power Circuit
- 990 A at <40 °C - 1 s for Power Circuit
- 135 A at <40 °C - 10 min per Power Circuit
- 320 A at <40 °C - 1 min per Power circuit
- 100 A - 1 s per signaling circuit
- 120 A - 500 ms per signaling circuit
- 140 A - 100 ms per signaling circuit
Associated fuse gauge:
- 10 A gG per signaling circuit in accordance with IEC 60947-5-1
- 200 A gG at <= 690 V coordination Type 1 for Power circuit
- 160 A gG at <= 690 V coordination Type 2 for Power circuit
Rated insulation voltage:
- 600 V CSA certified Power circuit
- 600 V UL certified Power circuit
- 1000 V complying with IEC 60947-4-1 Power circuit
- 690 V complying with IEC 60947-1 signaling circuit
- 600 V CSA certified signaling circuit
- 600 V UL certified signaling circuit
Features:
- Mechanical life span: 4 Mccycles
- Auxiliary contact composition: 1 NO + 1 NC
- Mechanically linked type 1 NO + 1 NC complying with IEC 60947-5-1
- Mirror contact type 1 NC complying with IEC 60947-4-1
- Signaling circ. frequency: 25 to 400 Hz
- Insulation resistance: > 10 MOhm per signaling circuit
- IP20 Front side complies with IEC 60529
- Dimensions: height 127 mm - width 85 mm depth 130 mm
- Weight: 1.59 kg
There are no reviews
Data sheet
- Type: Contactors
