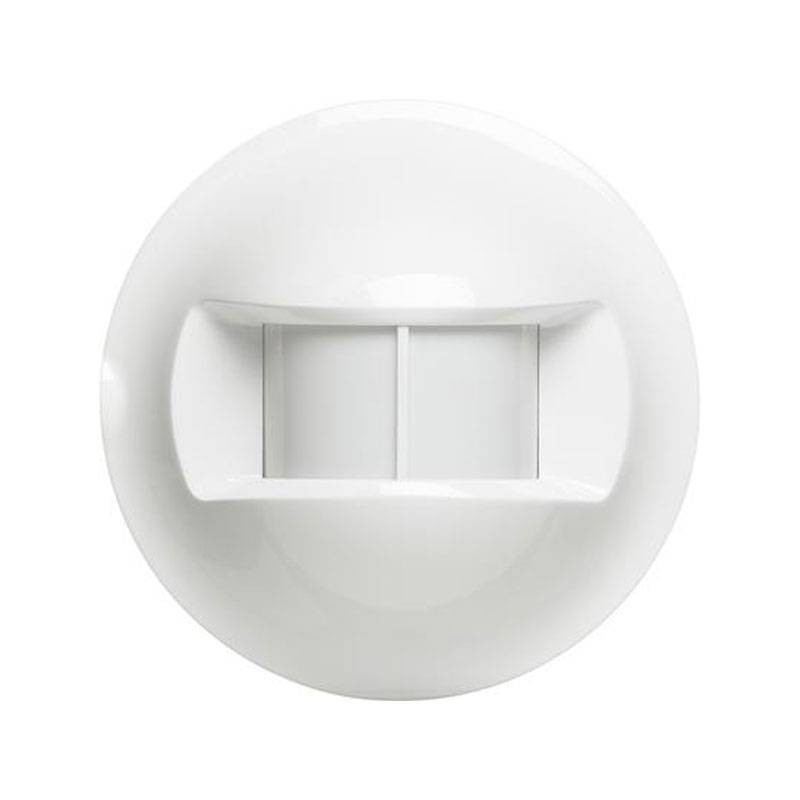

Switch Bticino PIR Recessed Ceiling Motion Sensor BMSA2205
BTI BMSA2205
8005543497081
Switch Bticino PIR recessed ceiling motion sensor for hallway center or lobbies.
This device enables automatic control of lighting based on the contribution of daylight and motion detection in the detection area.
- Motion detector with a detection angle of 2 x 12 meters
- Detection type: passive infrared (PIR)
- Mounting type: ceiling mounted
Switch Bticino PIR Recessed Ceiling Motion Sensor BMSA2205
€29.89
Tax included
€29.89
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 14
Pay in installments with Klarna
Advantages:
- Passive infrared sensor, for motion and illuminance level detection
- Zero Crossing Technology
- ON/OFF load management
- In-ceiling installation via springs or flush-mount box
- Surface installation via surface installation box LG-048875
- IP20 degree of protection
- Quick plug-in terminal connection
- Horizontal coverage area of 30m, 15m front and 15m back for an installation height of 2.5m
- Power supply 100-240 Vac., 50/60 Hz
- Maximum load of 8.5 A at 230 Vac.
- Adjustment via one-way/bidirectional remote control (BMSO4003 and 088240) of illuminance level from 5 lux to 1275 lux and delay time from 5 s to 60 minutes
Features:
- Voltage: 100 - 240V
- Frequency: 50/60 Hz
- Standby consumption: 0.2W
- Output via normally open contact connected to the phase
- Wiring: 2 x 2.5mm2
- Hole diameter: 65 mm without recessed box, 68 mm with recessed box
- Weight: 114 grams
- Impact resistance: IK04
- Penetration of solids and liquids: IP20
- Operating temperature: -5°C to +45°C
- Storage temperature: -20°C to +70°C
There are no reviews
Data sheet
- Type: Sensors
- Installation: Ceiling
