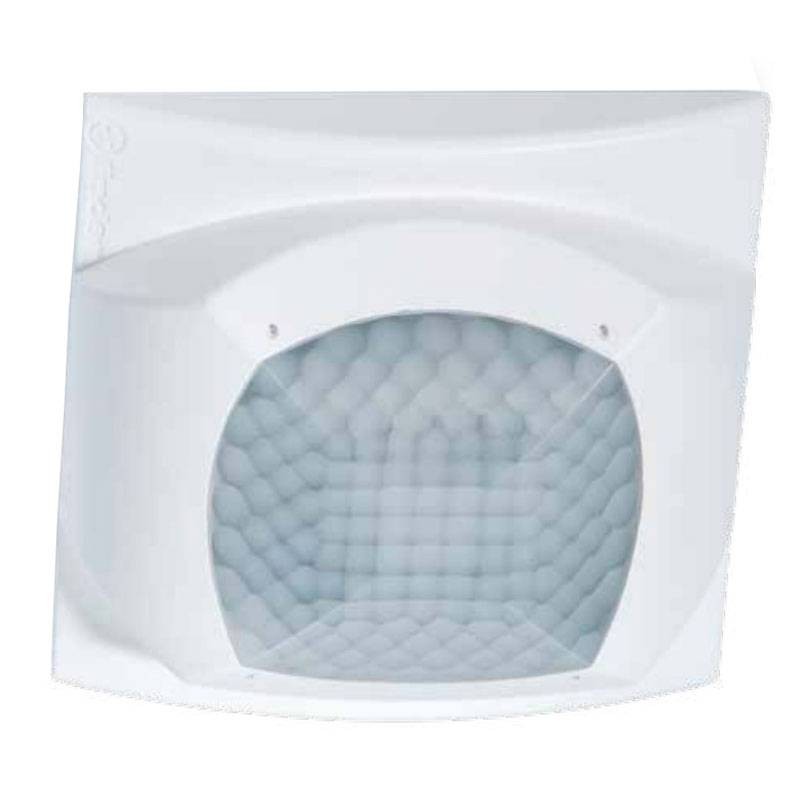

Finder motion and presence detector with DALI interface 185D82300000
FIN 185D82300000
8012823407586
Finder motion and presence detector with DALI interface with the following features:
- Number of connectable power supplies: 8 DALI
- Supply voltage: 110/230V AC (50/60Hz)
- Brightness adjustment: 10 - 800lx
- Delay time adjustment: 10 sec - 35 min
- Push-in terminals
- Ambient temperature: -10 +50 degrees
- Mounting: ceiling or false ceiling
Finder motion and presence detector with DALI interface 185D82300000
€136.28
Tax included
€136.28
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 7
Pay in installments with Klarna
Constant brightness control: adjusts and maintains a constant brightness level based on detected motion and daylight, increasing or decreasing the amount of controlled artificial light. Suitable for small offices, classrooms or work environments. Enables considerable energy savings and comfort.
On, off warning: acts as a simple motion detector, activates lamps at 100% power. Signals by reducing power to 50% for 20 seconds that power is about to be turned off. Prevents sudden shutdown.
Switch-on, switch-off warning and courtesy light: when the brightness level is below the set value, it activates the artificial light at 10% power, ensuring a minimum level of illuminance. If motion is detected, lamp power is adjusted to 100%. It signals by reducing the power to 50% for 20 seconds that it is about to turn off. Suitable for common areas, lobbies, corridors, elevator areas.
Three selectable functions:
- Constant brightness control
- Power on, power off warning
- Power on, power off warning and courtesy light
Two detection areas of up to 64 m2 of detection:
- Presence zone suitable for areas with low occupant activity (4x4 m)
- Motion zone suitable for areas of passing or higher activity (8x8 m)
Applications: offices, schools, areas with low activity by occupants.
There are no reviews
Data sheet
- Type: Sensors
- Installation: Ceiling
