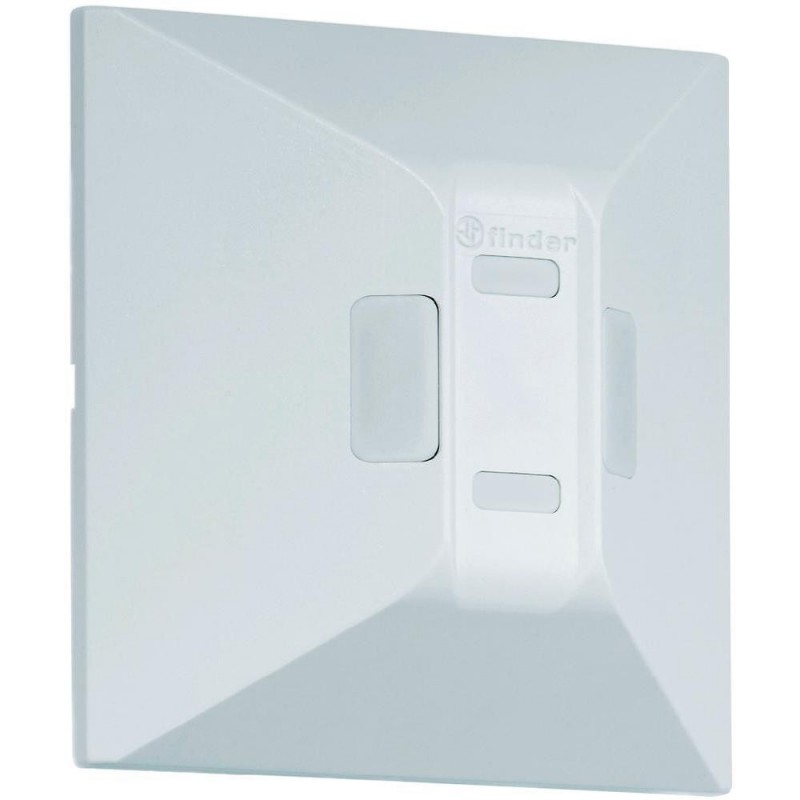

Finder wall-mounted presence detector 18.61.8.230
FIN 186182300300
8012823376769
Wall-mounted presence detector Finder Type 18.61, with the following features:
- Rated supply voltage 110/230V AC (50/60 Hz)
- Nominal voltage/ Max. switching voltage 250/400V AC
- 1 NO A contact
- Rated power VA (50 Hz)/W 1.5/1
- Current rating/ Max. instantaneous current 10/20 (100 A - 5 ms)
- Rated load in AC1:2500 VA
- Rated load on AC15: 450 VA
Finder wall-mounted presence detector 18.61.8.230
€90.68
Tax included
€90.68
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 20
Pay in installments with Klarna
Features:
- Finder Series
- Operating range V AC (50/60 Hz) UN 96/253
- With Push-In terminals
- Potential-free contact
- Wall installation
- Indoor installation
- Electrical service life at rated load AC1 100 - 10 cycles
- Twilight switching threshold adjustment 1...500 lx
- Adjustment of switch-off delay time 12 s - 35 min
- Contact material: standard AgSnO2
- Ambient temperature: -10...+50°C
- Degree of protection IP40
Lamp capacity:
- incandescent/halogen 1000W
- fluorescent with electronic ballast 500W
- fluorescent with power factor correction electromagnetic ballast 350W
- CFL 300W
- LED 230V 300W
- halogen or BT LED with electronic transformer 300W
- halogen or BT LED with electromagnetic transformer 500W
Advantages:
- 1 NO 10 A
- Specific product for wall applications
- Wide reading angle: 180C°
- Wall mounting compatible with 60 mm diameter boxes, 2 module boxes (502) and 3 module boxes (503)
- Large coverage area of up to 120 m2
- Modern design
- Reduced installation time thanks to cable connection with push-in terminals
- One NO contact 10 A with "zero crossing" switching
- Wall or flush mounting, compatible with 60 mm junction boxes and 502 boxes
- Split terminals for connecting other products in parallel
Data sheet
- Type: Sensors
- Installation: Wall-mounted
