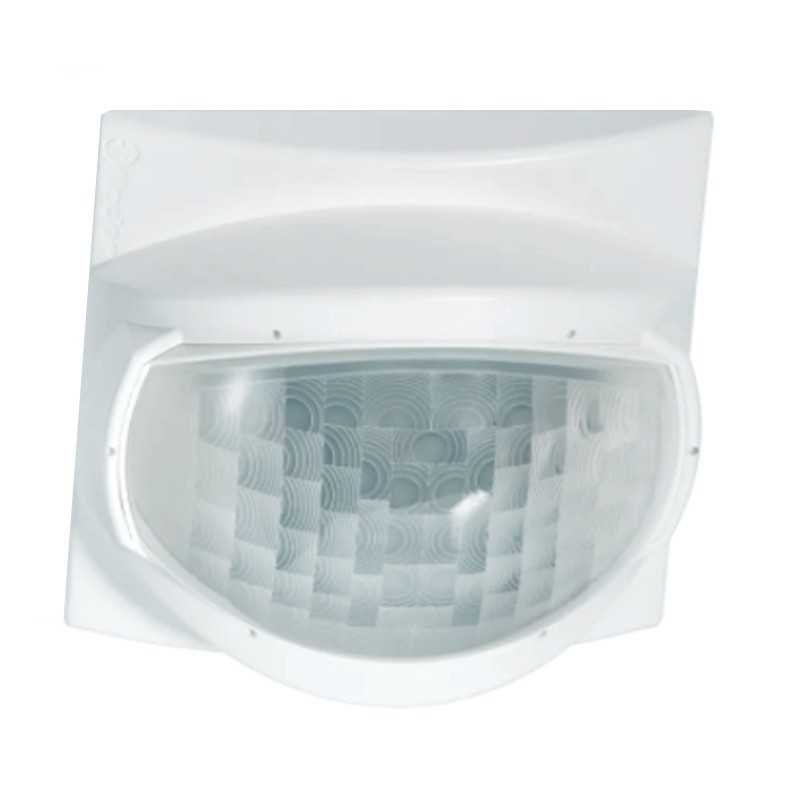

Finder motion detector for walk-through areas 18.41.8.230
FIN 184182300300
8012823376721
Motion and presence detector Finder Type 18.41, with the following features:
- Nominal supply voltage 110/230V AC (50/60 Hz)
- Nominal voltage/ Max. switching voltage 250/400V AC
- 1 NO contact 10A
- Nominal power AC/DC V A (50 Hz)/W 1.5/1
- Nominal current/Max instantaneous current 10/20 (100 A - 5 ms)
- Nominal load on AC1:2500 VA
- Rated load AC15 (230 V AC): 450 VA
- Operating range V AC (50/60 Hz) UN 96/253
Finder motion detector for walk-through areas 18.41.8.230
€90.68
Tax included
€90.68
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 95
: 13
Motion and presence detector Type 18.41 with Push-in terminals for indoor installation in corridors with potential-free contact.
Features:
- Finder Series
- 1 NO contact 10A
- Electrical endurance at rated load AC1 100 - 10 cycles
- Adjusting the twilight switching threshold 1...500 lx
- Adjustment of switch-off delay 12 s - 35 min
- Contact material: standard AgSnO2
- Ambient temperature: -10...+50°C
- IP40 degree of protection
Lamp capacity:
- incandescent/halogen 1000W
- fluorescent with electronic ballast 500W
- fluorescent with power factor correction electromagnetic ballast 350W
- CFL 300W
- LED 230V 300W
- halogen or BT LED with electronic transformer 300W
- halogen or BT LED with electromagnetic transformer 500W
Advantages:
- Applications: hotel corridors, offices, common transit areas
- Detection area 30m long and 4m wide
- Designed for hotel corridors, offices, common transit areas
- Sensing area 30m long and 4m wide
There are no reviews
Data sheet
- Type:
- Sensors
- Installation:
- Ceiling
