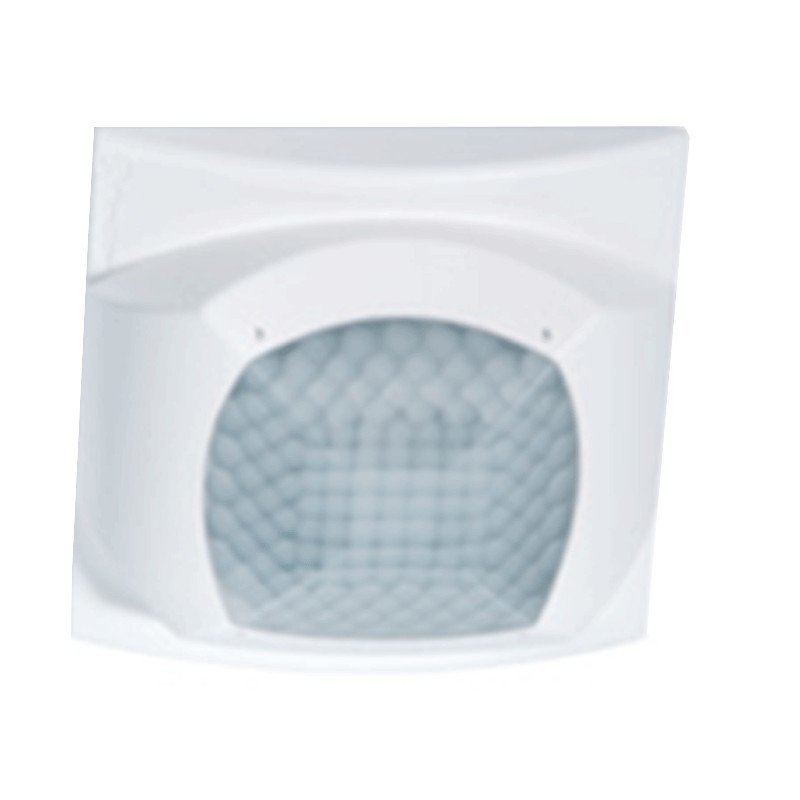

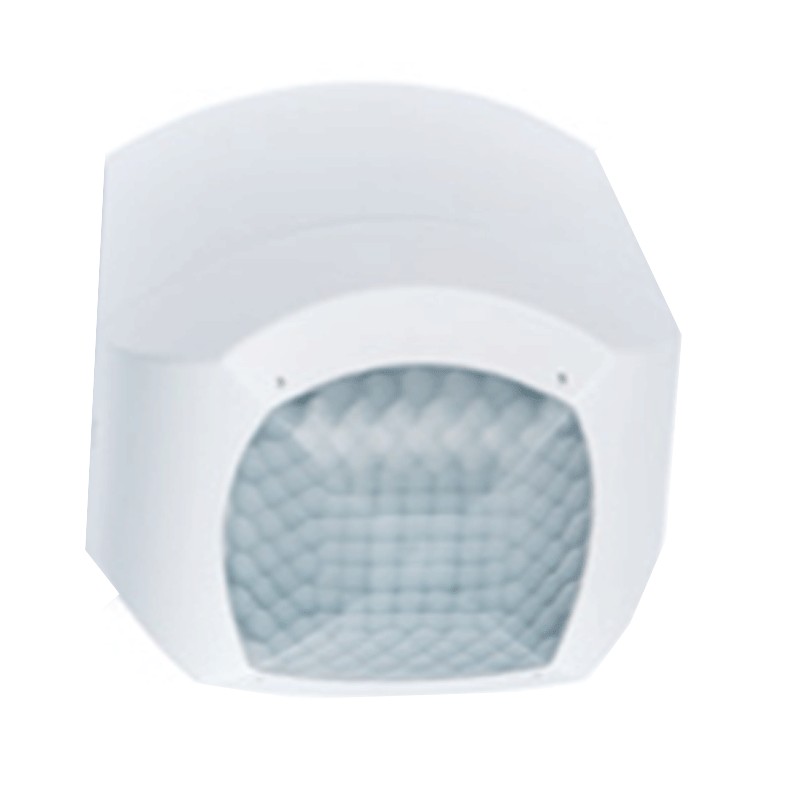

Finder presence detector 2 sensitivity ranges 18.51.8.230
FIN 185182300300
8012823376745
Presence detector Finder Type 18.51, with the following features:
- Rated supply voltage 110/230V AC (50/60 Hz)
- Nominal voltage/ Max. switching voltage 250/400V AC
- 1 NO A contact (potential-free contact)
- Rated power VA (50 Hz)/W 1.5/1
- Nominal current/ Max. instantaneous current 10/20 (100 A - 5 ms)
- Nominal load in AC1:2500 VA
- Nominal load on AC15 (230 V AC): 450 VA
Finder presence detector 2 sensitivity ranges 18.51.8.230
€70.58
Tax included
€70.58
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 101
: 13
Pay in installments with Klarna
Features:
- Finder Series
- Operating range V AC (50/60 Hz) UN 96/253
- With Push-In terminals
- Indoor installation
- Electrical service life at rated load AC1 100 - 10 cycles
- Adjustment of twilight switching threshold 1...500 lx
- Adjustment of switch-off delay time 12 s - 35 min
- Contact material: standard AgSnO2
- Ambient temperature: -10...+50°C
- With 2 sensitivity ranges
- Protection class IP40
Lamp capacity
- incandescent/halogen 1000W
- fluorescent with electronic ballast 500W
- fluorescent with phase-shifted electromagnetic ballast 350W
- CFL 300W
- LED 230V 300W
- halogen or BT LED with electronic transformer 300W
- halogen or BT LED with electromagnetic transformer 500W
Advantages:
- Standard version
- Applications: hotel corridors, offices, areas of low occupant activity
- 1 NO 10 A (Potential free contact)
- Reading area 360°.
There are no reviews
Data sheet
- Type: Sensors
- Installation: Ceiling
