Perry motion detector 1 module civil series recessed 1SPRM030B
PER 1SPRM030B
8019108260294

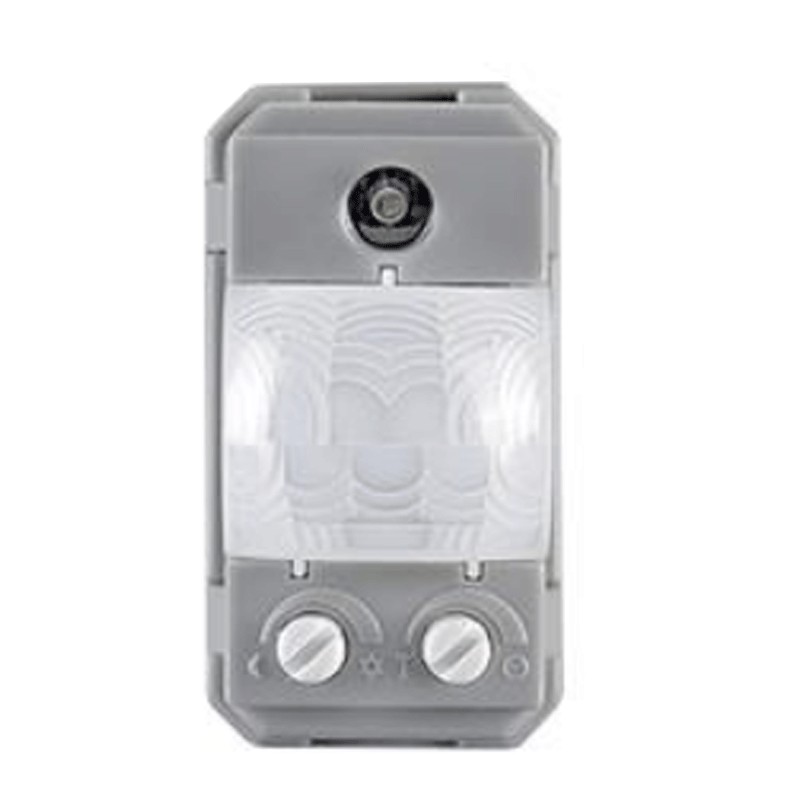

Perry recessed motion detector for civil series. It needs a front adapter for the series you want to use.
Compatible accessories: 1PAFRM030LHT, 1PAFRM030M, 1PAFRM030P, 1PAFRM030LL.
Perry motion detector 1 module civil series recessed 1SPRM030B
€46.86
Tax included
€46.86
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 38
Frequently bought together
Features:
- Perry series
- Power supply 230V a.c. ± 10% 50 Hz
- With white lens
- Degree of protection IP40
- Relay 5A / 250V
- ZERO CROSSING" intelligent relay control
- Degree of protection IP40
- Cable cross-section at terminals 0.75..... 2.5 mm²
- Normal pollution degree
- Installation 1 civil module in flush mounting box type 503
- Detection angle up to 110° at 20°C
- Sensing range approx. 8 m at 20°C
- Timing adjustment from approx. 5 seconds to approx. 12 minutes
- Brightness adjustment from approx. 5 to approx. 200 LUX
- Warm-up time at first switch-on or return from black-out approx. 1 minute
- Function can be activated with switch off/automatic/manual override
- Operating temperature 0°C to +40°C
- Storage temperature -10°C to +60°C
- Marking standard LVD/EMC EN60669-2-1
- Dimensions (WxDxH) one civil module in recessed box type 50
Maximum power that can be driven
- Incandescent lamps 800W
- Fluorescent lamps 200W - CFL/LED (230V) 6
Data sheet
- Type:
- Sensors
- Installation:
- Recessed
