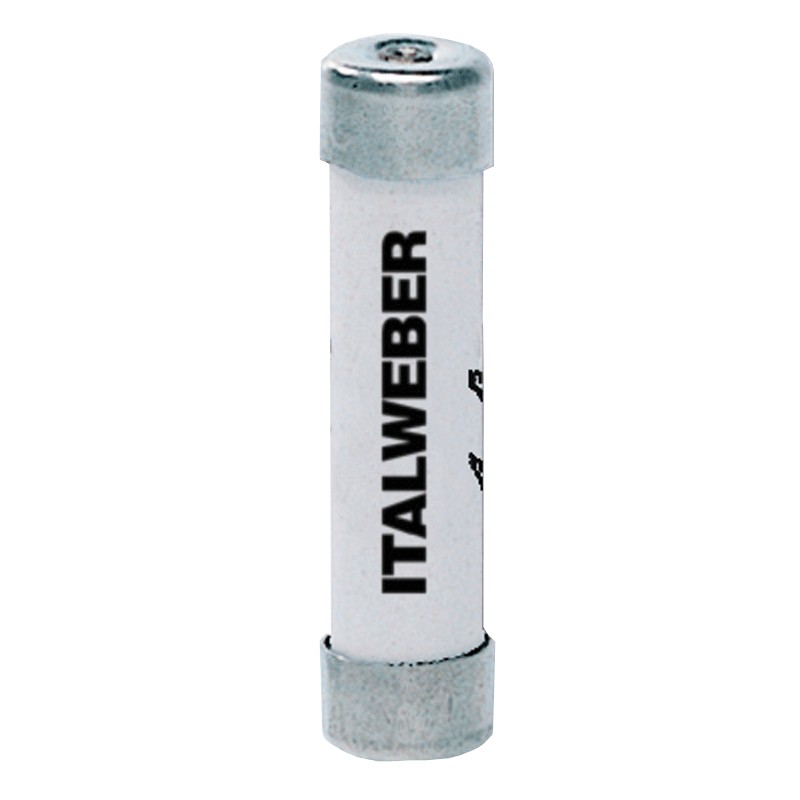

Cylindrical fuse Italweber 9 x 36 mm C1 gG 4A 400V 1110004
ITW 1110004
8024873046257
Italweber cylindrical fuse, with the following characteristics:

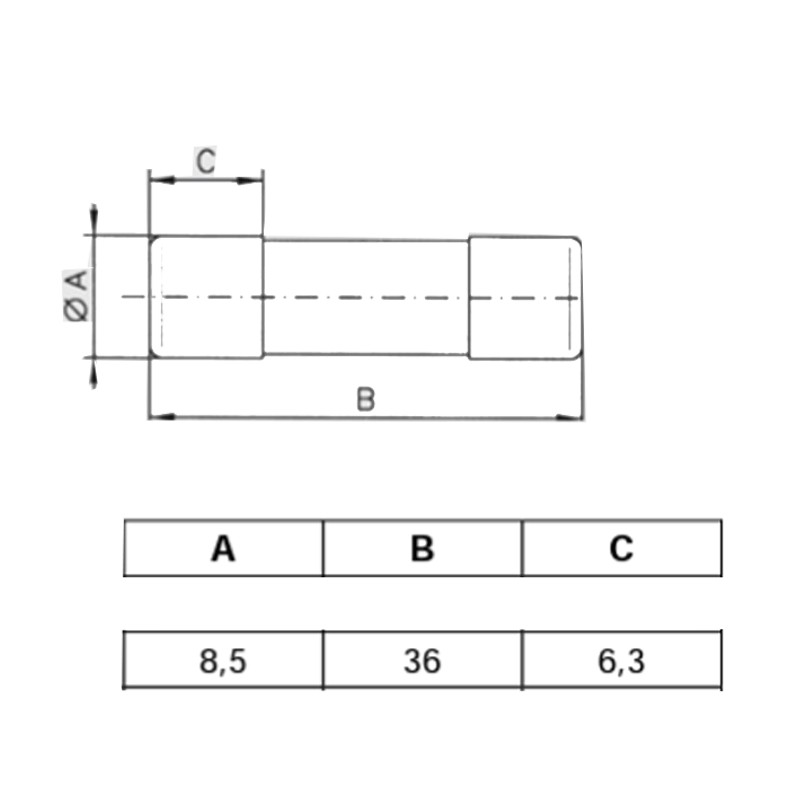

- Fuse gauge dimensions 9 x 36 mm
- Fuse series for civil use C1
- Intervention characteristic gG
- Rated current 4A
- Nominal voltage 400Vac
- Breaking capacity 20kA
- Dissipated power 1,30W
Cylindrical fuse Italweber 9 x 36 mm C1 gG 4A 400V 1110004
€1.44
Tax included
€1.44
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 78
: 16
Pay in installments with Klarna
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber Series
- Fuse gauge dimensions 9 x 36 mm
- Fuse series for civil use C1
- Tripping characteristic gG
- Compliant with IEC 60269-1, IEC 60269-3 standards
- Rated current 4A
- Rated voltage 400Vac
- Steatite body
- Contacts in silvered copper
- Breaking capacity 20kA
- Dissipated power 1,30W
There are no reviews
Data sheet
- Type: Cylinder fuses
- Size: 9X36
- Voltage: 400V
- Amps: 4A
- Material: Ceramic
