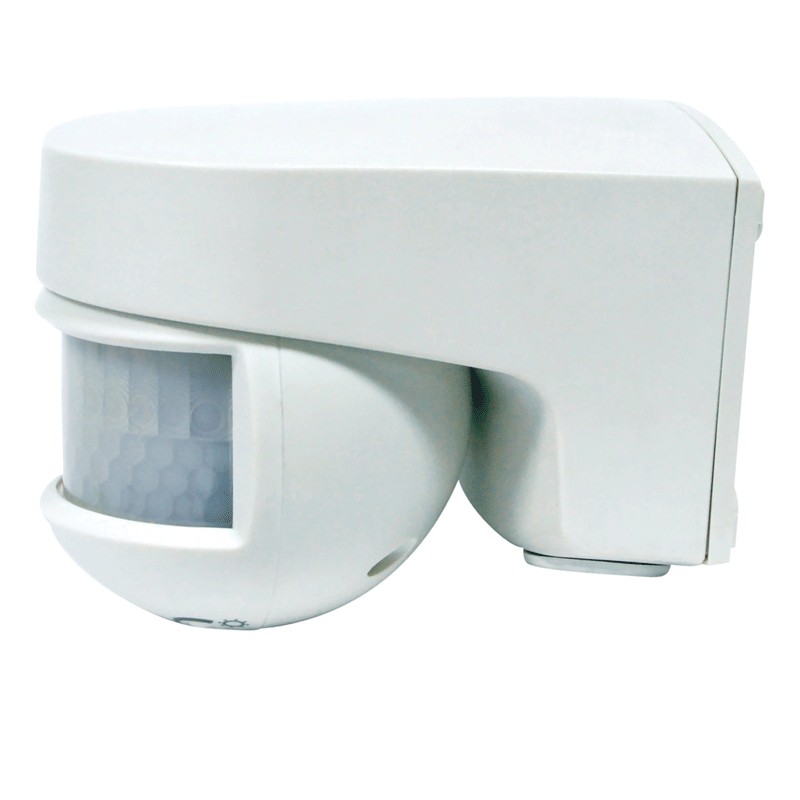

Orbis ISIMAT wall-mounted occupancy detector 200° IP55 OB134112
ORB OB134112
8426709106256
Orbis ISIMAT wall-mounted presence detector with the following features:
- Nominal voltage: 230 V AC
- Rated frequency: 50 Hz
- Contact rating: 5 A / 230V
- Power consumption: 6 VA capacitive (approx. 1W)
- Detection angle: 200°.
- Degree of protection: IP55
- Installation: wall-mounted
Orbis ISIMAT wall-mounted occupancy detector 200° IP55 OB134112
€18.82
Tax included
€18.82
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 61
: 41
Pay in installments with Klarna
Motion detector that detects invisible infrared emissions from people or other heat sources without emitting any type of radiation.
Features:
- Orbis Series
- Type of contact: In closure with potential
- Operating temperature: -20 °C to +40 °C
- Brightness range: 5-30-2000 lux
- Timing range: 3 s - 30 min
- Sensing angle: 200°.
- Sensing range: Front: up to 12 m, Side: up to 8 m (at 20 °C temperature)
- Protection class: Class II according to EN 60335 under correct mounting conditions
- Material plastic
- Type of connection screw terminal
- Colour white
- Dimensions: width 72 mm - height 80 mm - depth 100 mm
- Mounting width 72 mm
- Mounting length 80 mm
Maximum loads:
- Incandescence: 1000 W
- Fluorescence: 600 VA
- Low voltage halogen: 600 VA
- Halogen 230 V AC: 1000 W
- Low consumption lamps: 600 VA
- LED: 60 VA
Funziona bene, fa quello che dice. E grazie ai video del venditore me lo sono installato da solo.
Todo perfecto conforme descrito en la web.
Oggetto utilizzato svariate volte in diversi impianti funziona perfettamente io gestisco le luci
no es el mejor producto para instalar en una escalera ... dificultades con la detección en vertical
Data sheet
- Type: Sensors
- Installation: Wall-mounted
