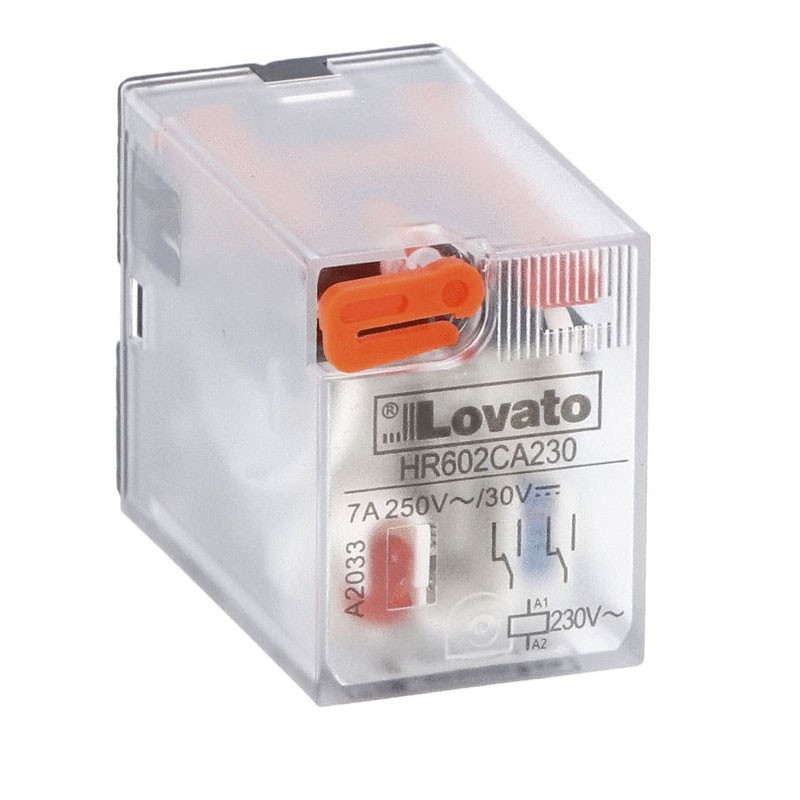

Lovato industrial relay 7A 2 switches 230VAC + LED HR602CA230
LOV HR602CA230
8013975233610
Lovato industrial relay, with LED status indicator and mechanical actuator, with the following features:
- Contact configuration: 2 in exchange
- IEC/EN rated insulation voltage: 500V
- Rated impulse withstand voltage (Uimp): kV 4
- Conventional thermal free air current Ith IEC: 7A
- Rated current: 7A
- Relay control voltage: 230VAC
- Maximum controllable power in: AC-1 W 7
- Rated operational power AC-1: VA 1750
- Rated power rating of AC-15 operation: 230VAC VA 150
- Single-phase motor control: 230VAC kW 0.37
Lovato industrial relay 7A 2 switches 230VAC + LED HR602CA230
€4.83
Tax included
€4.83
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 26
: 4
Pay in installments with Klarna
Frequently bought together
Coil characteristics:
- Average AC coil absorption at 20°C: VA 1.7
- Average DC coil absorption at 20°C: W 1.1
- Operating limits: Closing % Un 70...110 - Opening % Un 20...55
- Maximum frequency of cycles cycles/hour 3600
Other technical characteristics:
- Rated operating current DC-1: 30V A 12 - 110V A 0.3 - 220V A 0.1
- Minimum switchable load: V / mA 5 / 100
- Contact impedance: mΩ 100
- Contact material: Ag/Ni
- Maneuvering times: Closing ms <25 - Opening ms <25
- Maneuvering: Mechanical life cycles 20000000 - Electic life AC1 cycles 100000
- Maximum socket terminal tightening torque: Nm 0.6
- Socket screw tightening tool (cross / flat blade): PH1 / 4.5mm
- Conductor cross section: AWG/Kcmil: Min 20 - max 14
- IEC: min mm² 0.5 -max mm² 2.5
- Mounting Position: Normal / Any
- Mounting: On 35 mm DIN rail and with screws
- Operating temperature: -40/+70°C
- Storage temperature: -40/+80°C
- Signaling Yes
- Mechanical contact position signaling: Yes
- Mechanical test actuator: Yes
There are no reviews
Data sheet
- Type: Relays
