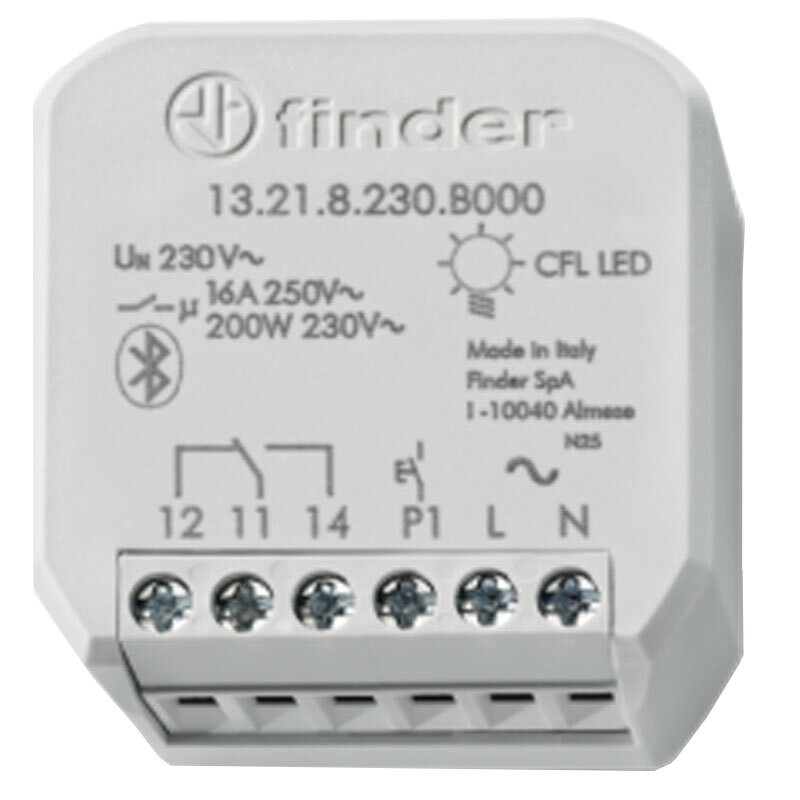

Finder Yesly Multifunction relay 16A 250V 13218230B000
FIN 13218230B000
8012823437439
Finder Yesly 16A 250V multifunction relay is a device that can be integrated into the Finder YESLY smart home system. It features a 16A dry contact, boasts the same functions as the 13.22, and allows for push-button connection on both phase and neutral.
Other technical features:
- BLE transmission protocol
- Flush mounting (e.g. round box 0 60 mm)
- 12 selectable functions
- Management of up to 8 scenarios.
Finder Yesly Multifunction relay 16A 250V 13218230B000
€45.00
Tax included
€45.00
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 16
: 5
Applications:
- Bathroom lighting control
- Bedroom lighting control
- Office lighting control
- Bathroom call with reset
- Living room light controls
- Thermoregulation remote control
Features:
- 1 output with changeover contact 16 A - 250 V AC
- Bluetooth Low Energy (BLE) transmission protocol
- 128-bit encrypted connection
- Programmable via Finder TOOLBOX App compatible with iOS and Android operating systems
- Can be connected to wired buttons or to BEYON wireless buttons and 013B9 types
- Flush mounting
- Contact configuration 1 exchange
- Current rating/Max instantaneous current A 16
- Rated voltage/Max switching voltage V AC 250
- Rated load in AC1 VA 3600
- Rated load in AC15 (230 V AC) VA 600
- Single-phase motor capacity (230 V AC) W 500
- Lamps capacity 230V: incandescent/halogen W 1000
- fluorescent with electronic ballast W 500
- fluorescent lamps with electromagnetic ballast W 350
- compact fluorescent lamps CFL W 300
- LED 230 V W 200
- halogen or BT LED with electronic transformer W 200
- halogen or BT LED with electromagnetic transformer W 500
- Rated supply voltage (UN) V AC (50/60 Hz) 110230
- Rated power AC/DC V A (50 Hz)/W 2.8 / 0.8
- Electrical life at rated load in AC1 cycles 50 - 10
- Max. switching pulse duration Continuous
- Dielectric strength between open contacts V AC 1000
- Environment temperature °C 10+50
- Protection IP20.
There are no reviews
Data sheet
- Type:
- Relays
- Version:
- Multifunction
- Installation:
- Recessed
