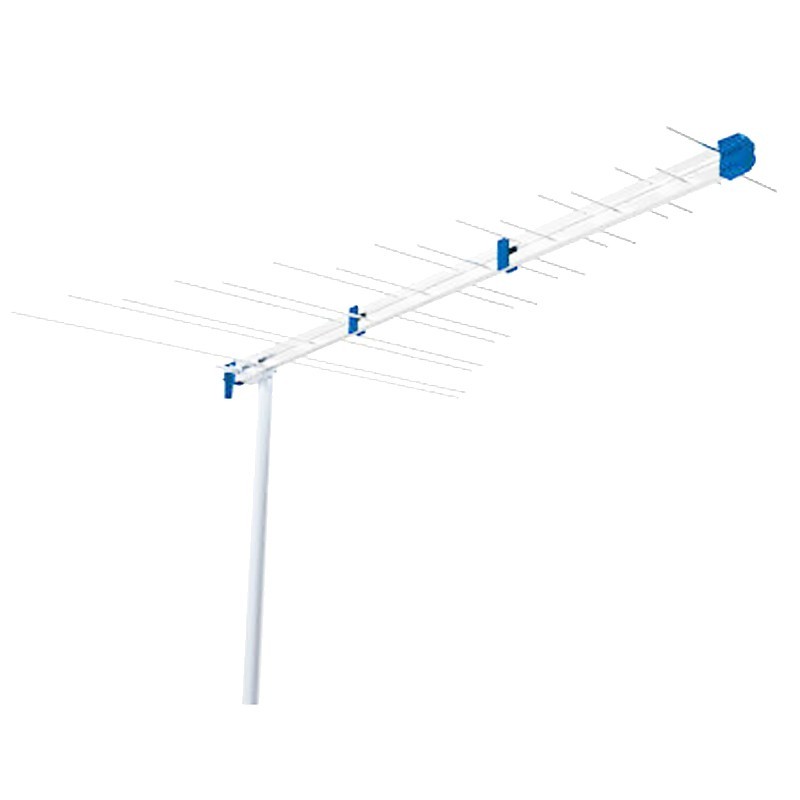

Antenna FTE Logarithmic Band III UHF F 30 elements LOG345LTE
FTE LOG345LTE
8436545304051
Logarithmic antenna FTE LOG345LTE UHF Band III 32 elements with max gain of 12 dB with built-in LTE filter.
Antenna FTE Logarithmic Band III UHF F 30 elements LOG345LTE
€15.99
Tax included
€15.99
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 22
Pay in installments with Klarna
STRENGTHS
- Rear F connector can be rotated by 90° in order to keep it always in a vertical position regardless of the antenna mounting, which can also be vertical or horizontal avoiding water infiltration.
- Great linearity of response
- High forward/reverse ratio
- Horizontal / vertical polarization
- Pre-assembled, quick assembly without tools.
It is installed where channels arrive both in BIII and UHF from the same repeater.
TECHNICAL DATA
- No. of elements 16 16
- Band BIII UHF
- Channels C5 ÷ C12 / C21 ÷ C60
- Gain - dBi BIII: 8.5 / UHF: 12
- Forward/reverse ratio - dB BIII: 15 / UHF: 20
- Beam width -3 dB (H/V) -° 60 / 45
- Wind resistance 120 km/h (720 N/m²) - N 26
- Connector type F, 90° rotatable at the rear
- Impedance - Ohm 75
- Horizontal and vertical polarization
- Pole connection diameter - mm 30 ÷ 57
- Dimensions (W x H x D) - mm 840 x 52 x 1160
- Unit weight - kg 0.8
- Cradle dimensions - mm 14 x 14 x 0,7
- Accessories included Connector F protection cap
Data sheet
- Type: Antennas
- Version: BAND 3
