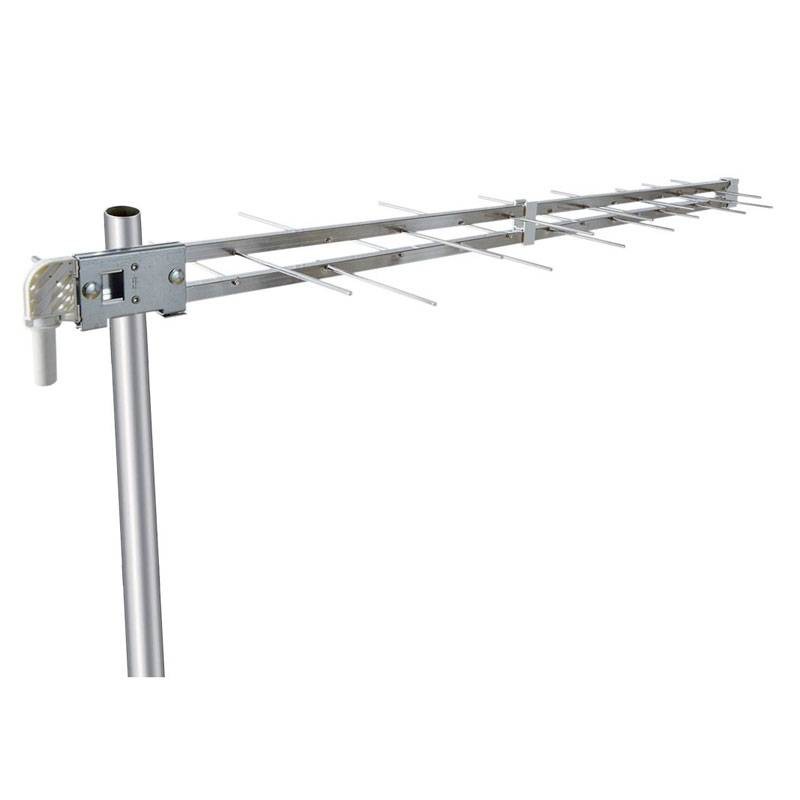

Fracarro LP45F 5G UHF Band Periodic Log Antenna 216258
FRA 216258
8016978106462
Fracarro LP45F 5G UHF band premounted periodic log antenna characterized by filtering for 5G and 4G LTE interferers and extreme ease of installation thanks to the clamp connector:
- Thanks to the special pole mount, the antenna can be installed in both vertical and horizontal polarization without adapters or other accessories
- The geometric distribution of the dipoles has been redesigned to achieve excellent filtering for interfering signals in the 5G and 4G LTE bands above 694 MHz reserved for mobile telephony
- Equipped with excellent mechanical strength of fixing the elements to the cradle, excellent mechanical resistance to rotation on the pole, good electrical performance
- White color antenna
Fracarro LP45F 5G UHF Band Periodic Log Antenna 216258
€17.07
Tax included
€17.07
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 853
: 77
Features:
- Elements No. 14+14
- UHF band
- Channels E21-E48
- Bandwidth MHz 470-694
- Gain dBi 12
- Forward-backward ratio dB 36
- Reflection loss dB -15
- Beam width (-3dB) ° ±28
- Wind resistance 120 km/h (720N/m²) kg (N) 3.0 (29.43)
- Connector Type F
- Impedance Ohm 75
- Maximum pole attachment diameter (Ø) mm 60
- Dimensions (W x H) cm 99 x 32
- Unit weight kg 0.70
Accessories:
- Horizontal polarization Included
- Horizontal zenith adjustment PV10 not included (code 210011)
- Vertical polarization Included
- Vertical zenith adjustment PV10 not included (code 210011)
- Auxiliary Cradle N.P
Log periodica Fracarro LP45F 5G buon prodotto
prodotto buono e conosciuto di casa primaria nel settore
Data sheet
- Type:
- Antennas
- Version:
- 5G
UHF
