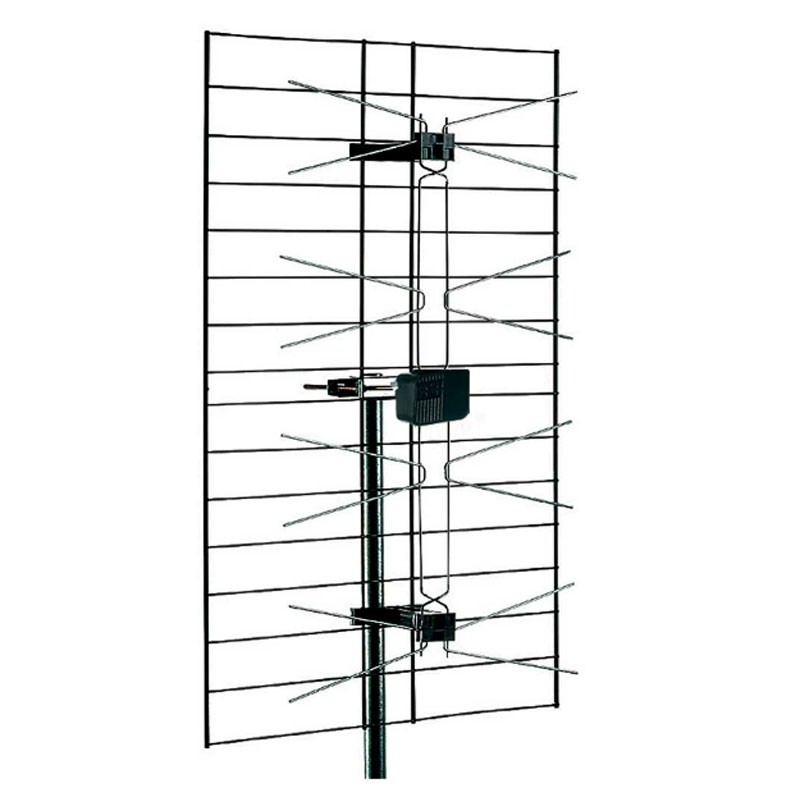

Fracarro PU4AF700 panel antenna LTE UHF band E21-E69 217450
FRA 217450
8016978102983
Fracarro PU4AF700 single panel antenna, UHF band with F connector, 5G filter and aluminum radiating elements.
Fracarro PU4AF700 panel antenna LTE UHF band E21-E69 217450
€29.38
Tax included
€29.38
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 27
: 15
Pay in installments with Klarna
Specifications:
- Fracarro Series
- Elements no.: 4
- UHF band
- Channels: E21-E48
- Bandwidth MHz: 470-694
- Gain: dBi 13
- Forward-backward ratio dB: 21
- Reflection loss dB: -16
- Beam width: (3dB) °±30
- Wind resistance 120Km/h 729N/m²: Kg (N) 4.0 (39.2)
- Connector: F type
- Impedance: Ohm 75
- Maximum pole attachment diameter (Ø): mm 60
- Max pole attachment diameter: mm 60
- Dimensions: 71 x 38.5 cm
Accessories:
- Horizontal polarization: Included
- Horizontal zenith adjustment: N.P.
- Vertical polarization : PVP (210002)
- Vertical zenith adjustment: N.P.
- Auxiliary cradle: N.P.
Advantages:
- Steel reflector and aluminum radiating elements.
- Especially suitable in areas where the signal is weak or where high directivity is needed
- Very low vertical section allows installation in locations with special climatic conditions, such as snowy areas
- A 5G filter has been inserted into the dipole radiator to ensure the quality of the distributed signal and to achieve excellent filtering of 5G and 4G interfering signals in the LTE band (694-860 MHz) reserved for mobile telephony
Ottimo prodotto , semplice da montare , leggera e ottima ricezione
Presa per sostituire la vecchia antenna, ha ottenuto i complimenti dall'istallatore dopo la prova con lo strumento apposito.Molto buona
Perfette comode con due tasselli a gancio e via . Ottima ricezione senza preaamplificazione. ⭐️⭐️⭐️⭐️⭐️⭐️
Modello conosciuto che fa bene il suo lavoro
Come sempre la fracarro di una marca buona eccezionale
Data sheet
- Type: Antennas
- Version: UHF
