Antenna FTE 7 elements Band III F7F VHF F7F10
FTE F7F10
8436023593434

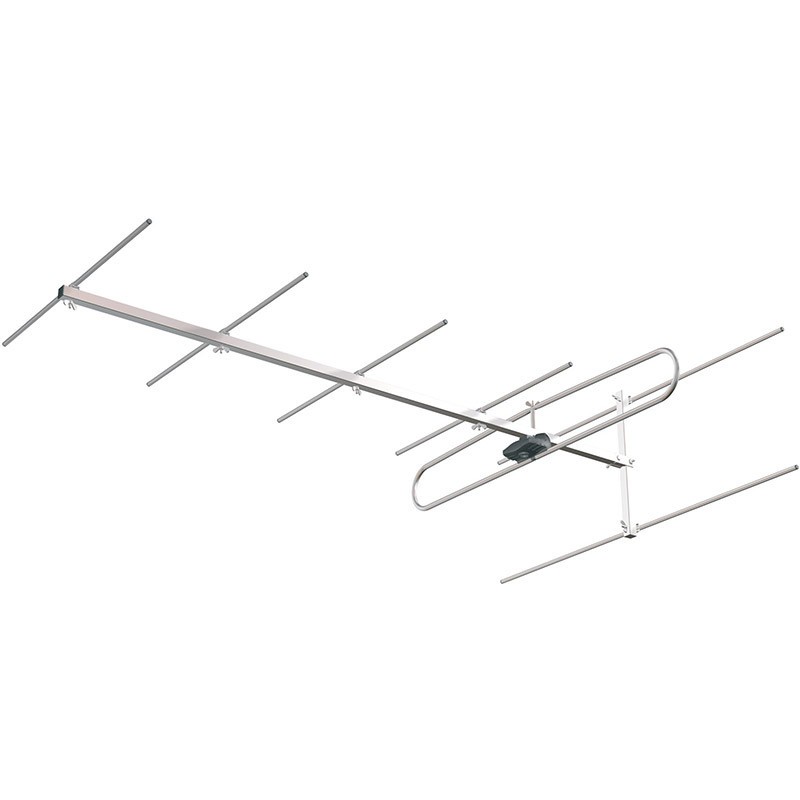

Antenna FTE Yagi Band III VHF 7 elements D channels H2, the antenna is made with closed dipole and carrying cradle 18 x 18 x 0.8 mm with tube elements of 10 x 08 mm. The antenna is supplied completely pre-assembled and dipole with F connector.
Antenna FTE 7 elements Band III F7F VHF F7F10
€28.69
Tax included
€28.69
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 30
: 2
Pay in installments with Klarna
STRENGTHS
- Quick and easy assembly
- Particularly robust with 18 x 18 mm cradle
- Pole mount suitable for both horizontal and vertical polarization with zenithal adjustment.
APPLICATIONS
Installs in optimal reception conditions. Can be installed in horizontal and vertical polarization
TECHNICAL DATA
- No. of elements 7
- Band BIII
- Channels C5 ÷ C12
- Gain - dBi 11
- Forward/reverse ratio - dB 14
- Beam width -3 dB (H/V) 48 / 74
- Wind resistance 120 km/h (720 N/m2) - N 42
- Connector type F
- Impedance - Ohm 75
- Horizontal and vertical polarization
- Pole connection diameter - mm 28 ÷ 60
- Dimensions (W x H x D) - mm 813 x 243 x 1165
- Unit weight - kg 1.4
- Reflector Ø 10 x 0.6 / curtain
- Cradle dimensions - mm 18 x 18 x 0,8
- Accessories including connector F protective cap
There are no reviews
Data sheet
- Type: Antennas
- Version: BAND 3
