Antenna Fracarro LP LTE band 3 UHF channels 16 plus 16 216268
FRA 216268
8016978099054

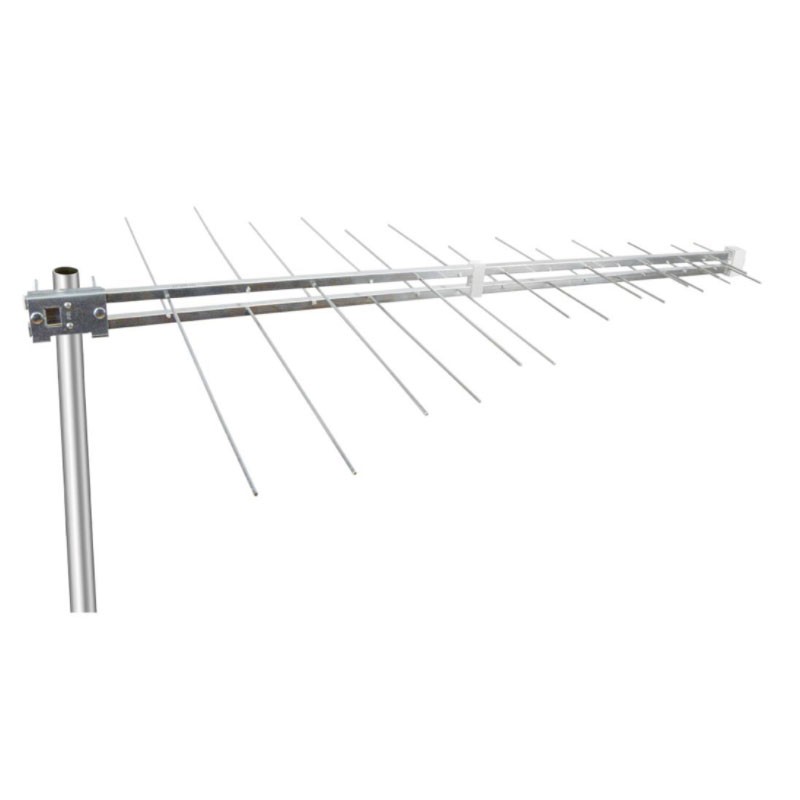

Log periodic Fracarro LP345HV LTE wideband antenna (III and UHF) pre-assembled, with the following characteristics
- Elements n°: 16+16
- Band: 3+DAB / UHF
- Channels: E5-E12 + DAB / E21-E60
- Bandwidth MHz: 174-240 / 470-790
- Gain: dBi 9 / 11
Antenna Fracarro LP LTE band 3 UHF channels 16 plus 16 216268
€16.44
Tax included
€16.44
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 14
Pay in installments with Klarna
Features:
- Fracarro series
- Forward/reverse ratio: dB 24 / 32
- Reflection loss: dB -13 / -13
- Beam width (-3dB): ±34 / ±31 °
- Wind resistance 120 Km/h (720N/m²): kg (N) 3.9 (38.25)
- Connector Type: Clamp
- Impedance Ohm: 75
- Maximum pole diameter (Ø) mm: 60
- Dimensions (W x H) cm: 115 x 86
- Weight: 1.04 Kg
Accessories:
- Horizontal polarization: Included
- Horizontal polarisation: PV10 (210011)
- Vertical polarisation: Included
- Vertical polarisation: PV10 (210011)
- Auxiliary cradle: N.P.
Advantages:
- Thanks to the special pole mount it is possible to install the antenna both in vertical and horizontal polarisation without adaptors or other accessories
- The geometric distribution of the dipoles has been redesigned to obtain an excellent filtering for interfering signals in the 4G LTE band above 790 MHz reserved for mobile telephony
- Equipped with excellent mechanical resistance of fixing the elements to the cradle, excellent mechanical resistance to rotation on the pole, good electrical performance
- Characterized by filtering for 4G LTE interferents
- Extremely easy installation thanks to the clamp connector
- White colourantenna
Data sheet
- Type: Antennas
- Version: UHF
