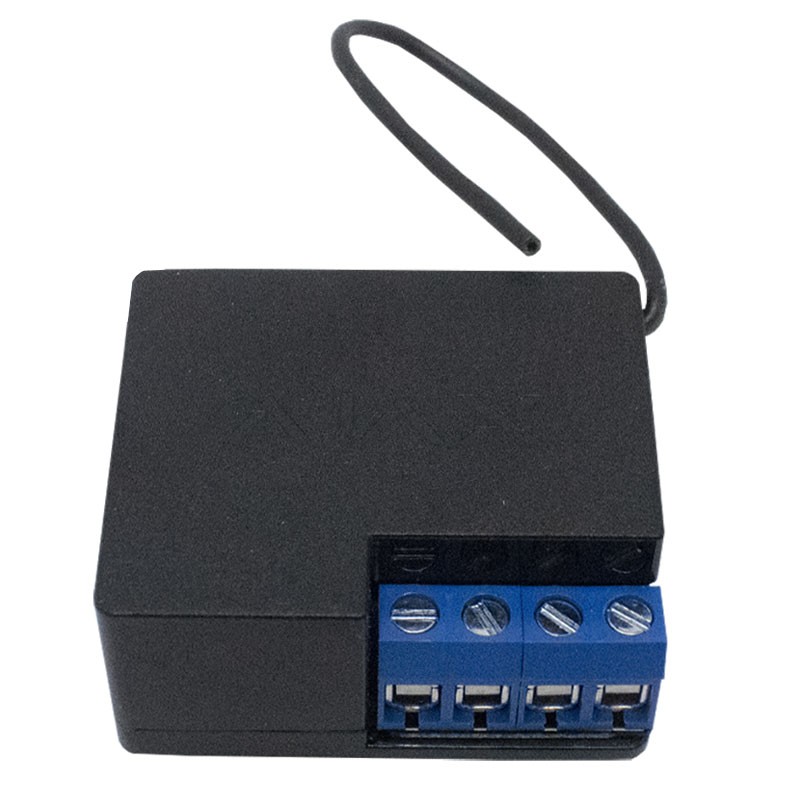

Ajax Radio Relay Module 7/24V 3KW RELAY
08T 38204
Ajax Radio Relay Module 7/24V 3KW low current for remote control of appliances
Ajax Radio Relay Module 7/24V 3KW RELAY
€42.10
Tax included
€42.10
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 40
: 4
Pay in installments with Klarna
Versatile settings and low power consumption make Relay a universal tool for controlling equipment. The dry contact is not galvanically connected to the device's power supply so it can be used in both low voltage and domestic networks. Bistable and pulsed modes are available. The relay can be easily connected to a power supply coupled with a backup battery.
Features:
- Classification Radio relay module
- Wireless device type
- Installation In switchboards, junction boxes
- Compatibility Works only with Ajax hubs and signal repeaters
- Actuation device Electromagnetic relay
- Service life of the device 200,000 switching operations
- Overvoltage protection Maximum - 36.5 V, min - 6.5 V
- Maximum load current 5 A at 36 V DC, 13 A at 230 V AC
- Maximum overcurrent protection No
- Maximum protection against overheating > 65°C at installation location
- Electricity meter function No
- Check of energy consumption parameters Voltage
- Power supply 7 - 24 V (DC only)
- Operating mode Pulse - Bistable Contact status
- Contact status Normally open Normally closed Pulse duration
- Pulse Duration 0.5255 s
- Operating temperatures From 0°? to +64°?
- Max. permissible humidity Up to 75
- Housing protection class IP20
- Anti-tampering systems Anti-counterfeiting protection - Inhibition detection
- Dimensions 39 × 33 × 18 mm
- Weight 25 g.
Package contents:
- Relay
- Installation set
- User Guide.
Dispositivo già utilizzato e funziona come da specifiche del fornitore
ottimo prodotto, efficiente e facilissima la sua installazione
Il prodotto si presenta bene ma Non lo ho ancora provato
Data sheet
- Type: Relays
