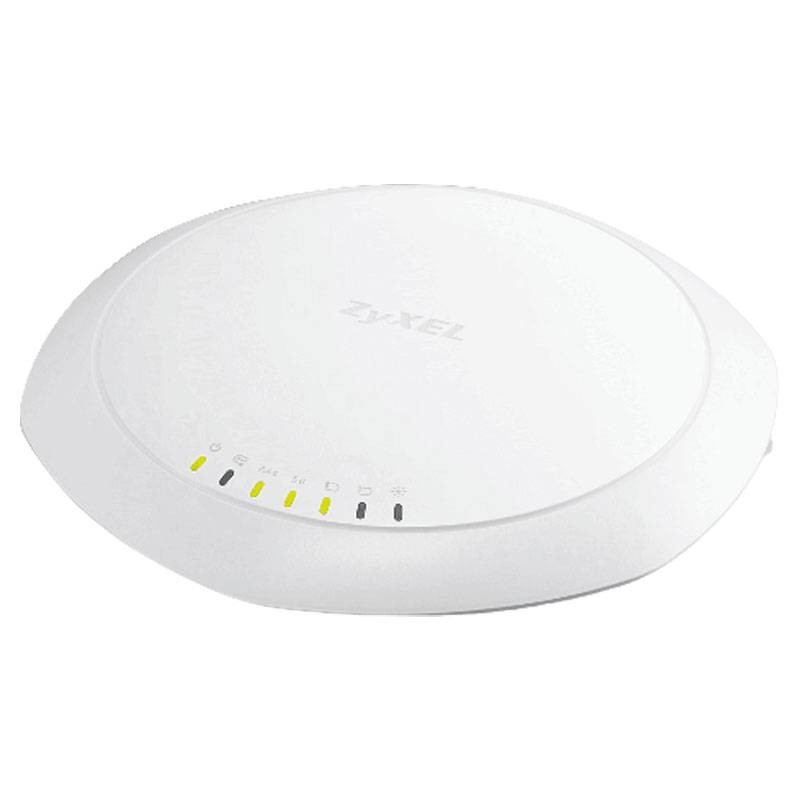

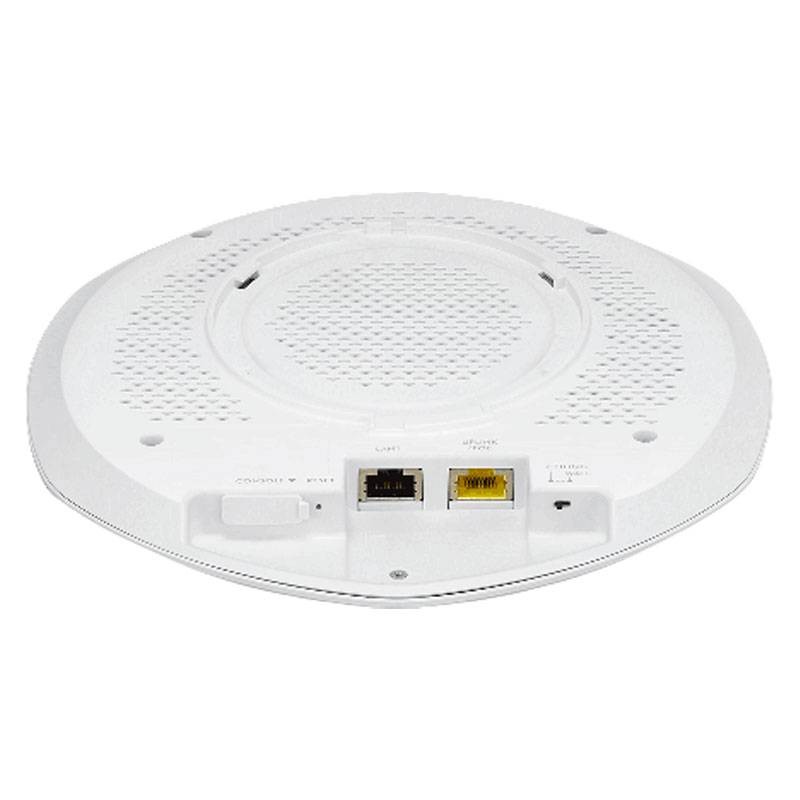

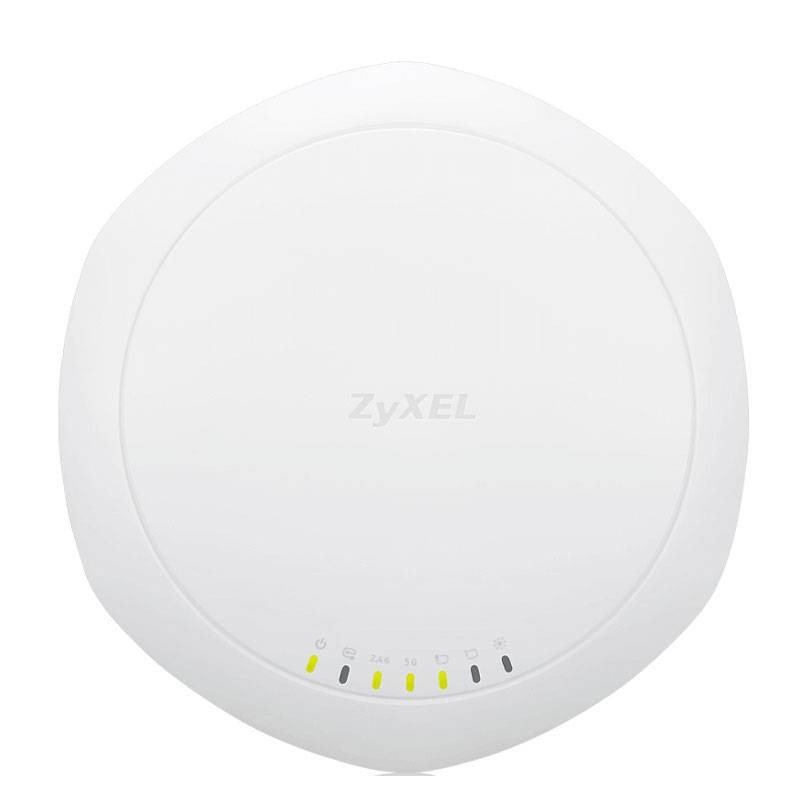

Zyxel dual-radio 802.11ac WiFi PoE access point NWA1123ACPRO-EU0
ZYX NWA1123ACPRO-EU0
4718937594665
Zyxel dual-radio 802.11ac WiFiPoE access point with the following features:
- Wireless frequency: 2.4 GHz and 5 GHz
- Radio: 2
- Number of antennas: 3T3R MIMO
- Receive sensitivity: min. Rx sensitivity up to -102 dBm
- Number of LAN 10/100/1000M: 2
- PoE: yes
- PoE power consumption: 12.48 W (802.3at PoE)
Zyxel dual-radio 802.11ac WiFi PoE access point NWA1123ACPRO-EU0
€112.32
Tax included
€112.32
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 7
The Zyxel NWA1123-AC PRO 802.11ac hybrid access point supports a combined data rate of up to 1.75 Gbps. With Zyxel's innovative dual-optimized antenna design and commitment to "RF First" for high performance and reliable connections through design, NWA1123-AC PRO offers increased coverage and better connection speeds for every customer.
NWA1123-AC PRO supports NebulaFlex, giving you the ability to easily switch from stand-alone to license-free Nebula cloud management at any time with a few simple clicks.
The struggle between performance and environment cohesion when deploying enterprise wireless APs is a thing of the past. The elegant exterior of NWA1123-AC PRO is suitable for any interior that not only outperforms, but also integrates better with the interior and also prevents equipment theft.
To create a fully enhanced WiFi experience, NWA1123-AC PRO has taken a big step toward optimized antennas and RF design through optimized software and innovative hardware. Equipped with DCS and load balancing, NWA1123-AC PRO delivers a smooth and superior WiFi experience in workplaces. NWA1123-AC PRO is built with an optimized dual antenna module, premium power amplifiers and low-noise elements to deliver superior wireless performance.
The upgraded version of NWA1123-AC PRO simplifies deployment without a controller. Out of the box and complete three-step configuration with ZON then NWA1123-AC PRO can operate autonomously without additional computer or special management tool, as well as allow administrator easy monitoring via any SNMP tool in hand, even if not a network expert can easily manage it.
NWA1123-AC PRO offers repeater/root-AP mode compatibility with Zyxel Unified Pro and Unified AP, enabling users to extend wireless connectivity via enterprise-grade WDS to difficult wiring locations without the hassle of troublesome cabling. In addition, as an ideal solution, NWA1123-AC PRO offers a number of practical features such as multiple SSIDs and robust WiFi security.
Anytime, anywhere with the Nebula mobile app:
- Easy device onboarding with QR code scanning and setup wizard
- Network and device status at a glance
- Wi-Fi sharing via QR code or mobile messaging app
- Access control of network clients
- Real-time troubleshooting tools
- Push notifications for abnormal network events
2.4 GHz frequency band (802.11 b/g/n):
- United States (FCC): 2.412 to 2.462 GHz
- Europe (ETSI): 2.412 to 2.472 GHz
5 GHz frequency band (802.11a/n/ca):
- U.S. (FCC): 5.15 to 5.25 GHz; 5.725 to 5.850 GHz
- European (ETSI): 5.15 to 5.35 GHz - 5.470 to 5.725 GHz
Premium 802.11 features:
- 3x3 Multiple-Input Multiple-Output (MIMO) with three spatial streams
- Maximum Ratio Combination (MRC)
- 20, 40 and 80 MHz channels
- PHY data rates up to 450 Mbps (11n) + 1.3 Gbps (11ac)
- Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
- Support Cyclic Delay Diversity (CSD)
- Support for maximum likelihood demodulation (MLD)
- Low-density parity check (LDPC) support
Typical transmission output power (dBm):
- US (FCC) 2.4 GHz : 27
- US (FCC) 5 GHz : 27
- EU (ETSI) 2.4 GHz : 18
- EU (ETSI) 5 GHz : 24
- Gain of the 2.4 GHz antenna: Ceiling: 3 dBi - Wall: 4 dBi
- 5 GHz antenna gain: Ceiling: 4 dBi - Wall: 5 dBi
Supports data rate:
- 802.11a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbp
- 802.11n: up to 450 Mbps in MCS15 (40 MHz)
- 802.11ac: up to 1300 Mbps in MCS9 (80 MHz)
Ethernet:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.11 ab
- IEEE 802.3au
- IEEE 802.3az
- IEEE 802.3at
Wi-Fi:
- 802.11b: DBPSK, DQPSK, CCK
- 802.11g: BPSK, QPSK, 16-QAM, 64-QAM
- 802.11a: BPSK, QPSK, 16-QAM, 64-QAM
- 802.11n: BPSK, QPSK, 16-QAM, 64-QAM
- 802.11ac: BPSK, QPSK, 64-QAM, 256-QAM
Radio:
- FCC Part 15C
- FCC Part 15E
- FIND EN 300 328
- IN 301 893
- LP0002
EMC:
- FCC Part 15B
- IN 301 489-1
- IN 301 489-17
- EN55032
- EN55024
- EN61000-3-2/-3
- BSMI CNS13438
Safety:
- NEL 60950-1
- IEC 60950-1
- BSMI CNS14336-1
Features:
- WDS (stand-alone)
- ZyMesh (AP controller)
- Smart Mesh (Nebula Control Center)
- Fast roaming Pre-authentication, PMK and 802.11 r/k/v caching
- DCS (dynamic channel selection)
- Load balancing
- Wi-Fi security
- WEP
- WPA/WPA2-PSK
- WPA/WPA2-Enterprise
- IEEE 802.1X
- MAC Filtering
- IPv6 Support
- VLAN
- DHCP client
- Standalone AP mode
- Power Supply 802.3at PoE only (no DC jack)
- MTBF: 1,005,235 hours
- Operating Temperature: 0°C to 50°C/32°F to 122°F - Humidity 10% to 90% (non-condensing)
- Storage Temperature: -40°C to 70°C/ -40°F to 158°F - Humidity 10% to 90%
- Dimensions and Weight: 203.9 x 191.7 x 34.7 (WxDxH) 445 grams
Accessories included: PoE injector and Ethernet 45 cable (optional), Wall/ceiling mount plate.
