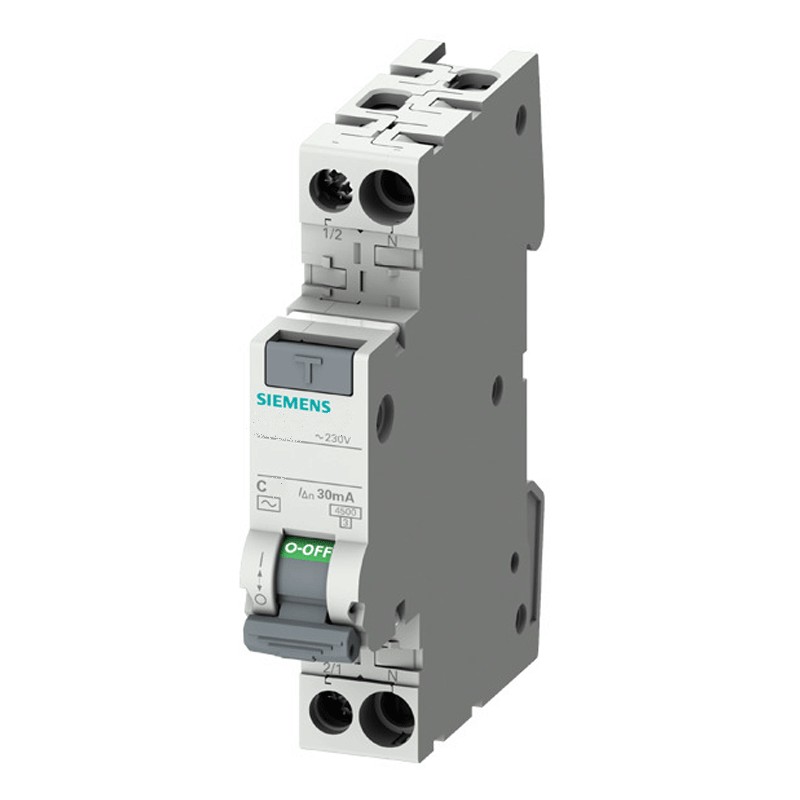

Siemens 10A 4,5KA 1P+N Type A 30ma Differential Thermal Magnetic Circuit Breaker 5SV13137KK10
SIE 5SV13137KK10
4001869557656
Siemens 4,5KA Differential Magnetothermal 1P+N Type A, rated fault current: 30MA, sizing current: 10A, dimensions: 1 Module.
Siemens 10A 4,5KA 1P+N Type A 30ma Differential Thermal Magnetic Circuit Breaker 5SV13137KK10
€46.85
Tax included
€46.85
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 73
: 70
Features:
- Product type: differential switch
- Suitable for recessed installation: YES
- Trip characteristic: C
- Overvoltage category: 3
- Energy limitation class: 3
- With locking device: YES
- Neutral conductor connection: YES
- Rated current: 10 A
- Rated fault current: 0.03 A
- Frequency: 50 Hz
- Pollution degree: 2
- Degree of protection (IP): IP20
- Width in units of division: 1
- Number of poles (total): 2
- Number of poles protected: 1
- Rated short-circuit breaking capacity according to EN 61009-1:4.5 kA
- Rated breaking capacity according to EN 61009:4.5 kA
- Rated breaking capacity according to IEC 60947-2:4.5 kA
- Recessed depth: 70.0 mm
- Protection against untimely tripping: YES
- Impulse current resistance: 1.0 kA
- Rated impulse voltage resistance Uimp: 4.0 kV
- Multi-wire connectable conductor cross section:0.75-16.0 mm²
- Single-wire pluggable conductor cross section:0.75-16.0 mm²
- Ambient temperature during operation:45--25 °C
- Rated voltage: 230 kV
- Rated insulation voltage Ui: 253 V
- Type of fault current: A
- Voltage type: AC
There are no reviews
Data sheet
- Modules:
- 1
- Poles:
- 1P+N
- Curve:
- C
- Power:
- 4.5KA
- RCD Type:
- A
- Differential current :
- 0.03A
- Amps:
- 10A
- Circuit Protections:
- RCBO
