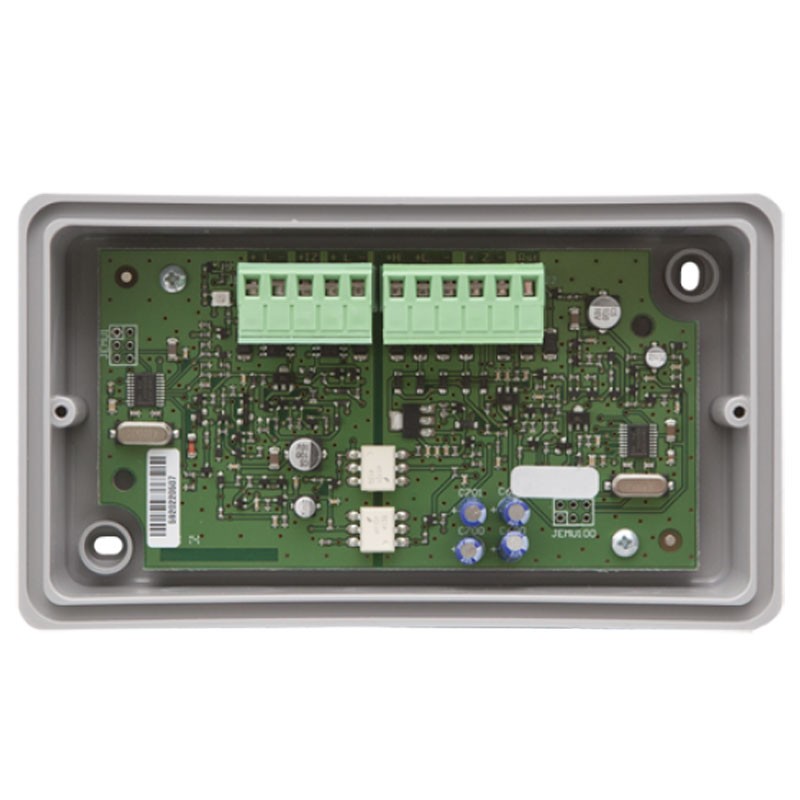

Comelit Address Module for Conventional Fire Zone 41ISC000
COE 41ISC000
8023903288186
Comelit addressed module for conventional firefighting zone, with the following features:
- Supply voltage 15÷32VDC
- Absorption with 1 LED on (mA) 3
- Maximum absorption with external power supply: 150μА @ 27VDC
- Maximum absorption with power supply from Loop (stand-by) (mA) 5.5
- Maximum absorption of sensors in alarm: 20mA (zone powered by +L), 50mA (zone powered by +H)
- Degree of protection IP21
- Isolator Yes
- Standards EN EN54-17, EN54-18
- Dimensions: Height 80mm - Width 142mm - Depth 45mm
- Type ABS cover materials
- Product color White, transparent cover
- Weight: 230 grams
- Operating temperature: -1/+60°C
- Cable cross section for terminals (mm) 0.4 ÷ 2.5mm
Comelit Address Module for Conventional Fire Zone 41ISC000
€50.83
Tax included
€50.83
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 38
: 5
The 41ISC000 addressed module, with integrated on-board isolator, allows a separately powered conventional zone to be interfaced to the addressed fire detection system. It is loop-powered and controlled by the control panel by means of the communication protocol. Separate 24V terminals for line power supply. The module is supplied in a plastic case suitable for wall mounting equipped with a transparent cover for easy visual inspection. Certified according to EN 54-17 and EN 54-18.
There are no reviews
Data sheet
- Type:
- Indexed Modules
