Comelit Indexed Module 2 Inputs 2 Outputs 41IOM122
COE 41IOM122
8023903351316

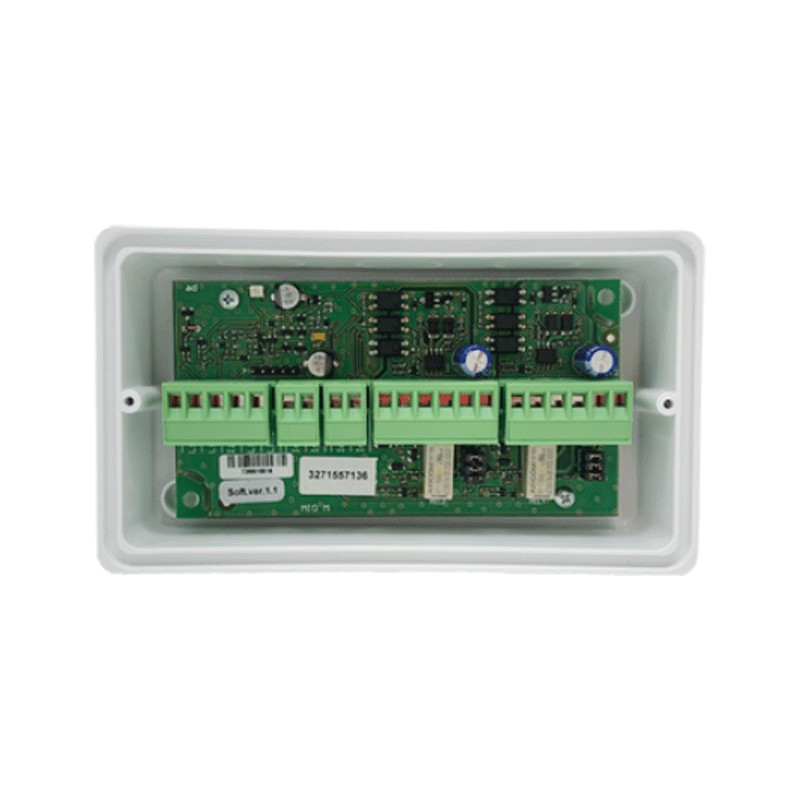

Comelit indexed module 2 Inputs 2 Outputs with integrated on-board isolator.
Controls two balanced inputs and drives two supervised or relay outputs, depending on the placement of the 2 jumpers inside the module.
Comelit Indexed Module 2 Inputs 2 Outputs 41IOM122
€78.66
Tax included
€78.66
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 16
: 3
Pay in installments with Klarna
It is loop-powered and controlled by the control panel by means of the communication protocol. The module is supplied in a plastic case suitable for wall mounting equipped with a transparent cover for easy visual inspection. Certified according to EN54-17 and EN 54-18.
Features:
- Isolator Yes
- Standards EN EN54-17, EN54-18
- Height (mm) 80
- Width (mm) 142
- Depth (mm) 45
- Cover material type ABS
- Product color White, transparent cover
- Product weight (g) 181.44
- Operating temperature (°C) -10 to 60
- Operating humidity (RH max @40°C) (%) 0 ÷ 96
- Cable cross section for terminals (mm) 0.4 ÷ 2.5
- Supply voltage 15÷32VDC
- Rated power consumption (relay outputs selected) <0.87mA@27VDC
- Absorption with 1 led on (relay outputs selected) 3.9mA
- Current consumption with 2 leds on (relay outputs selected) 7.2mA
- Rated current consumption (monitored outputs selected) <1.03mA@27VDC
- Current consumption with 1 led on (monitored outputs selected) 4.15mA
- Current consumption with 2 leds on (monitored outputs selected) 7.2mA
- Maximum output current(s) 2A@30VDC / 0.5A@125Vac
- No. supervised inputs (n°) 2
- No. relay outputs or No. monitored outputs (no.) 2
- IP degree of protection IP21
There are no reviews
Data sheet
- Type: Indexed Modules
- Degree of protection: IP20
