Fischer flat tile hook fixed GTP 00071199
FIS 00071199
8001132711996

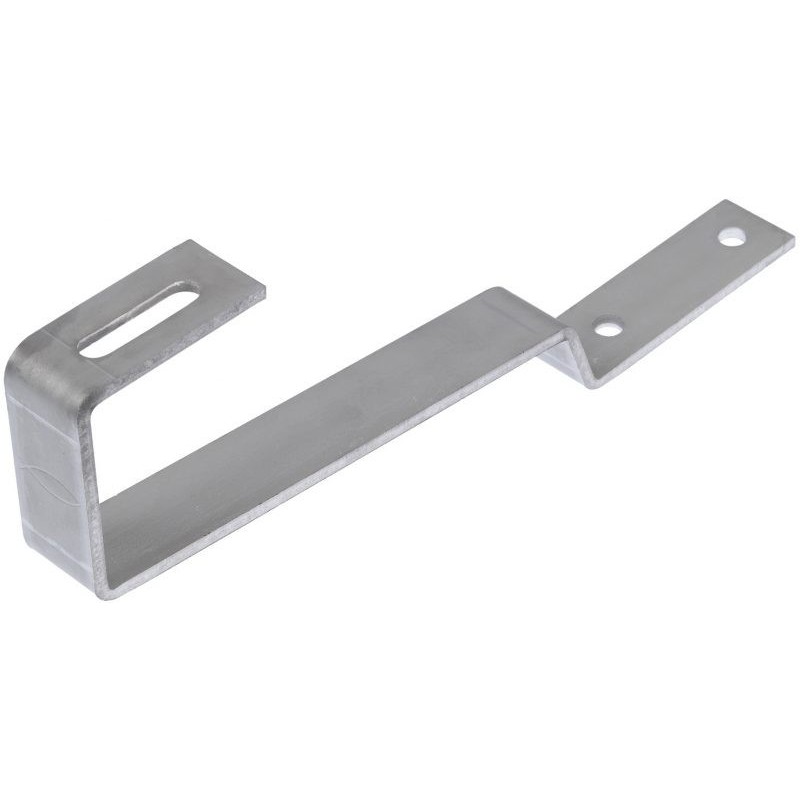

Fischer GTP A2 fixed hook for flat tile roofing, with the following features:
- Total height: 120 mm
- Tightening torque : 10 Nm
- Clamping wrench: 13 mm
- Certifications: TUV - R 60154136

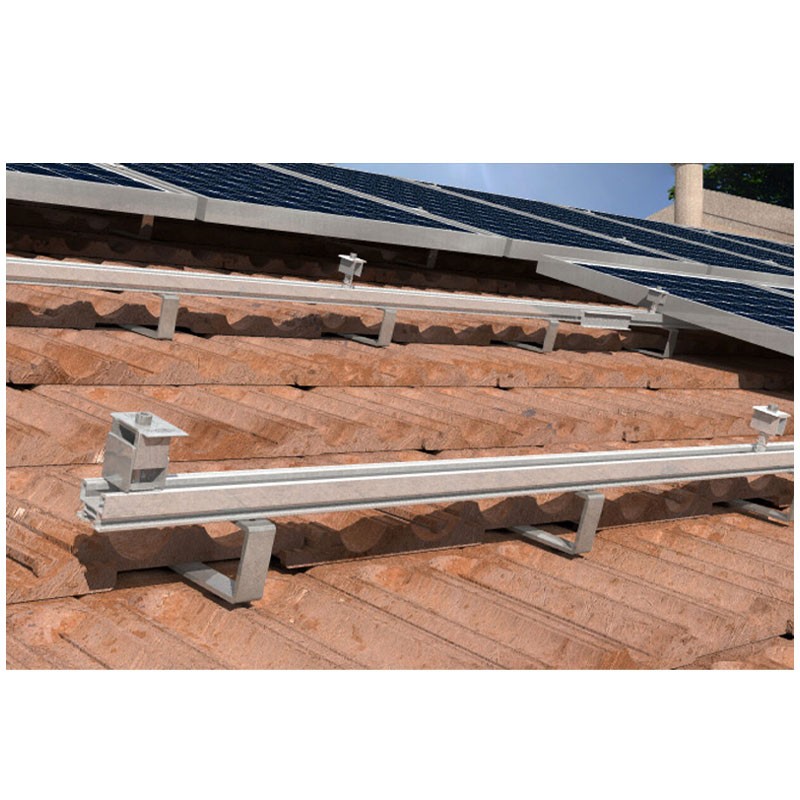

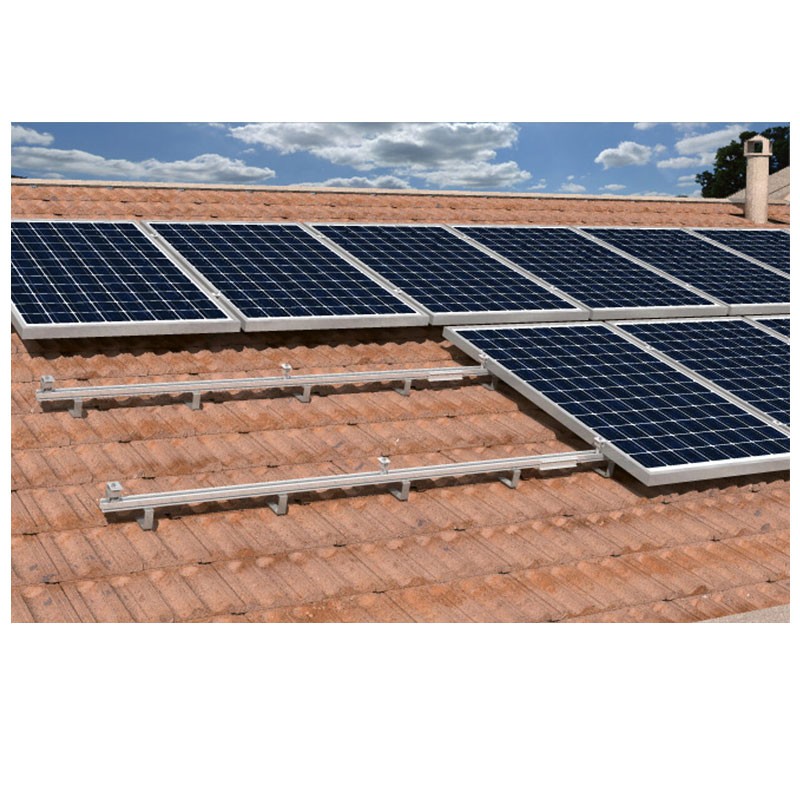

Applications: Suitable for pitched roof system with hooks, flat tile roofing membrane with Solar-light Profile and solar panels.
Fischer flat tile hook fixed GTP 00071199
€9.86
Tax included
€9.86
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 426
: 16
Pay in installments with Klarna
Advantages:
- Adaptable: base plate with Ø9 mm holes in axis is suitable for fastening on wooden support beams
- Version: stainless steel hook X5CrNi 18-10 according to EN 10088-2:2005
- Material: stainless steel class A2-70 according to EN ISO 3506-1/2;2010
Assembly:
- Define the spacing of the hooks according to the snow and wind loads of the installation area of the system
- Locate the position of the hooks according to the supporting structure and layout of the plant
- Lift the roof tile and attach the hook using the appropriate anchor determined according to the type and stratigraphy of the substrate
Prodotto adatto alle nostre esigenze installative
Tutto okay merce come da descrizione, spedizione veloce
Data sheet
- Type: Fixing Accessories
