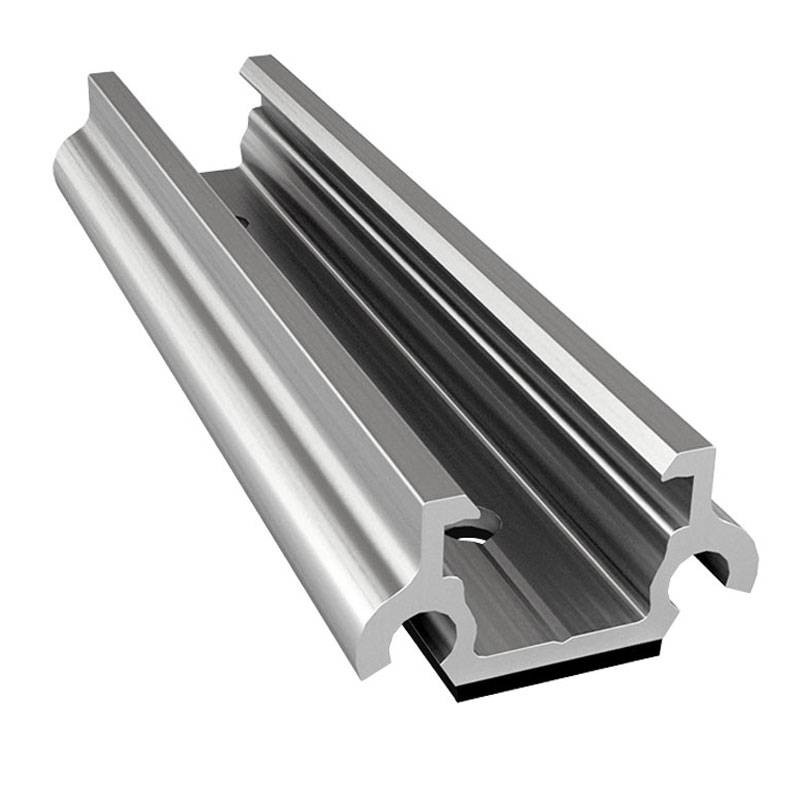

Contact aluminum bracket for modules in horizontal for photovoltaic FIXPRT2038
IIC FIXPRT2038
8028045094282
Contact bracket for modules in horizontal coplanar to trapezoidal sheet metal with the following characteristics:
- Surface treatment: T6
- Tensile breaking load Rm: 230 Mpa
- Elasticity limit load Rp 0.2: 200 Mpa
- Elongation over 50 mm: 12%
- Hardness HB: 72

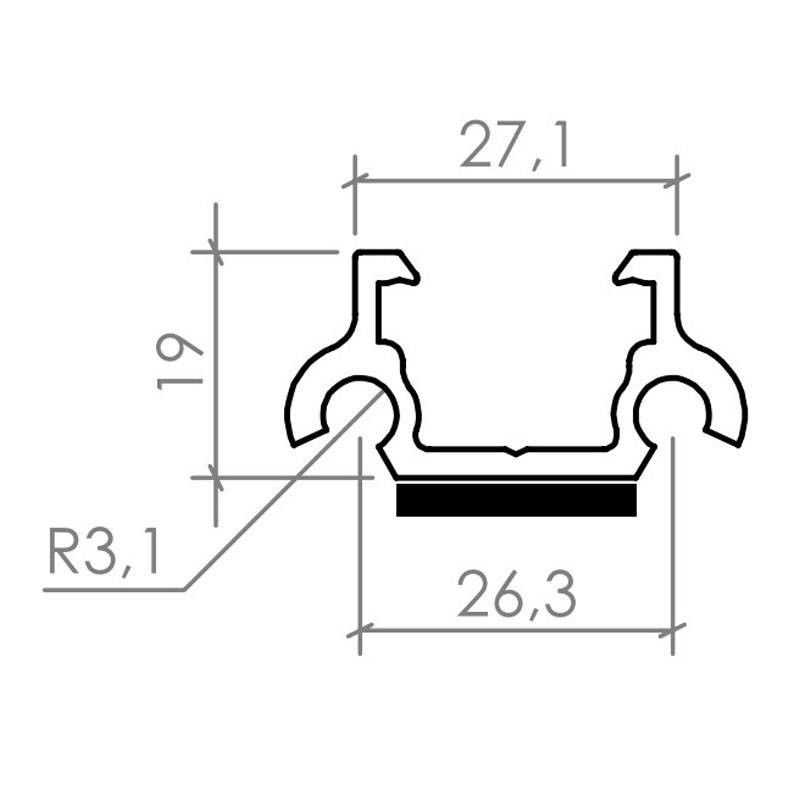

- Profile cross-section: 200 mm2
- Certificate: ICIM NO. 003DX/3
Contact aluminum bracket for modules in horizontal for photovoltaic FIXPRT2038
€3.01
Tax included
€3.01
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 482
: 134
Pay in installments with Klarna
Frequently bought together
The system allows rapid installation of the FIX PRT2038 profile parallel to the direction of the sheet metal and directly on the crest of the sheet metal by means of a bimetallic self-tapping screw equipped with a gasket.
The use of such a system is not constrained by the dimensions of the sheet metal and the spacing of the substructure. The modules are clamped at the long side using universal clamps.
There are no reviews
Data sheet
- Type: Fixing Accessories
