Contact Universal clamp for photovoltaic Frame 29 to 50 mm KMCU2950
IIC KMCU2950
8028045094503

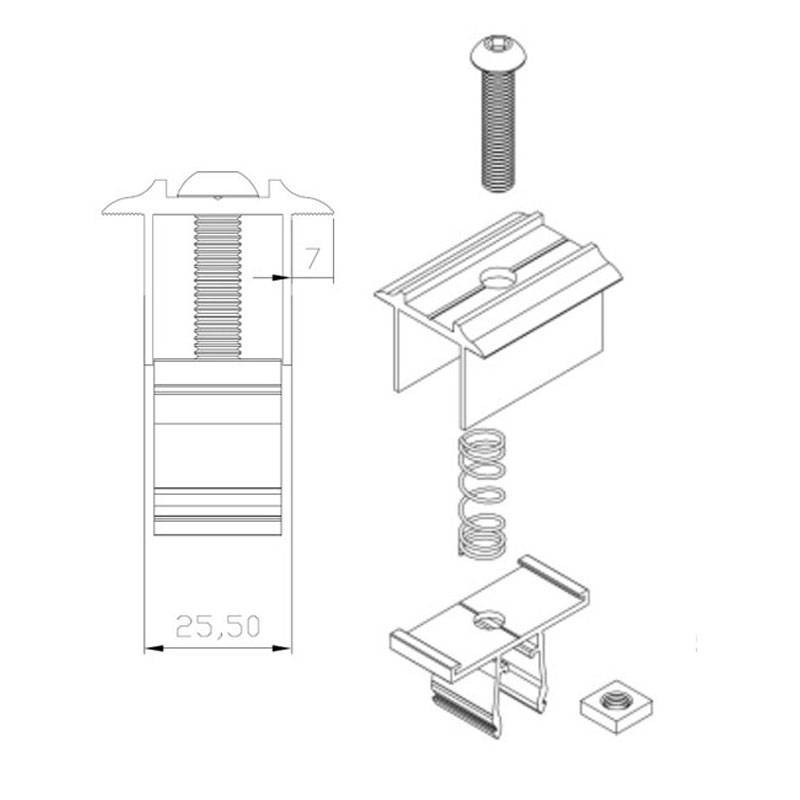

Contact Italia universal central clamp for pre-assembled photovoltaics compatible with all types of module holder profiles with the following characteristics:
- Surface treatment: T6
- Tensile breaking load Rm: 230 Mpa
- Elasticity limit load Rp 0.2: 200 Mpa
- Elongation over 50 mm: 12%
- Hardness HB: 72
- Coefficient of linear thermal expansion between 20°C and 100°C (1/°K): 23*10^-6
- Predisposition to oxidation surface treatment: excellent
- Maximum Sensed Tear Load: 375 kg
- Recommended tightening torque: 13 Nm
- Tightenable module thickness: 29 50 mm
Contact Universal clamp for photovoltaic Frame 29 to 50 mm KMCU2950
€2.34
Tax included
€2.34
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 329
Pay in installments with Klarna
Frequently bought together
Descrizione non trovata
There are no reviews
Data sheet
- Type: Fixing Accessories
