Automation kit for 5 Yokis Urmet wired roller shutters 5454554
UTD 5454554
3760054545540

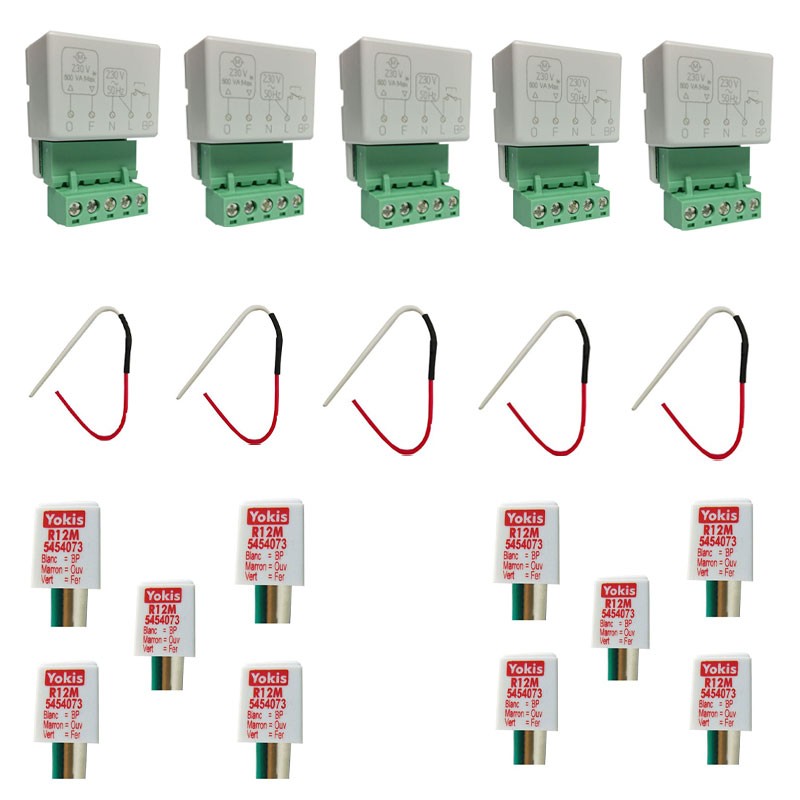

Urmet Yokis complete kit for automation of 5 rolling shutters, with wired control, consisting of:
- 5-piece rolling shutter modules (art MVR500E)
- 2 packs of 5 interfaces for double button (art R12M)
- 1 pack of 5 diodes for centralization (art D600V)
Automation kit for 5 Yokis Urmet wired roller shutters 5454554
€319.07
Tax included
€319.07
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 49
Pay in installments with Klarna
Technical specifications of KIT components:
5-piece rolling shutter modules (item MVR500E): The module allows you to centralize an unlimited number of rolling shutters with a single pilot wire. Its built-in torque control prevents damage to the rolling shutter or motor in the event of an obstacle. The module is compatible with all types and brands of rolling shutters with 3-wire motors (Somfy, Aprimatic, Bubendorff, etc...). Built-in daily programming: allows you to configure multiple areas, create scenarios, add a remote control. It's easy to connect: removable terminal block simplifies wiring.
Specifications:
- Mains voltage: 230V ~ (+10% - 15%) - 50Hz
- Power: 3-wire motor, 230V ~ 2A max.500VA
- Ambient temperature: -20°C + 50°C
- Sound level: < 60dB at 20cm
- Relative humidity: 0 to 99%
- Dimensions (WxHxD): 28x42x18mm
2 packs of 5 interfaces for double button (art R12M): Accessory to be used for managing double pushbuttons (not interlocked) in case you need to have separate control pushbuttons to turn on/off or raise (lower), either with local or centralized controls.
1 pack of 5 diodes for centralization (art D600V): Accessory to be used for command management in the case of wired centralization: the accessory is to be used for each module involved in centralization, to avoid local commands circulating on the pilot wire.
There are no reviews
Data sheet
- Type: Complete kits
