KIT FTE antenna + power supply + amplifier + cable KITDTT6
FTE KITDTT6
8436049499178

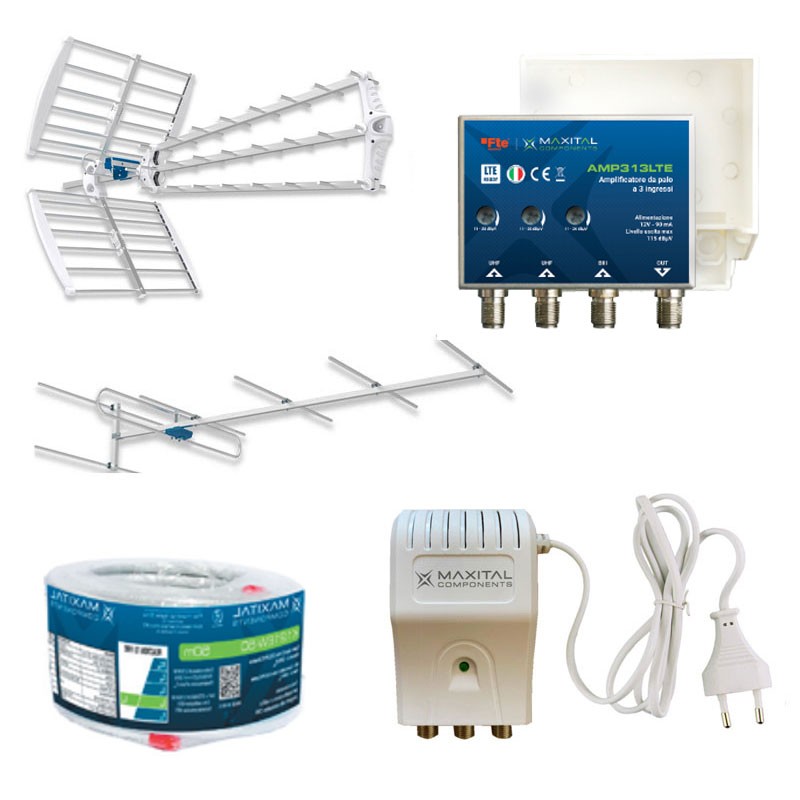

KIT FTE Maxital DDT6 consisting of:
- DTT quick mount UHF antenna HYDRA45LTE
- Band III antenna F7F10
- 12V power supply LPS202 2 out
- AMP313LTE pole mount amplifier 3 inputs, VHF / UHF / UHF
- 50-meter skein of 5mm coax cable K121EW(FOR FREE)
Designed for areas with digital signals, allows for small installation.
KIT FTE antenna + power supply + amplifier + cable KITDTT6
€129.66
Tax included
€129.66
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 7
Pay in installments with Klarna
APPLICATIONS: F acilitates the choice according to the reception of TV signals and the type of TV and SAT system to be realized. Allows for the realization of the overhead installation for the reception of TV-DTT signals.
TECHNICAL DATA OF KIT COMPONENTS:
HYDRA45LTE ANTENNA:
- No. Elements 27
- UHFband
- Channels 21 - 60
- Frequency range - MHz 470 - 790
- Maximum gain - dBi 17
- Forward/reverse ratio 28
ANTENNA 7 ELEMENTS BAND III G11DBI (F7F10):
- No. of elements 7
- Band BIII
- Channels C5 to C12
- Gain - dBi 11
- Forward/reverse ratio - dB 14
- Beam width -3 dB (H/V) -° 48 / 74
- Wind resistance 120 km/h (720 N/m2) - N 42
- Connector type F
- Impedance - Ohm 75
- Horizontal and vertical polarization Yes
- Pole attachment diameter - mm 28 ÷ 60
- Dimensions ( W x H x D) - mm 813 x 243 x 1165
- Unit weight - kg 1.4
- Reflector Ø 10 x 0.6 / curtain
- Cradle dimensions - mm 18 x 18 x 0.8
- Accessories included: F connector + protective cap
AMP313LTE POLE AMPLIFIER:
- Inputs 3
- Bands BIII / UHF / UHF
- Gain - dB 11 ÷ 26
- Gain adjustment - dB 15
- Max output level - dBµV 115
POWER SUPPLY LPS202:
- Inputs 1
- Outputs 2
- Output voltage - VDC 12 Linear
- Output current - mA 200
- Input power supply - VAC / Hz 230 / 50 - 60
COMPLIMENTARY COAXIAL CABLE K121EW-50:
- Length - m 50
- Cable outer diameter - mm 5
- Reaction to fire - CPR EcaClass
- Shielding efficiency Class A
There are no reviews
Data sheet
- Type: Complete kits
