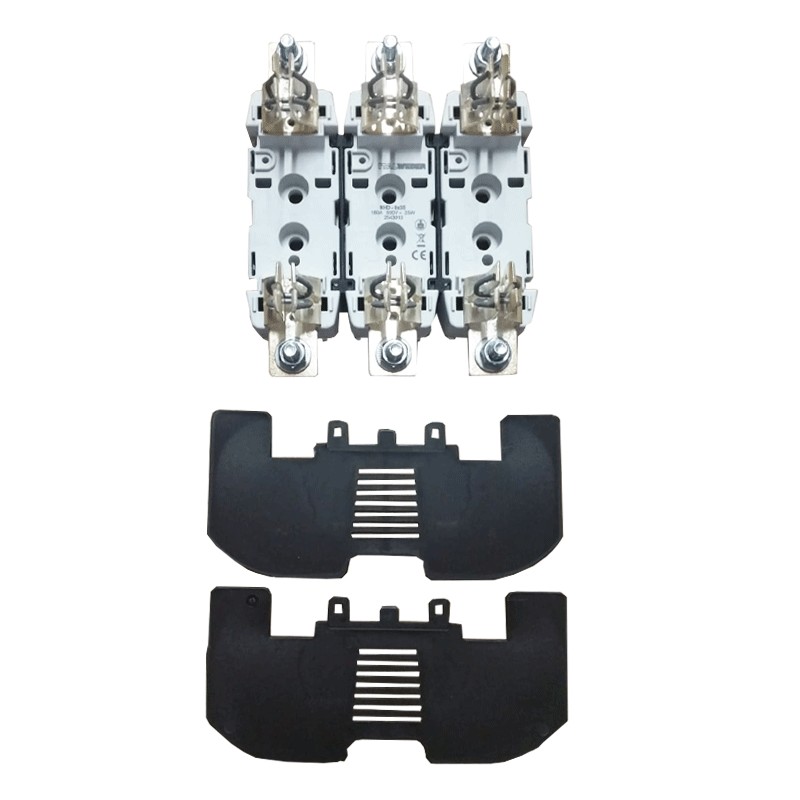

Italweber fuse holder for NH 3P fuses screw fixing 2543010
ITW 2543010
8024873026341
Italweber fuse holder, with the following characteristics:
- Ideal for knife-edge fuses NH series
- 3 poles
- Current In 160A
- Rated voltage 690Vac / 700 Vdc
- Ideal for single and three-pole families
- Rated current up to 630A
- Resistance to short circuit current 50kA (peak 100kA)
Italweber fuse holder for NH 3P fuses screw fixing 2543010
€38.43
Tax included
€38.43
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
Pay in installments with Klarna
Features:
- Italweber series
- Ideal for knife-edge fuses NH series
- 3 poles
- Current In 160A
- Rated voltage 690Vac / 700 Vdc
- Ideal for single and three-pole families
- Screw fixing (NHD), for DIN rail mounting (NHU), with microswitch (NHU/MS)
- Dimensions/size NH-0
- Compliant with IEC 32-1, IEC 32-4, IEC 60269-1, IEC 60269-2, DIN 43620
- Plastic housing (polyamide + 25% glass fibres)
- Degree of self-extinguishing UL94-V0
- Contacts in silver-plated copper
- Bolting material steel quality 8.8
- Rated current up to 630A
- Operating temperature -20°C / +70°C
- Resistance to short circuit current 50kA (peak 100kA)
There are no reviews
Data sheet
- Type: Fuse holder
- Voltage: 690VAC
- Poles: 3P
- Amps: 160A
