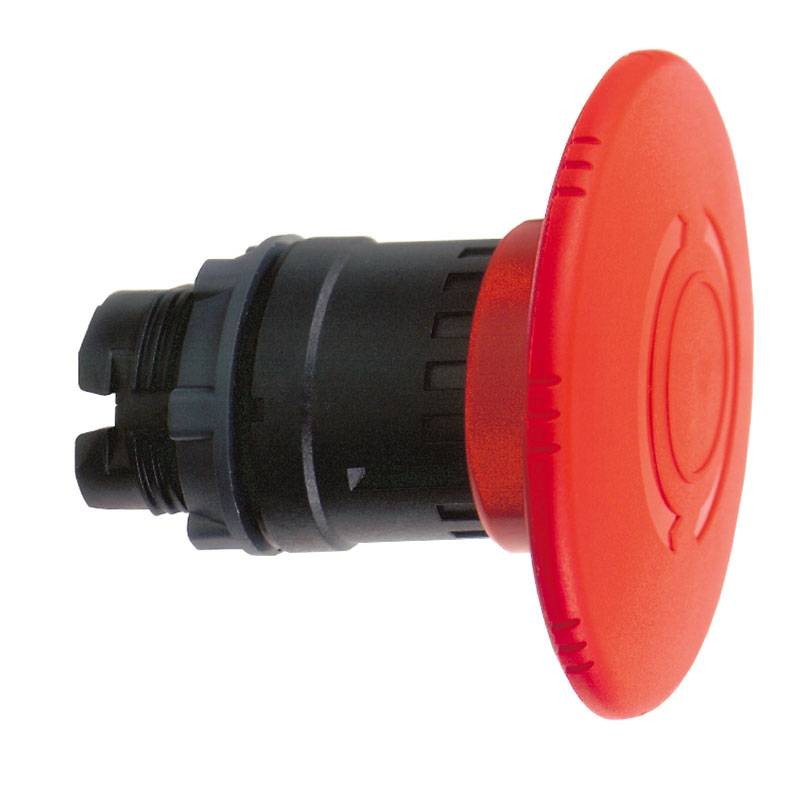

Schneider button red emergency stop diameter 60 ZB5AS864
SNR ZB5AS864
3389118187801
Schneider button emergency stop with the following features:
- Product range: Harmony XB5
- Product type or component: Emergency stop button head
- Product application: Emergency stop button
- Head type: Standard
- Mounting diameter: 22mm
- Head Shape: Circular
- Operator Type: Trigger action and mechanical lock
- Reset: Turn to unlock
- Operator Type: Red mushroom Ø 60 unmarked
Schneider button red emergency stop diameter 60 ZB5AS864
€22.29
Tax included
€22.29
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
Pay in installments with Klarna
Frequently bought together
This Harmony XB5 60 mm mushroom red push-button mushroom head stop/emergency stop works with a snap release mechanism. It provides an ergonomic interface for machine control. Easily installs on compatible full emergency stop and shutdown buttons.
It is clearly visually distinguishable from a distance due to its light color and prominent 60 mm mushroom shape. It is shock, dust, water and vibration resistant due to its IP66 rating. It makes it ideal for operation in harsh environments.
Electrical composition code:
- C7 for <4 single contacts in Direct front mounting on pushbutton
- C8 for <4 single and double contacts in Direct front mounting on pushbutton
- C11 for <3 single contacts in Direct front mounting on pushbutton
- C15 for <1 single contacts in Direct front mounting on button
- SF1 for <3 single contacts in Direct front mounting on button
- SR1 for <3 single contacts in Back mounting on bottom of push button panel
- C10 for <4 single and double contacts in Direct front mounting on button
Features:
- Storage temperature: -40/+70 °C
- Operating ambient temperature -40/+70 °C
- Class II in accordance with IEC 60536
- IP degree of protection: IP66 - IP67 - IP69 - IP69K
- IK degree of protection: IK03
- Resistance to high-pressure washing: 7000000 Pa at 55 °C, distance: 0.1 m
- Vibration resistance: 5 gn (F= 2500 Hz) in accordance with IEC 60068-2-6
- Shock resistance: 30 gn (duration = 18 ms) for half-sine wave acceleration complying with IEC 60068-2-27 - 50 gn (duration = 11 ms) for half-sine wave acceleration complying with IEC 60068-2-27
There are no reviews
Data sheet
- Type: Mushroom push button
