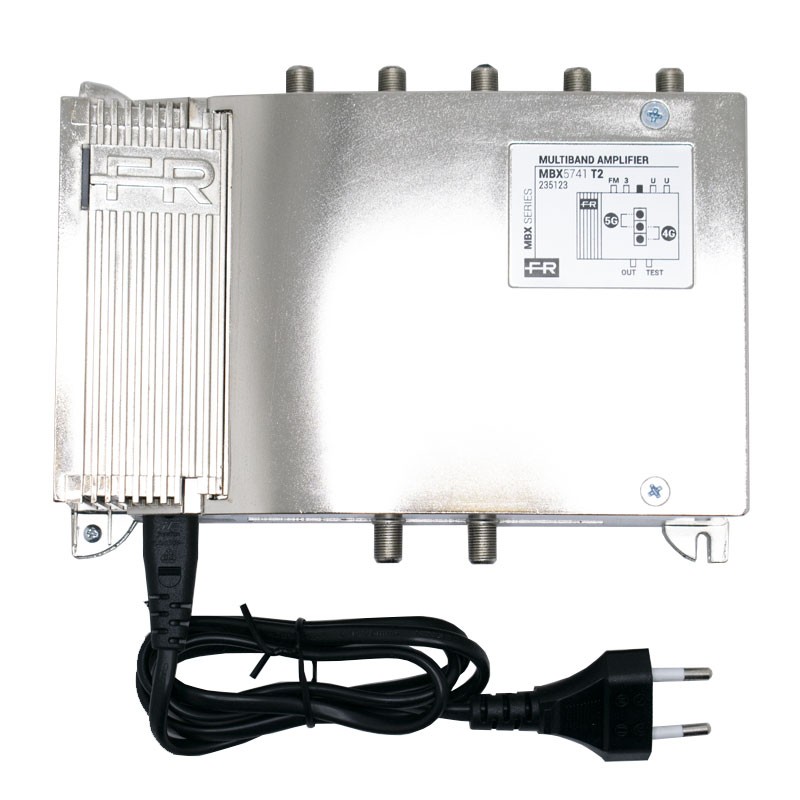

Fracarro MBX5741 T2 control unit with 4 inputs FM-III+DAB-UHF 40DB 235123
FRA 235123
8016978104864
Fracarro MBX5741 T2 with 4 inputs FM-III+DAB-UHF-UHF self-powered indoor with 43dB gain and output level up to 125dBV in the UHF band, separate band amplification, gain adjustments (0-20dB) independent for each input and low noise figure. T2 technology with innovative cutoff selection jumper for 4G LTE interference at 790MHz or 5G interference at 694MHz.
Fracarro MBX5741 T2 control unit with 4 inputs FM-III+DAB-UHF 40DB 235123
€135.50
Tax included
€135.50
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 52
: 14
Advantages:
- T2 jumper: innovative cutoff selection jumper for 4G LTE interference at 790MHz or 5G interference at 694MHz; built-in 4G and 5G LTE filters to maximize gain and signal level in distribution compared to using an external filter
- High gain and high output level make it ideal for use in medium to large centralized installations
- High shielding against LTE disturbances (LTE Free) thanks to the die-cast ZAMA frame with F connectors and metal cover with captive screws that covers the amplification section
- Adjustments placed inside, under the cover, to avoid tampering by third parties
- 30dB test socket available on all models
- Jumpers for the insertion of remote power supply on all inputs (100mA total), self-restoring short-circuit protection system and power supply status LEDs
- Switching power supply with high efficiency and low consumption
- Clamp for connecting the grounding of the TV system.
Features:
- IN 4
- Bands FM, III+DAB, UHF
- Gain (dB) 35, 38, 43
- Adjustment (dB) 20, 20, 20
- Noise figure (dB) 4.5, 4.5, 8.5
- Level Output (dBµV) 122, 125.
There are no reviews
Data sheet
- Type:
- Switchboards
- Version:
- 4IN/1OUT
