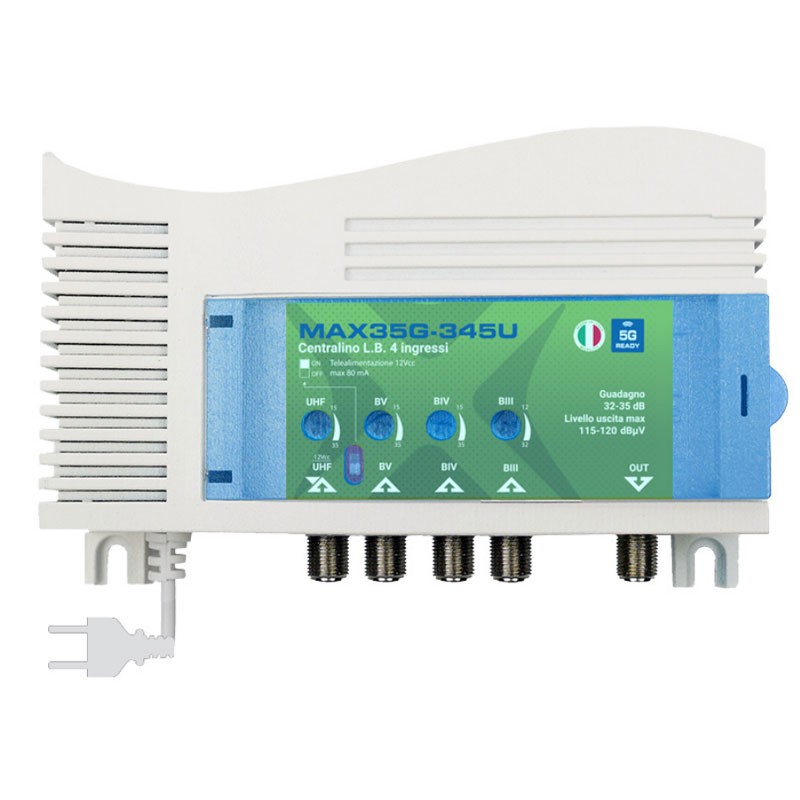

FTE self-powered switchboard 4 inputs BIII+DAB/IV/V/UHF 32/35db MAX35G-345U

Brand: Fte

Cod: FTE MAX35G-345U EAN: 8055271135892

FTE Maxital wideband self-powered switchboard with the following features:

Number of inputs: 4
Bands: BIII / IV / V / UHF
Frequency: 174 ÷ 240 / 470 ÷ 582 / 582 ÷ 694 / 470 ÷ 694
Number of outputs: 1
Equipped with 5G filter
Gain: dB 32 / 35 / 35
Gain adjustment: dB 20 / 20 / 20 / 20
Max. output level VHF/UHF: dBµV 115 / 120
Noise figure - dB BIII: <5 / UHF: <7
Power supply: 220/230V
Power consumption: 6 Watts
Type of amplification: VHF / UHF Separate Bands
Tele power supply 12 VDC - 80mA: On 1 UHF input
Type of amplifier chassis: metallic
Enclosure Type: ABS Flameproof - DIN rail mounting
Operating Temperature: -10/+50°C
Dimensions in mm: (W x H x D): 150 x 60 x 100
Weight: 350 grams approx.
Complies with standards: EN 50083-2 / EN 60065

FTE self-powered switchboard 4 inputs BIII+DAB/IV/V/UHF 32/35db MAX35G-345U

€85.40 Tax included

€85.40

FTE self-powered switchboard 4 inputs BIII+DAB/IV/V/UHF 32/35db MAX35G-345U

€85.40
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 2

Altre disponibilità dal produttore

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

DESCRIPTION: Self-powered Wideband switchboard with 4 inputs (BIII / IV / V / UHF) and Gain of 32/35dB with output level of 115/120dBµV.

Gain adjustment of 20dB on all bands and separate band amplification. Equipped with 5G filter.

STRENGTHS:

Separate Band Amplification
Gain of 32/35 dB
Maximum output level of 115/120 dBµV
RED Compliant shielded amplifier
Built-in LTE 5G 694MHz filter
CAG Automatic Gain Control
Short circuit and overvoltage protection
12Vdc and 80mA remote power supply for preamplifiers
Small dimensions 150x60x100mm
Flameproof ABS enclosure
Ready for mounting on DIN rail
Low consumption switching power supplies

APPLICATIONS: Wideband switchboard suitable for amplifying and mixing the signal from different antennas. Characterized by high split-band amplification and low noise figure. Features remote power supply to feed a possible preamplifier and Automatic Gain Control (CAG) to keep the output signal level constant.
